11
AVR-1910/1620/1610/790/590
4. CHASSIS BACK

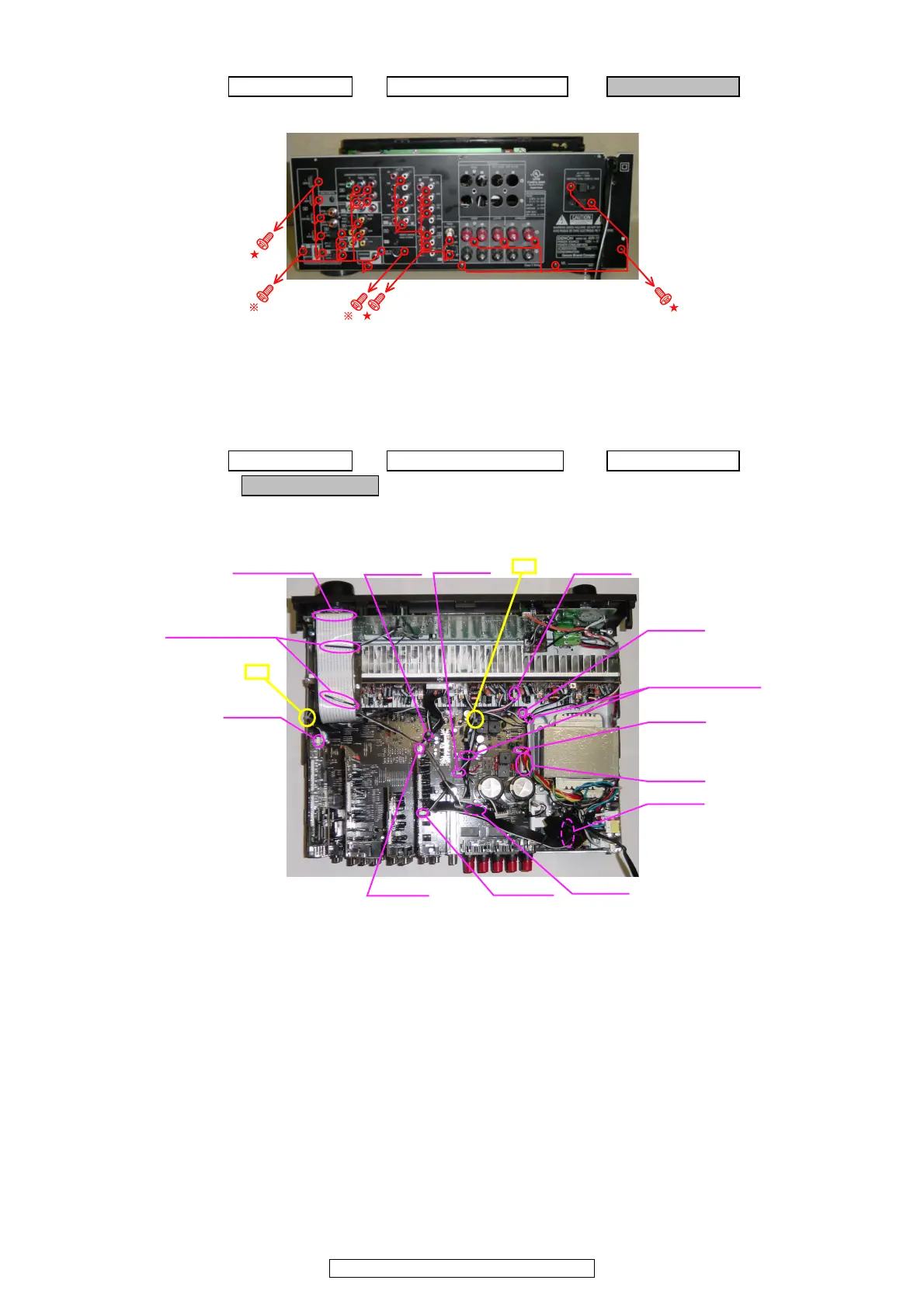

(1) Remove the screws.
5. PCB MAIN ASSY
(1) Cut the wire clamp band, then loose the style pin and Cord holder. Disconnect the connector wire and FFC Cable.
Proceeding : CABINET TOP → PCB SPEAKER ASSY → CHASSIS BACK
Direction of photograph: A
Proceeding : CABINET TOP → PCB SPEAKER ASSY → CHASSIS BACK
→ PCB MAIN ASSY
CP1700
CP1002
CP1004
CP1001
CP1003
Style pin : Loose
CP1001
CP1005
CP1501
CP1200
CP1000
CP1003
FFC Cable
Style pin : Loose
cut
cut
