Denon AVR-790 Service Manual

11
AVR-1910/1620/1610/790/590
4. CHASSIS BACK

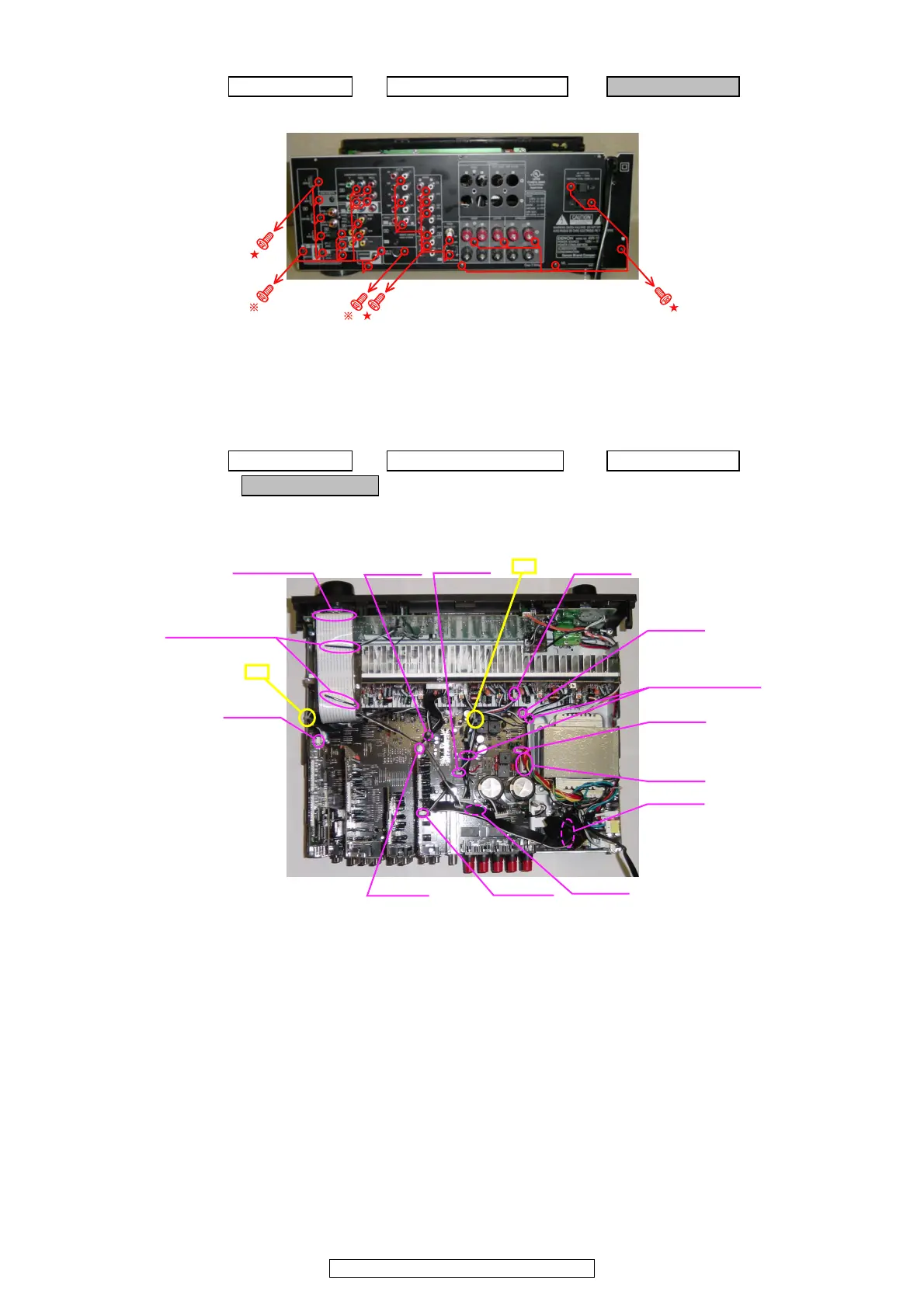

(1) Remove the screws.
5. PCB MAIN ASSY
(1) Cut the wire clamp band, then loose the style pin and Cord holder. Disconnect the connector wire and FFC Cable.
Proceeding : CABINET TOP → PCB SPEAKER ASSY → CHASSIS BACK
Direction of photograph: A
Proceeding : CABINET TOP → PCB SPEAKER ASSY → CHASSIS BACK
→ PCB MAIN ASSY
CP1700
CP1002
CP1004
CP1001
CP1003
Style pin : Loose
CP1001
CP1005
CP1501
CP1200
CP1000
CP1003
FFC Cable
Style pin : Loose
cut
cut

Denon AVR-790 Specifications

General

Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Video Upscaling	Yes (up to 1080p)
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
HDMI Switching	Yes
3D pass-through	Yes
Bluetooth	No
Wi-Fi	No
Ethernet	No
USB Port	No
Weight	23.1 lbs
Power Output	90 W per channel (8 ohms, 20 Hz-20 kHz, THD 0.08%)
Dolby Support	Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS Support	DTS, DTS-HD Master Audio, DTS-ES
Audyssey	Audyssey MultEQ
Audio D/A Converter	24-bit / 192 kHz
Frequency Response	10 Hz - 100 kHz
Inputs	4 HDMI, 4 composite, 3 component, 2 optical, Coaxial Digital Audio In, 6 analog audio
Outputs	Component video, composite video, HDMI
Audio Decoding	Dolby TrueHD, DTS-HD Master Audio
