Denon AVR-790 Service Manual

7
AVR-1910/1620/1610/790/590
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.

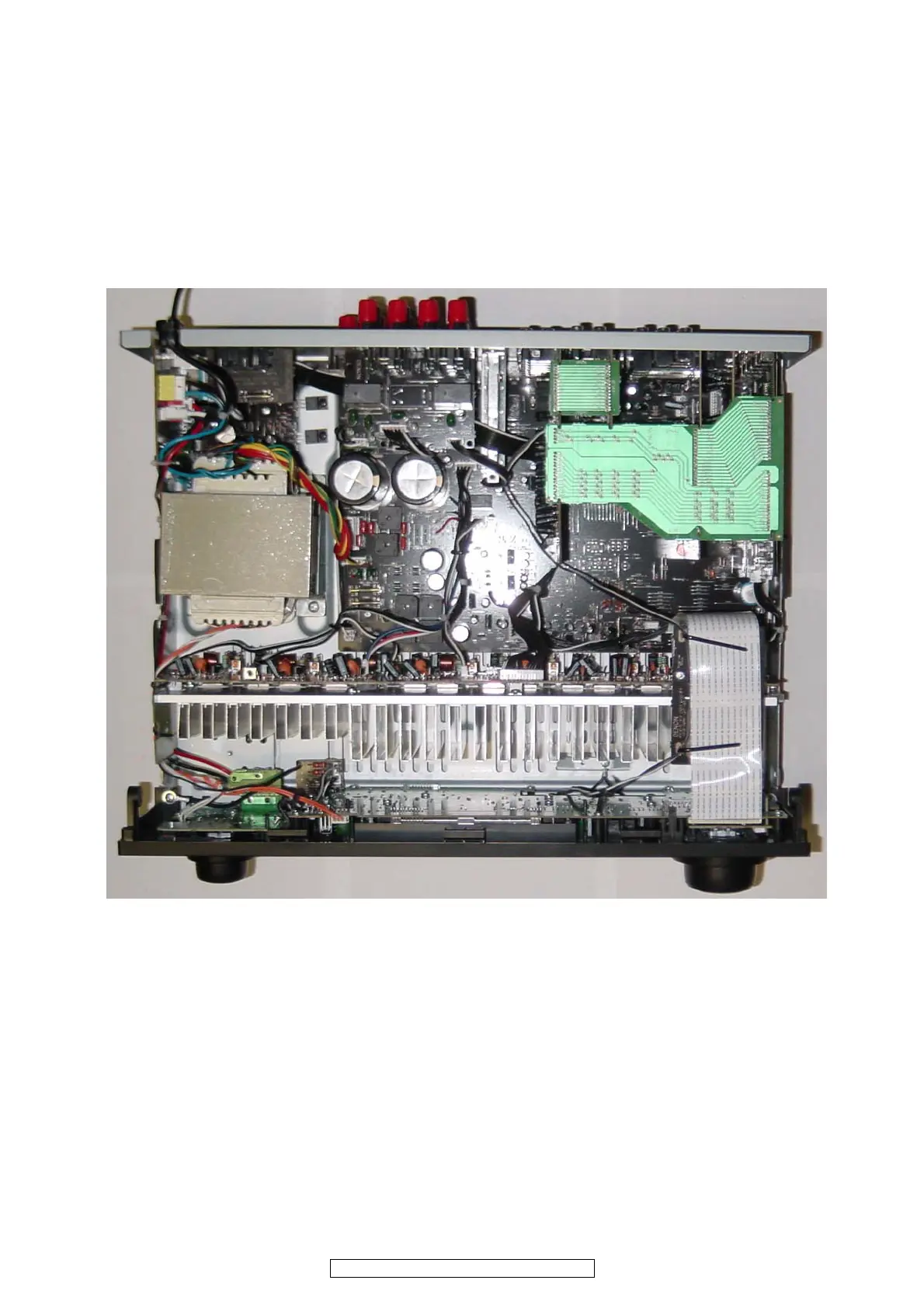

Wire arrangement viewed from the top
Back Panel side
Front Panel side

Denon AVR-790 Specifications

General

Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Video Upscaling	Yes (up to 1080p)
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
HDMI Switching	Yes
3D pass-through	Yes
Bluetooth	No
Wi-Fi	No
Ethernet	No
USB Port	No
Weight	23.1 lbs
Power Output	90 W per channel (8 ohms, 20 Hz-20 kHz, THD 0.08%)
Dolby Support	Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS Support	DTS, DTS-HD Master Audio, DTS-ES
Audyssey	Audyssey MultEQ
Audio D/A Converter	24-bit / 192 kHz
Frequency Response	10 Hz - 100 kHz
Inputs	4 HDMI, 4 composite, 3 component, 2 optical, Coaxial Digital Audio In, 6 analog audio
Outputs	Component video, composite video, HDMI
Audio Decoding	Dolby TrueHD, DTS-HD Master Audio
