AVR-1910/1620/1610/790/590
6. PCB POWER/POWER SUPPLY ASSY

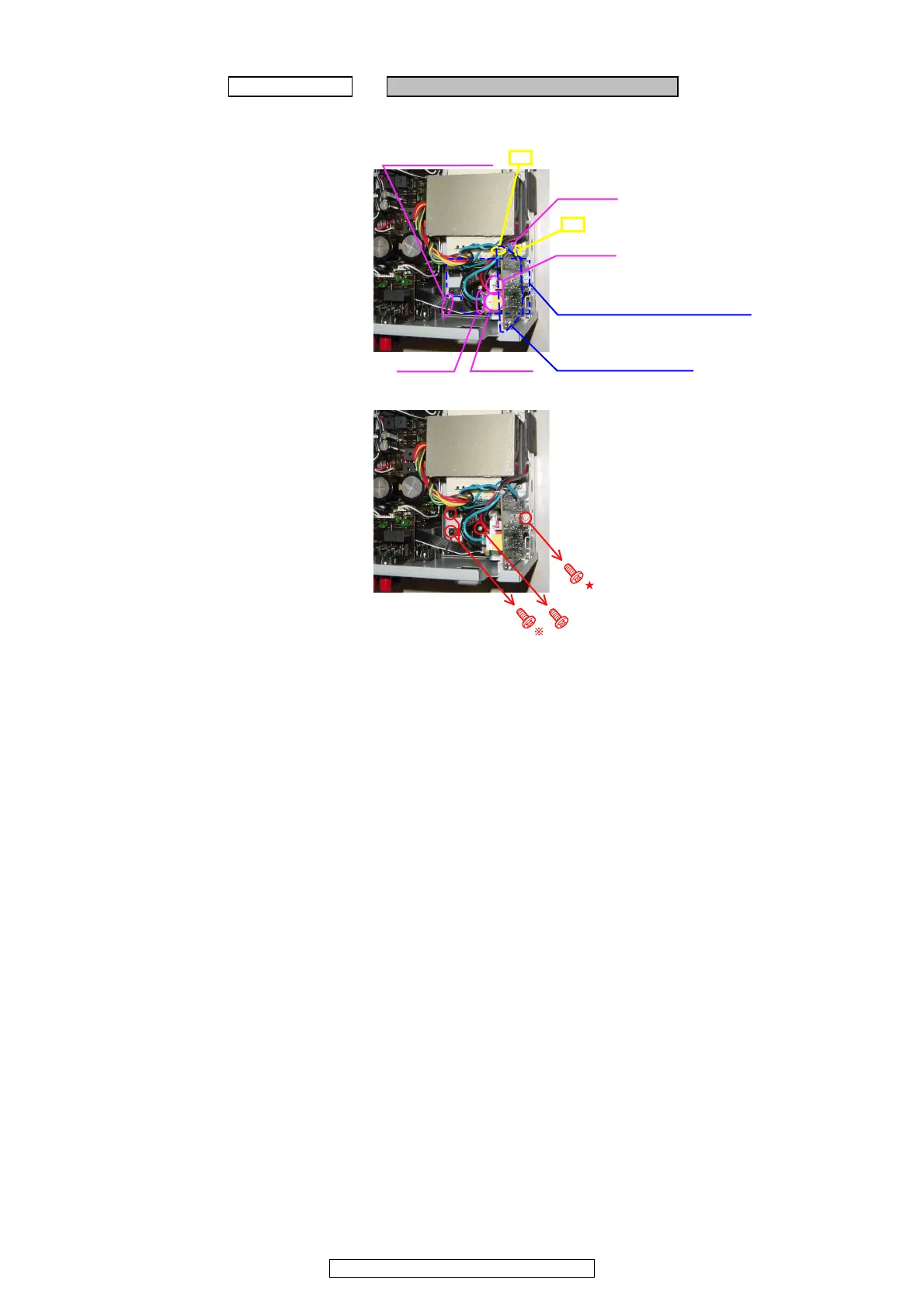

(1) Cut the wire clamp band, then loose the style pin and Cord holder. Disconnect the connector wire.
(2) Remove the screws.
Proceeding : CABINET TOP → PCB POWER/POWER SUPPLY ASSY
cut
cut
CP1705
CP1706
CP1704
CP1700
Style pin : Loose
PCB POWER ASSY
PCB POWER SUPPLY ASSY
ً
