Denon AVR-900 Service Manual

AN
A
a
eee
OS
-SOC
cae

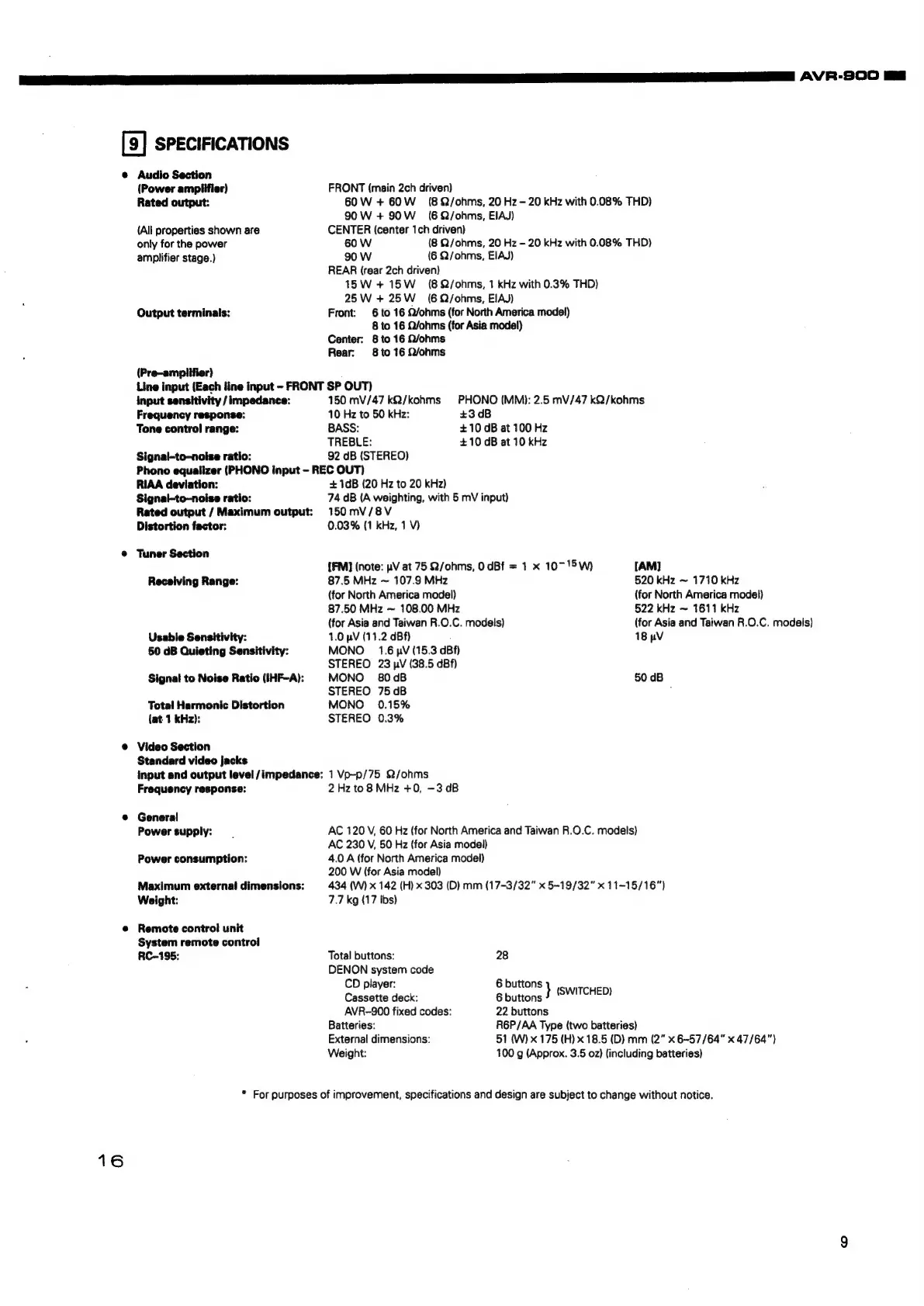

[9] SPECIFICATIONS
e Audio Section
(Power amplifier) FRONT (main 2ch driven)
Rated output: 60 W + 60W
90 W + SOW
(All properties shown are
(8 Q/ohms, 20 Hz - 20 kHz with 0.08% THD)
(6 Q/ohms, EIAJ)
CENTER (center 1ch driven)
only for the power 60 W (8 Q/ohms, 20 Hz - 20 kHz with 0.08% THD)
amplifier stage.) 90 W (6 Q/ohms, EIAJ)
REAR (rear 2ch driven)
15W+15W (8 2/ohms, 1 kHz with 0.3% THD)
25W + 25W (6 Q/ohms, EIAJ)
Output terminals: Front: 6 to 16 Q/ohms (for North America model)
8 to 16 Q/ohms (for Asia model)
Center: 8 to 16 Q/ohms
Rear: 8 to 16 Q/ohms
(Pre—amplifier)
Line input (Each line input - FRONT SP OUT)
input sensitivity /impedance: 150 mV/47 kQ/kohms PHONO (MM): 2.5 mV/47 kQ/kohms
Frequency response: 10 Hz to 50 kHz: +3 dB
Tone control range: BASS: +10 dB at 100 Hz
TREBLE: +10 dB at 10 kHz
Signal-to-noise ratio: 92 dB (STEREO)
Phono equalizer (PHONO input ~ REC OUT)
RIAA deviation: + 1dB (20 Hz to 20 kHz)
Signal-to-noise ratio: 74 dB (A weighting, with 5 mV input)
Rated output / Maximum output: 150 mV/8V
Distortion factor: 0.03% (1 kHz, 1 V)
@ Tuner Section
{FM} (note: pV at 75 Q/ohms, 0 dBf = 1 x 10715W) [AM]
Receiving Range: 87.5 MHz ~ 107.9 MHz 520 kHz ~ 1710 kHz
(for North America model) (for North America model)
87.50 MHz ~ 108.00 MHz 522 kHz ~ 1611 kHz
(for Asia and Taiwan R.O.C. models) (for Asia and Taiwan R.O.C. modeis)
Usable Sensitivity: 1.0 pV (11.2 dBf) 18 pV
50 dB Quieting Sensitivity: MONO 1.6 pV (15.3 dBf)
STEREO 23 pV (38.5 dBf)
Signal to Noise Ratio (IHF-A): MONO 80dB 50 dB
STEREO 75 dB ;
Total Harmonic Distortion MONO 0.15%
(at 1 kHz): STEREO 0.3%
@ Video Section
Standard video jacks
input and output level /impedance: 1 Vp-p/75 Q/ohms
Frequency response: 2 Hz to 8 MHz +0, -3 0B
@ General
Power supply: AC 120 V, 60 Hz (for North America and Taiwan R.O.C. models)
16
AC 230 V, 50 Hz (for Asia model)
Power consumption:
200 W (for Asia model)
Maximum external dimensions:
Weight: 7.7 kg (17 Ibs)
Remote control unit
System remote contro!
RC-195: Total buttons:
DENON system code
CD player:
Cassette deck:
AVR-800 fixed codes:
Batteries:
External dimensions:
Weight:
4.0 A (for North America model)
434 (W) x 142 (H) x 303 (D) mm (17-3/32" x 5-19/32" x 11-15/16")
28
ened } (switcHeD)
22 buttons
R6P/AA Type (two batteries)
51 (W) x 175 (H) x 18.5 (D) mm (2” x 6-57/64" x 47/64")
100 g (Approx. 3.5 02) (including batteries)
* For purposes of improvement, specifications and design are subject to change without notice.

Denon AVR-900 Specifications

General

Input sensitivity	2.5mV (MM), 150mV (line)
Output	150mV (line)
Tuning range	FM
Signal to noise ratio	86dB (MM)
Speaker load impedance	16Ω
