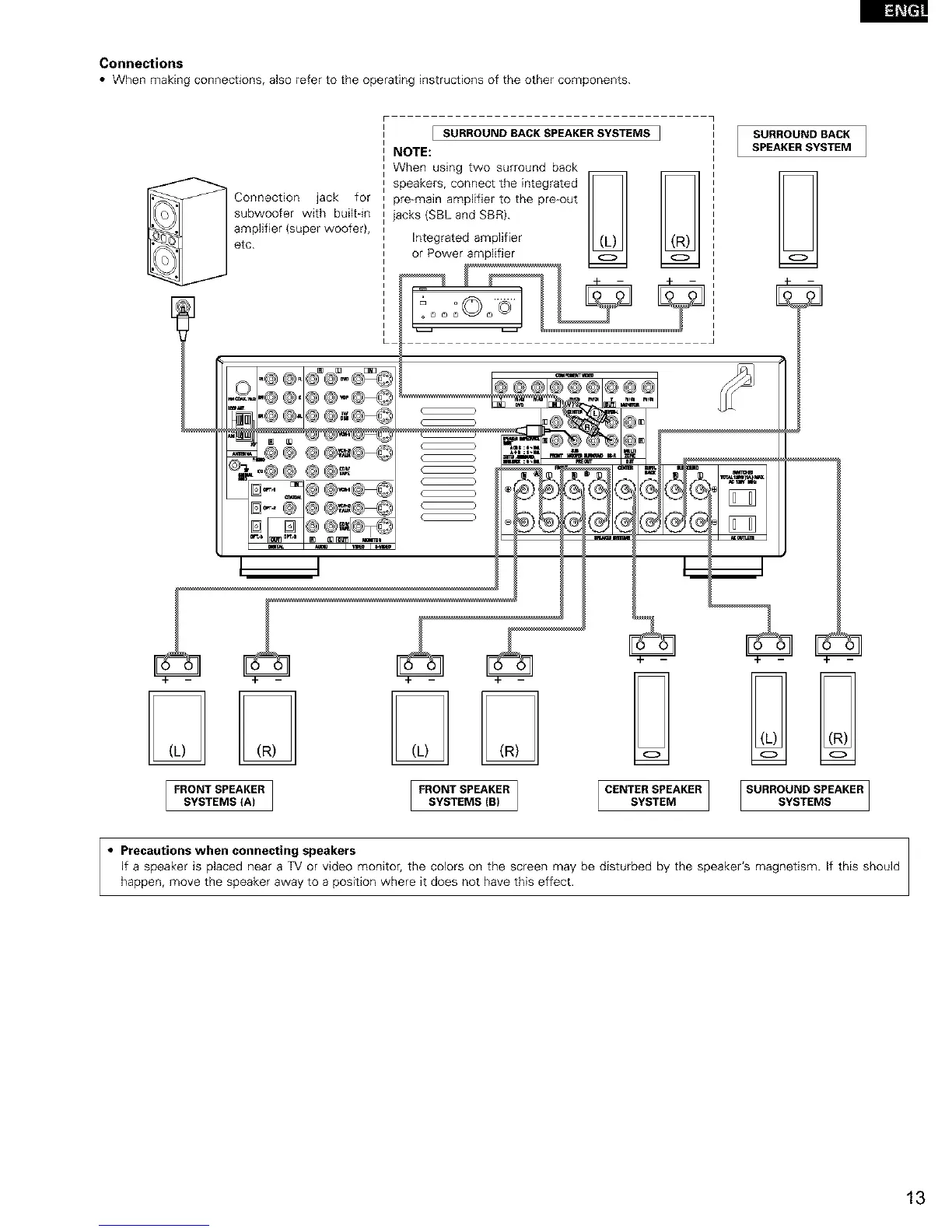

Connections
• When making connections, also refer to the operating instructions of the other components.
_ Connection jack for
subwoofer with buik-in
amplifier (super woofer),
etc.
[ SURROUND SACK SPEAKERSYSTEMS ]
NOTE:
When using two surround back
o
- - %._
m
SURROUND BACK
SPEAKER SYSTEM
7
G
FRONT SPEAKER FRONT SPEAKER [ CENTERSPEAKER ] SURROUND SPEAKER
SYSTEMS (A) SYSTEMS (B) SYSTEM SYSTEMS
• Precautions when connecting speakers
If a speaker is placed near a TV or video monitor, the colors on the screen may be disturbed by the speaker's magnetism. If this should
happen, move the speaker away to a position where it does not have this effect.
To Next Page
