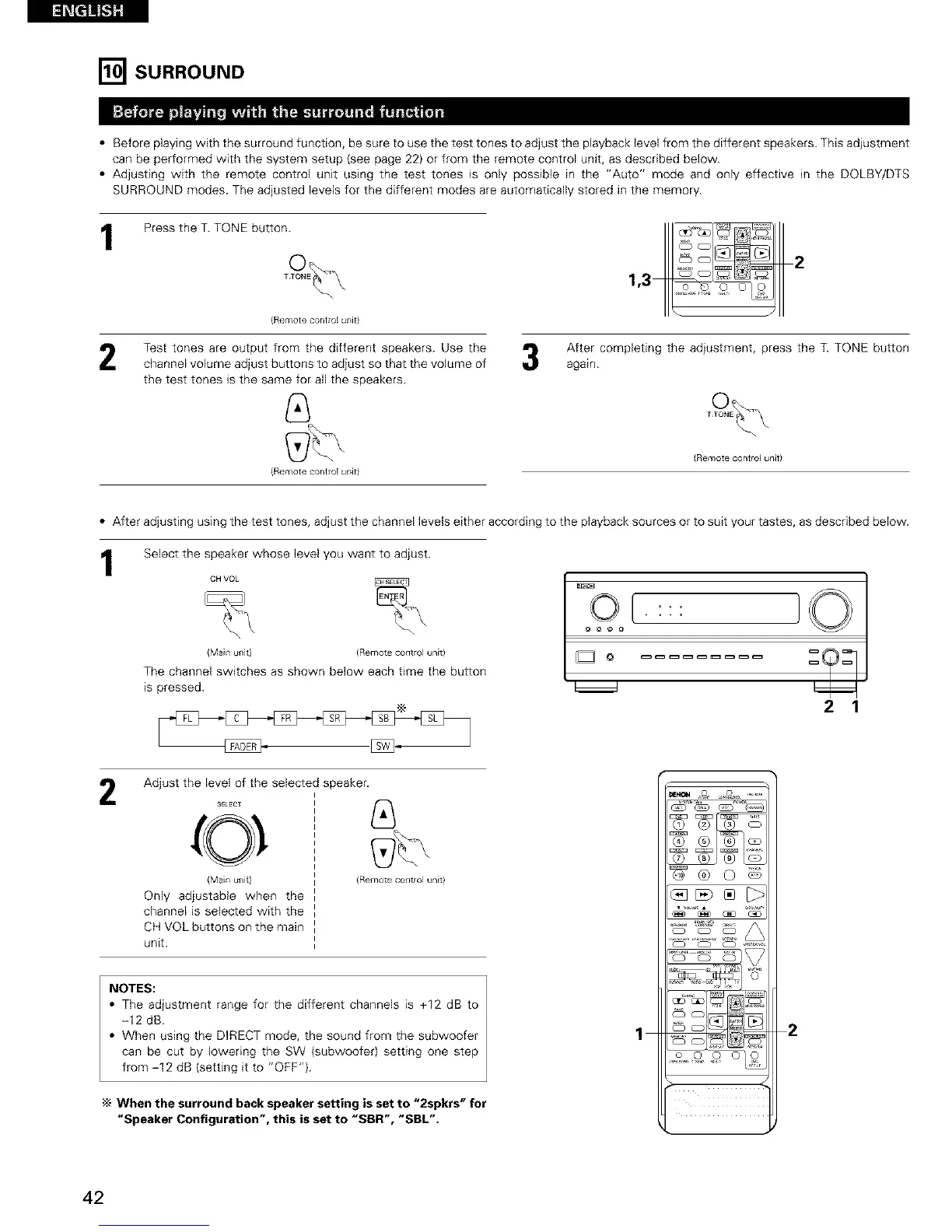

I_SURROUND
• Before playing with the surround function, be sure to use the test tones to adjust the playback level from the different speakers. This adjustment
can be performed with the system setup (see page 22) or from the remote control unit, as described below.
• Adjusting with the remote control unit using the test tones is only possible in the "Auto" mode and only effective in the DOLBY/DTS
SURROUND modes. The adjusted levels for the different modes are automatically stored in the memory.
Press the T. TONE button.
2
{Remote contlo[ unJtl
Test tones are output from the different speakers. Use the
channel volume adjust buttons to adjust so that the volume of
the test tones is the same for all the speakers.
{Remote control unitl
After completing the adjustment, press the T. TONE button
again.
{Remote control unit}
• After adjusting using the test tones, adjust the channel levels either according to the playback sources or to suit your tastes, as described below.
Select the speaker whose level you want to adjust.
CH VOL
{Main unit) (Remote control unit)
The channel switches as shown below each time the button
is pressed.
OL::: )
D_
2 1
2
Adjust the level of the selected speaker.
SELECT
(Main unit)
Only adjustable when the
channel is selected with the
CH VOL buttons on the main
unit.
S
(Remote control unit)
NOTES:
• The adjustment range for the different channels is +12 dB to
-12 dB.
• When using the DIRECT mode, the sound from the subwoofer
can be cut by lowering the SW (subwoofer) setting one step
from -12 dB (setting it to "OFF").
When the surround back speaker setting is set to "2spkrs" for
"Speaker Configuration", this is set to "SBR", "SBL".
1
42
