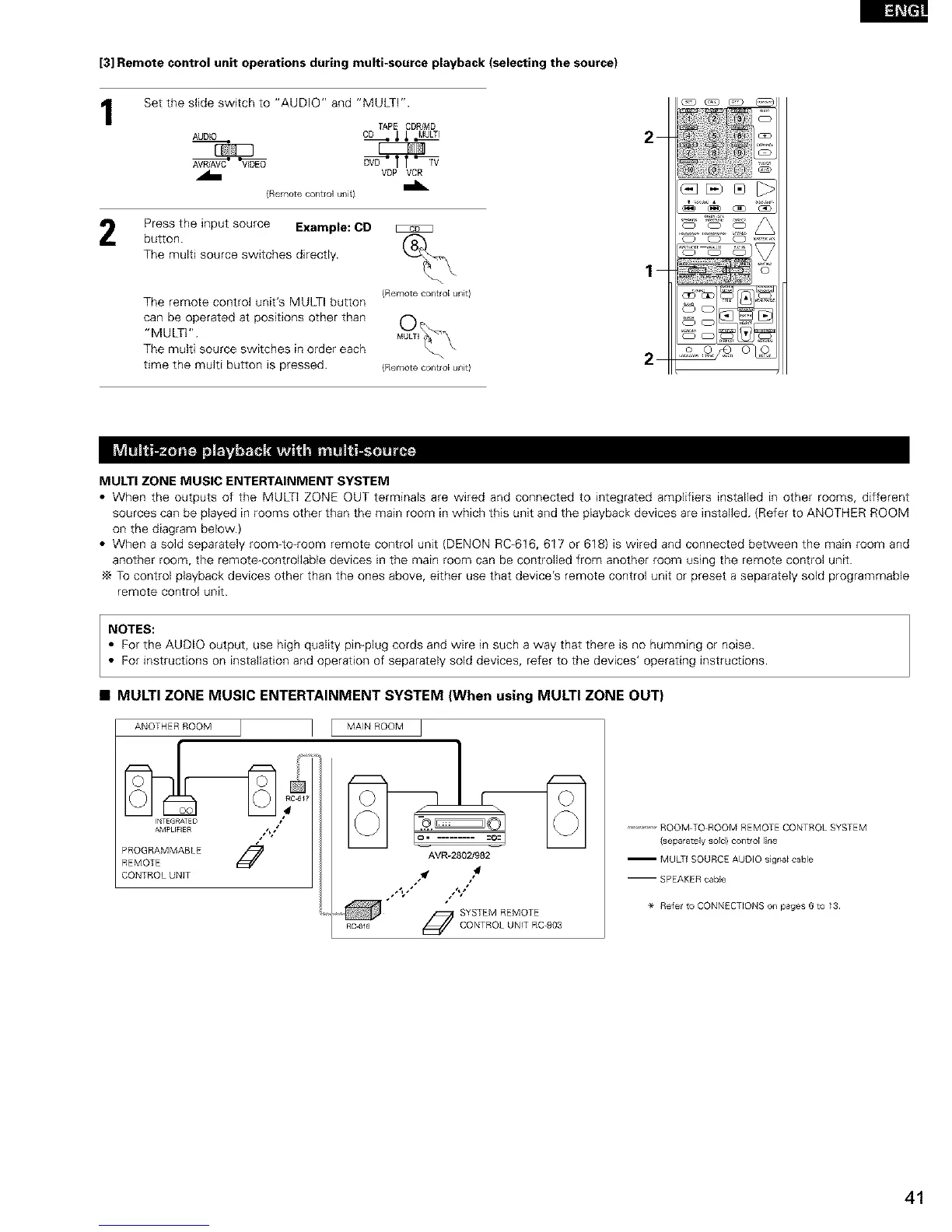

[3] Remote control unit operations during multi-source playback (selecting the source)
1
Set the slide switch to "AUDIO" and "MULTI".
TAPE CDR_D
AUDIO CD_ ,_L MULT
_ DV_ Tf "_
VDP VCR
{Remote contlol unit}
Press the input source Example: CD
button. (_,_
The multi source switches directly.
{Remote contro_ unit}
The remote control unit's MULTI button
can be operated at positions other than
"MULTi".
The multi source switches in order each
time the multi button is pressed.
{Remote control unJtl
1
2
MULTI ZONE MUSIC ENTERTAINMENT SYSTEM
• When the outputs of the MULTi ZONE OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different
sources can be played in rooms other than the main room in which this unit and the playback devices are installed. (Refer to ANOTHER ROOM
on the diagram below.)
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the main room and
another room, the remote-controllable devices in the main room can be controlled from another room using the remote control unit.
To control playback devices other than the ones above, either use that device's remote control unit or preset a separately sold programmable
remote control unit.
NOTES:
• For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices' operating instructions.
• MULTI ZONE MUSIC ENTERTAINMENT SYSTEM (When using MULTI ZONE OUT}
ANOTHER ROOM
_NTEGRATED •t
AMPLIF_E_ ,,
PROGRAMMABLE
REMOTE
CONTROL UNIT
L MAIN ROOM
AVR-2802fg82
a
,5, J •
oS T O2 ;'OT
ROOM TO ROOM REMOTE CONTROL SYSTEM
{separately sold) control Erie
MULTI SOURCE AUDIO signa_ cable
-- SPEAKER cable
* Refer to CONNECTIONS on pages 6 to /3
