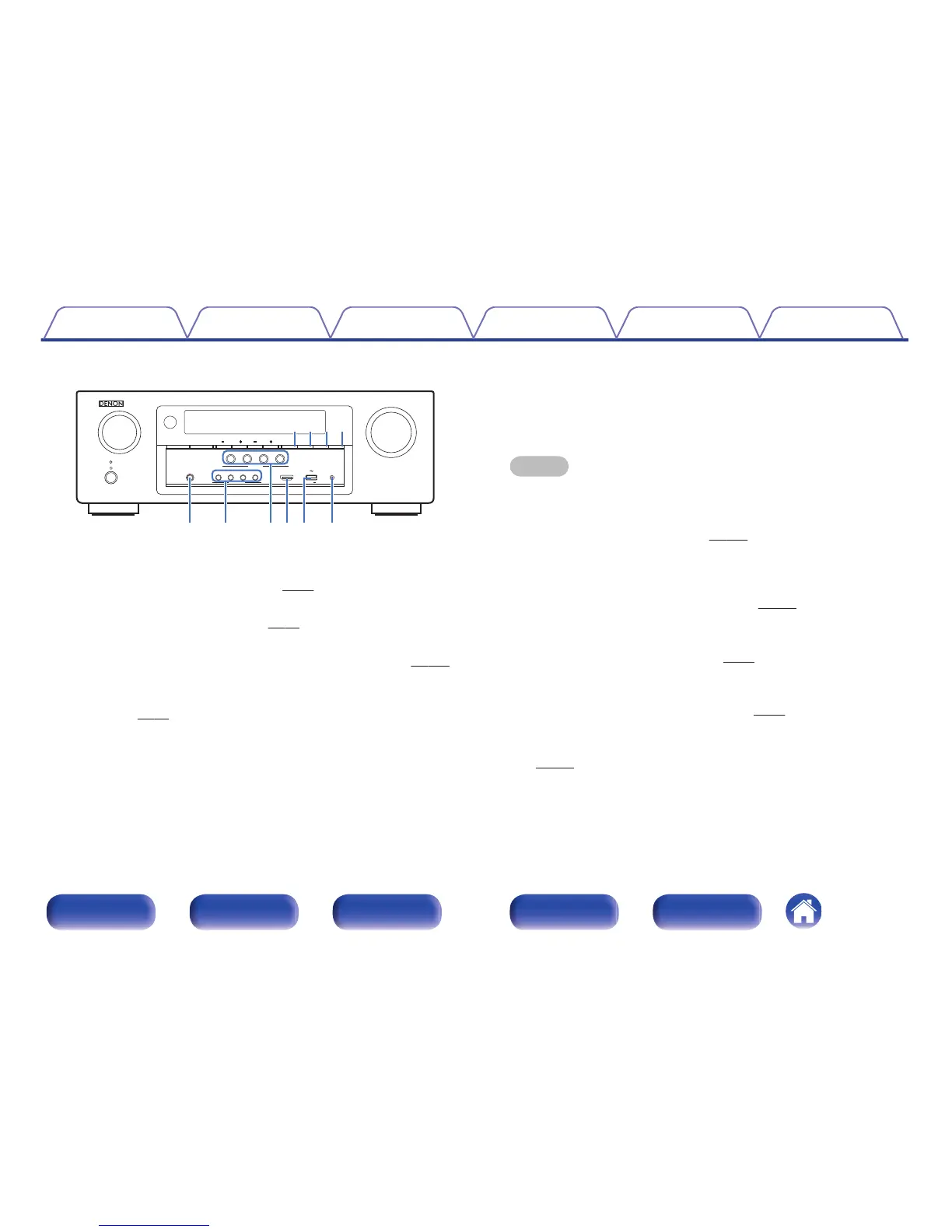

Denon AVR-S700W User Manual

.
MASTER VOLUME
SOURCE SELECT
BAND MODE DIMMER STATUSTUNEZONE 2 ON/OFF ZONE 2 SOURCE
TUNER
PRESET CH
CBL/SAT
3
4
ONLINE
1
GAME
2
DVD/Blu-ray
QUICK SELECT
SETUP MICAUX - HDMI
5V/1A
PHONES
MOVIE MUSIC GAME PURE
SOUND MODE
W
0
Q
8
Q
7
Q
6
Q
9
Q
5
Q1Q2Q3Q4
K
Reception band select button (BAND)
This switches the reception band. (v
p. 68)
L
Tune mode select button (MODE)
This switches the tuning mode. (v p. 70)
M
DIMMER button
Each press of this switches the brightness of the display. (v
p. 183)
N
STATUS button
Each press of this switches the status information that is shown on the
display. (v
p. 56)
O
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
P
SOUND MODE buttons
These select the sound mode. (v
p. 111)
Q
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v
p. 125)
R
AUX-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v
p. 43)
S
USB port
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (v
p. 44)
T
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v
p. 160)
Contents
Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Denon AVR-S700W Specifications

General

Channels	7.2
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Signal-To-Noise Ratio	98 dB
Input Impedance	47 kOhms
Input Sensitivity	200 mV
HDMI Inputs	6
HDMI Outputs	1
Composite Inputs	2
Component Inputs	2
Analog Inputs	4
Composite Output	1
Component Output	1
Wi-Fi	Yes
Bluetooth	Yes
AirPlay	Yes
DLNA	Yes
HDMI Pass-Through	Yes
HDMI Switching	Yes
3D Technology	Yes
Digital Inputs	2 Optical
Supported Audio Formats	DTS-HD Master Audio, Dolby TrueHD
Supported Video Formats	4K, 3D
Additional Features	Audyssey MultEQ
Tuner Presets	56
Dimensions	17.1 x 13.3 x 6.6 inches
