Denon AVR-S700W User Manual

o

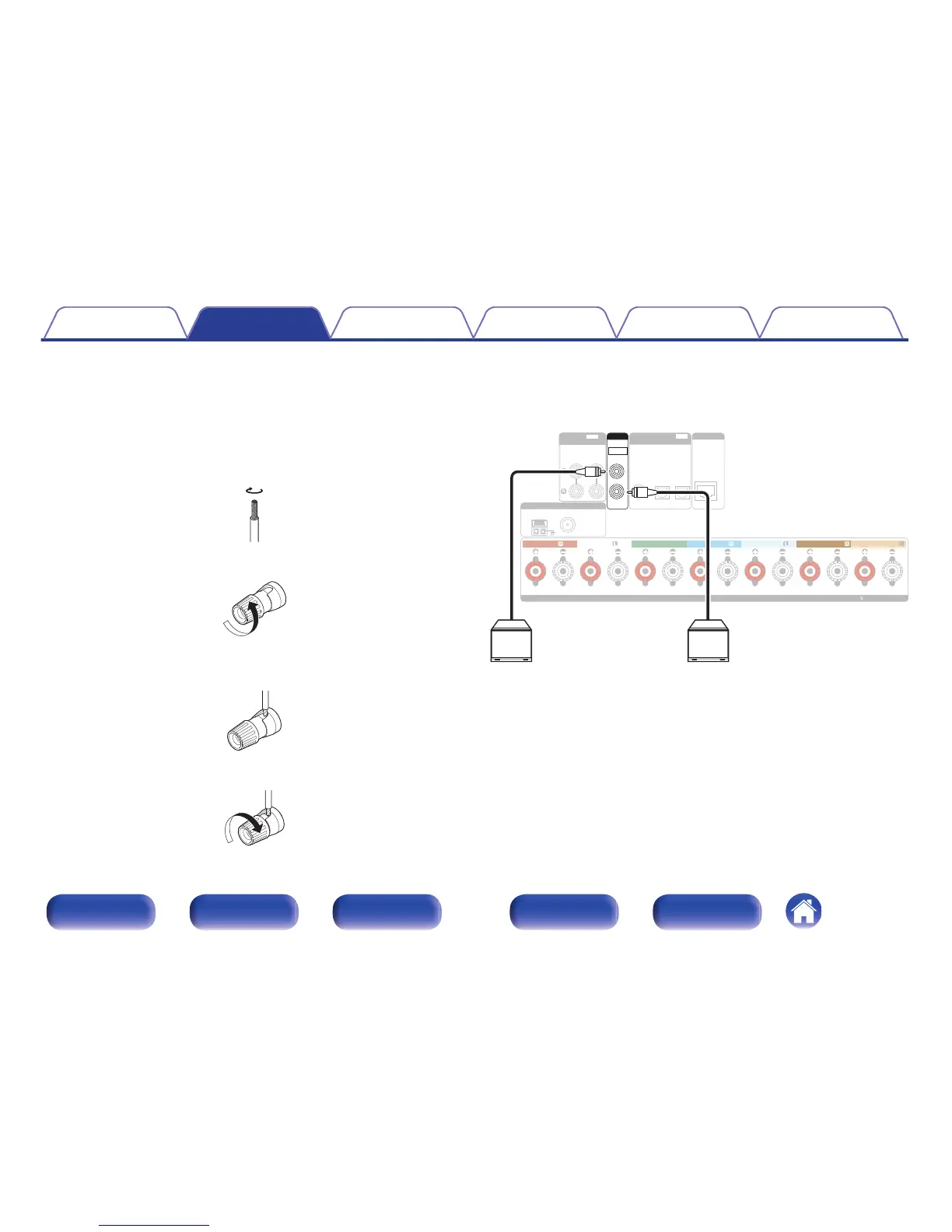

Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then either twist the core wire
tightly or terminate it.
.
2
Turn the speaker terminal counterclockwise to loosen it.
.
3
Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
4
Turn the speaker terminal clockwise to tighten it.
.
o
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer. Two subwoofers can
be connected to this unit.
The same signal is output from the respective subwoofer terminals.
.
ANTENNA
NETWORK
CBL/SAT
MEDIA
PLAYER
TV AUDIO
12
COAXIAL OPTICAL
IN
DIGITAL AUDIO
(
ASSIGNABLE
)
75Ȑ
FMAM
AUDIO
(
ASSIGNABLE
)
IN
MEDIA
PLAYER
12
CBL/SAT
IMPEDANCE : 4
㹼
16
Ȑ
SPEAKERS
ASSIGNABLE
CLASS 2 WIRING
SURROUND
FRONT FRONT CENTER SURROUND SURROUND BACK SURROUND BACK
PRE OUT
1
2
SUBWOOFER
SW1 SW2
