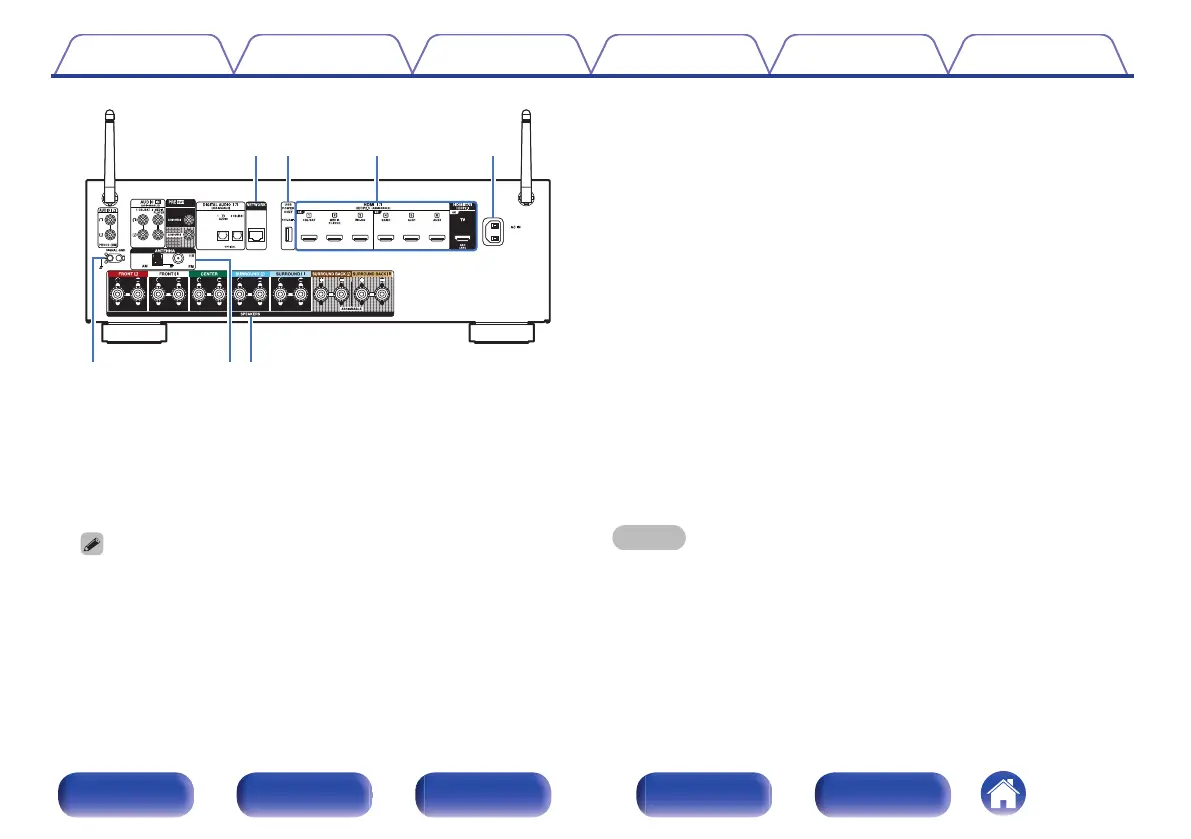

E
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 59)
F
USB port (POWER SUPPLY)
Can be used to power streaming media players, etc.
0
Use a device’s supplied AC adapter when a power supply of 5 V/1.5 A or more
is required.
0
Connect to the USB port on the front panel to play content from a USB
memory device.
G
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC / eARC” (v p. 48)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC” (v p. 49)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 51)
0
“Connecting a media player” (v p. 52)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 53)
0
“Connecting a game console or player device compatible with
8K” (v p. 54)
H
AC inlet (AC IN)
Used to connect the power cord. (v p. 61)
I
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 55)
J
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 57)
K
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 33)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
