Denon AVR-S770H User Manual

7

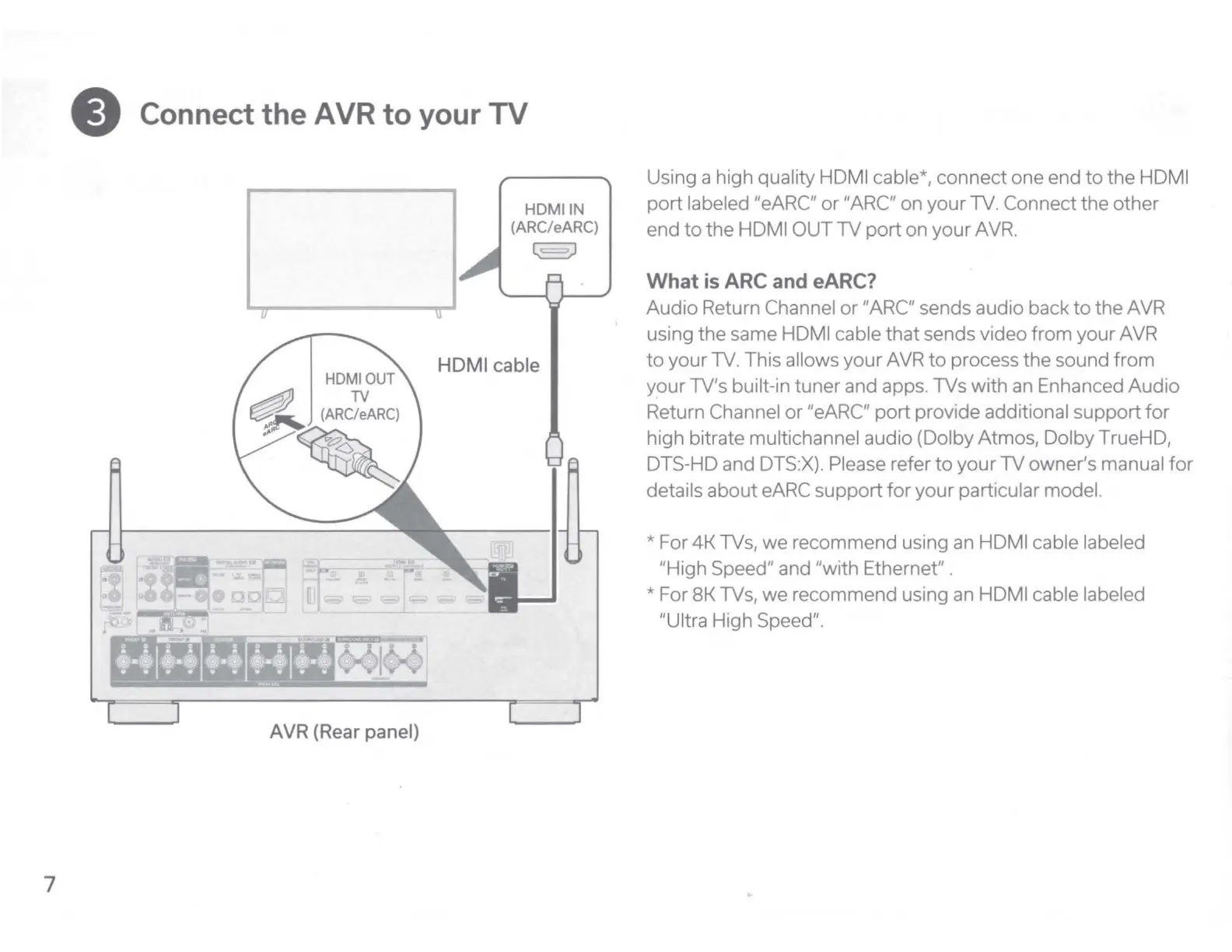

e Connect the AVR to your TV
HDMIO
TV
.~ (ARC/eARC)
~<>
AVR {Rear panel)
HDMIIN
(ARC/eARC)
l=)
HDMI cable
Using a high quality HDMI cable*, connect one end to the HDMI
port labeled "eARC" or "ARC" on your TV. Connect the other
end to the HDMI OUT TV port on your AVR.
What is ARC and eARC?
Audio Return Channel or "ARC" sends audio back to the AVR
using the same HDMI cable that sends video from your AVR
to your TV. This allows your AVR to process the sound from
your TV's built-in tuner and apps. TVs with an Enhanced Audio
Return Channel or "eARC" port provide additional support for
high bitrate multichannel audio (Dolby Atmos, Dolby TrueHD,
DTS-HD and DTS:X). Please refer to your TV owner's manual for
details about eARC support for your particular model.
* For 4K TVs, we recommend using an HDMI cable labeled
"High Speed" and "with Ethernet" .
* For BK TVs, we recommend using an HDMI cable labeled
"Ultra High Speed".

Denon AVR-S770H Specifications

General

Channels	7.2
HDMI Inputs	6
Dolby Atmos	Yes
DTS:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
HEOS Built-in	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
4K/120Hz Pass-through	Yes
8K/60Hz Pass-through	Yes
Total Harmonic Distortion	0.08% (20Hz-20kHz)
Input Sensitivity/Impedance	200mV/47k ohms
Signal-to-Noise Ratio	98 dB (IHF-A weighted, Direct mode)
Ethernet Port	Yes
HDR Support	HDR10+, Dolby Vision, HLG
Frequency Response	10Hz-100kHz
USB Port	Yes
HDMI Outputs	1
