A

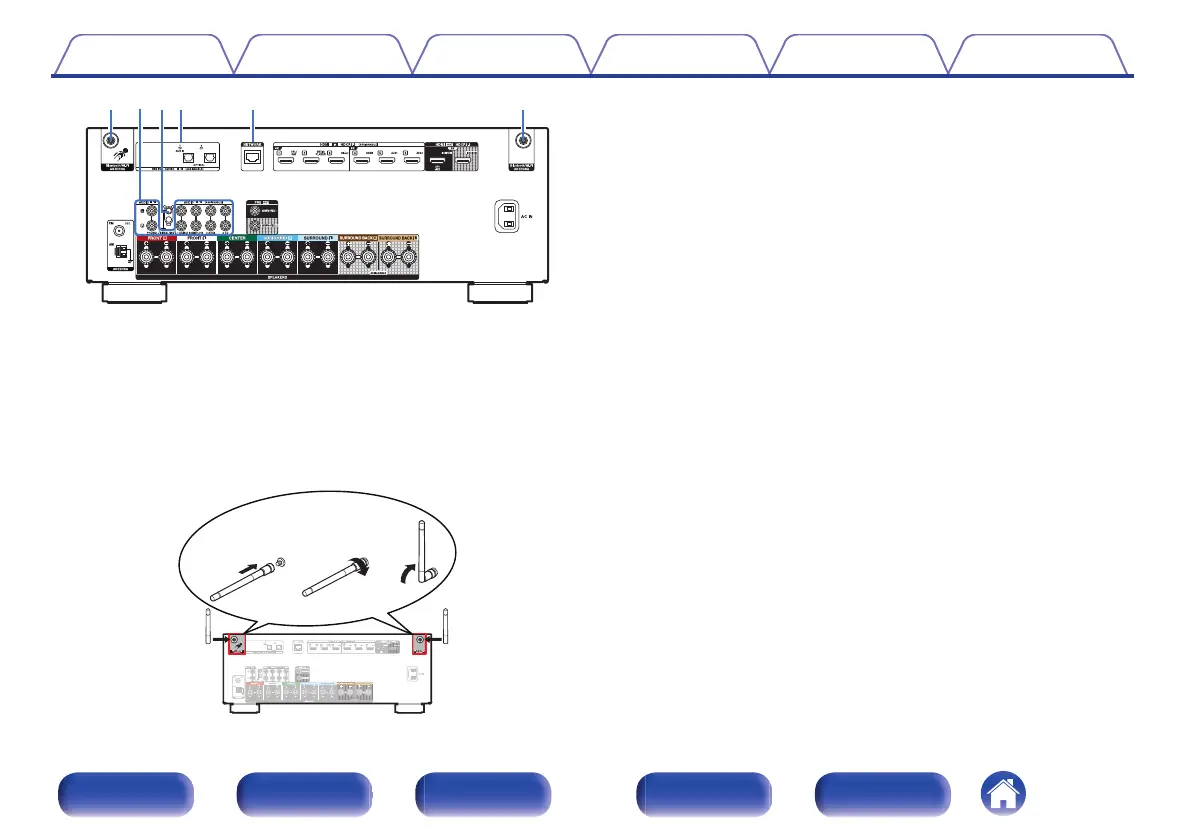

Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v p. 62)
A
Place the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
B
Turn clockwise until the antennas is fully connected.
C
Rotate the antenna upwards for best reception.
B
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 53)
0
“Connecting a media player” (v p. 54)
0
“Connecting a turntable” (v p. 57)
C
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v p. 57)
D
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC” (v p. 51)
E
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 61)
