Denon AVR-S970H User Manual

o
About the cable labels (supplied) for channel
identification
The channel display section for speaker terminals on the rear panel is
color-coded for each channel to be identifiable.
Attach the cable label corresponding to each speaker to each speaker
cable.
This makes it easy to connect the correct cable to the speaker
terminals on the rear panel.

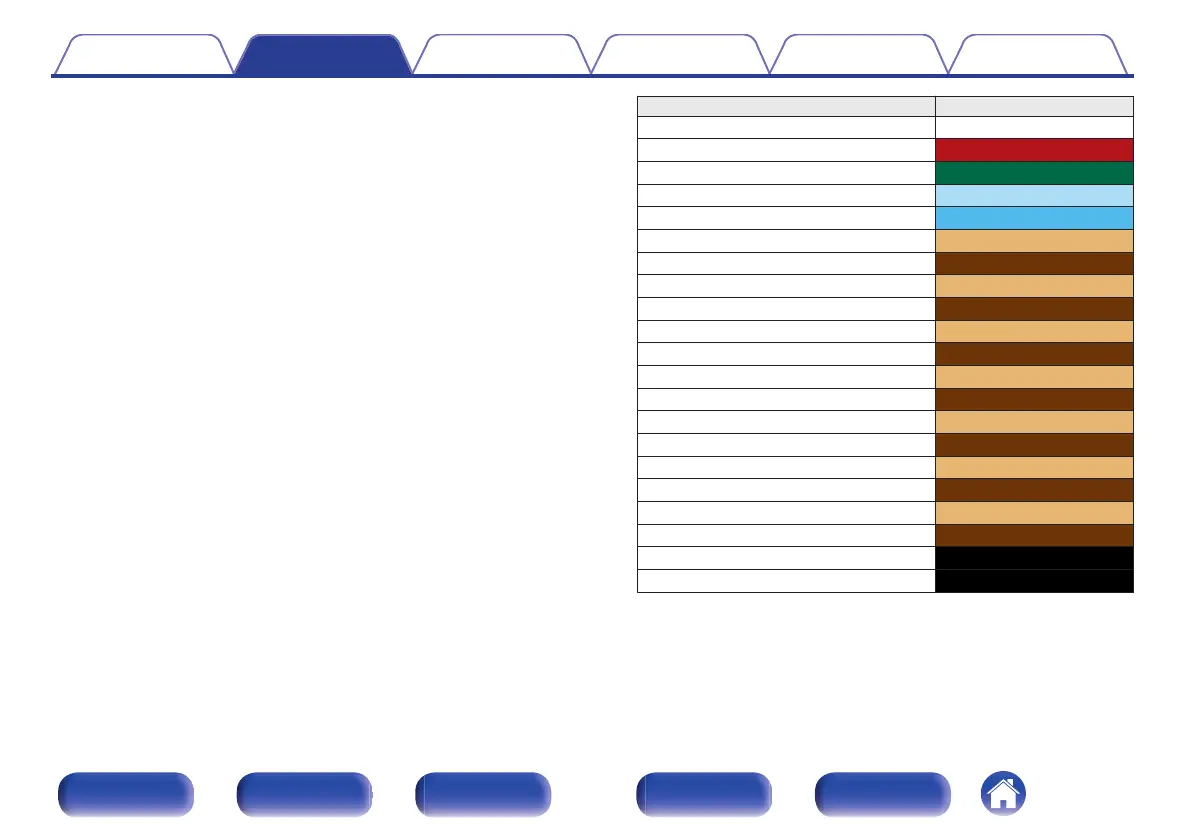

Speaker Color
FRONT L White
FRONT R Red
CENTER Green
SURROUND L Light Blue
SURROUND R Blue
SURROUND BACK L Beige
SURROUND BACK R Brown
FRONT HEIGHT L Beige
FRONT HEIGHT R Brown
ZONE2 L Beige
ZONE2 R Brown
TOP FRONT L Beige
TOP FRONT R Brown
TOP MIDDLE L Beige
TOP MIDDLE R Brown
FRONT DOLBY L Beige
FRONT DOLBY R Brown
SURROUND DOLBY L Beige
SURROUND DOLBY R Brown
SUBWOOFER 1 Black
SUBWOOFER 2 Black
Contents Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index

Denon AVR-S970H Specifications

General

Receiver type	-
Pre-out channels	0.2
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	85 W
HDMI in	6
Audio (L/R) in	4
USB ports quantity	1
Digital audio coaxial in	0
Digital audio optical in	2
Audio (L/R) out	7
Audio formats supported	AAC, ALAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Optical drive included	No
Display	VFD
HDCP version	2.3
Product color	Black
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
Number of products included	1 pc(s)
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Package weight	11500 g

Weight and Dimensions

Depth	341 mm
Width	434 mm
Height	167 mm
Weight	9500 g
