Height speakers Layout
0

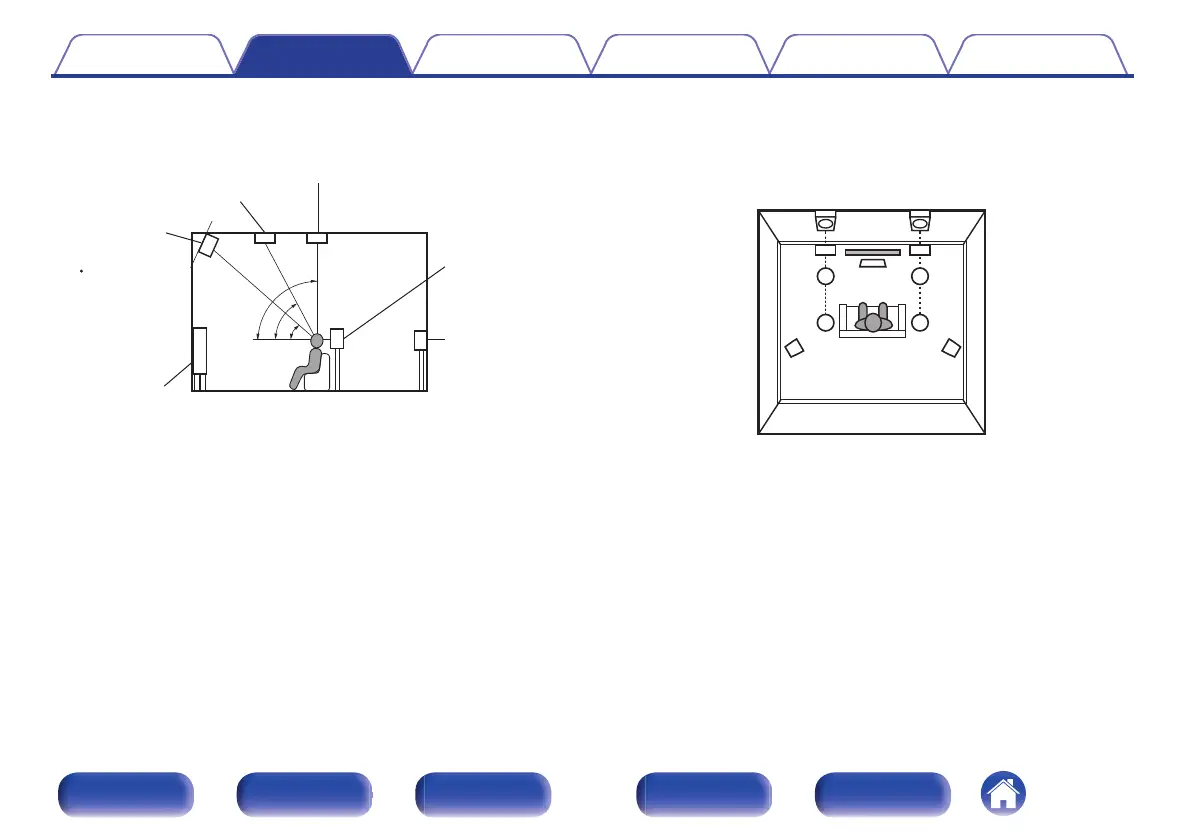

Use the following illustration as a guide for the installation location of each height speaker. You do not have to match them exactly.
z
1
z2
z3
Front height
speaker
z1: 30° – 45° z2: 30° – 55°
z3: 65° – 100°
GViewed from the sideH
Top middle speaker
Top front speaker
Front speaker
Surround
speaker
Surround
back
speaker
Point slightly
downwards
SL
FHL
TML
TFL
FL
SR
FHR
TMR
TFR
FR
C
Height speakers layout
GViewed from the topH
Contents Connections Playback Settings Tips Appendix
34
Front panel Display Rear panel Remote Index

Denon AVR-S970H Specifications

General

Receiver type	-
Pre-out channels	0.2
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	85 W
HDMI in	6
Audio (L/R) in	4
USB ports quantity	1
Digital audio coaxial in	0
Digital audio optical in	2
Audio (L/R) out	7
Audio formats supported	AAC, ALAC, FLAC, MP3, WAV, WMA
Supported radio bands	AM, FM
Optical drive included	No
Display	VFD
HDCP version	2.3
Product color	Black
Audio decoders	DTS Virtual:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Volume control	Rotary
Number of products included	1 pc(s)
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Package weight	11500 g

Weight and Dimensions

Depth	341 mm
Width	434 mm
Height	167 mm
Weight	9500 g
