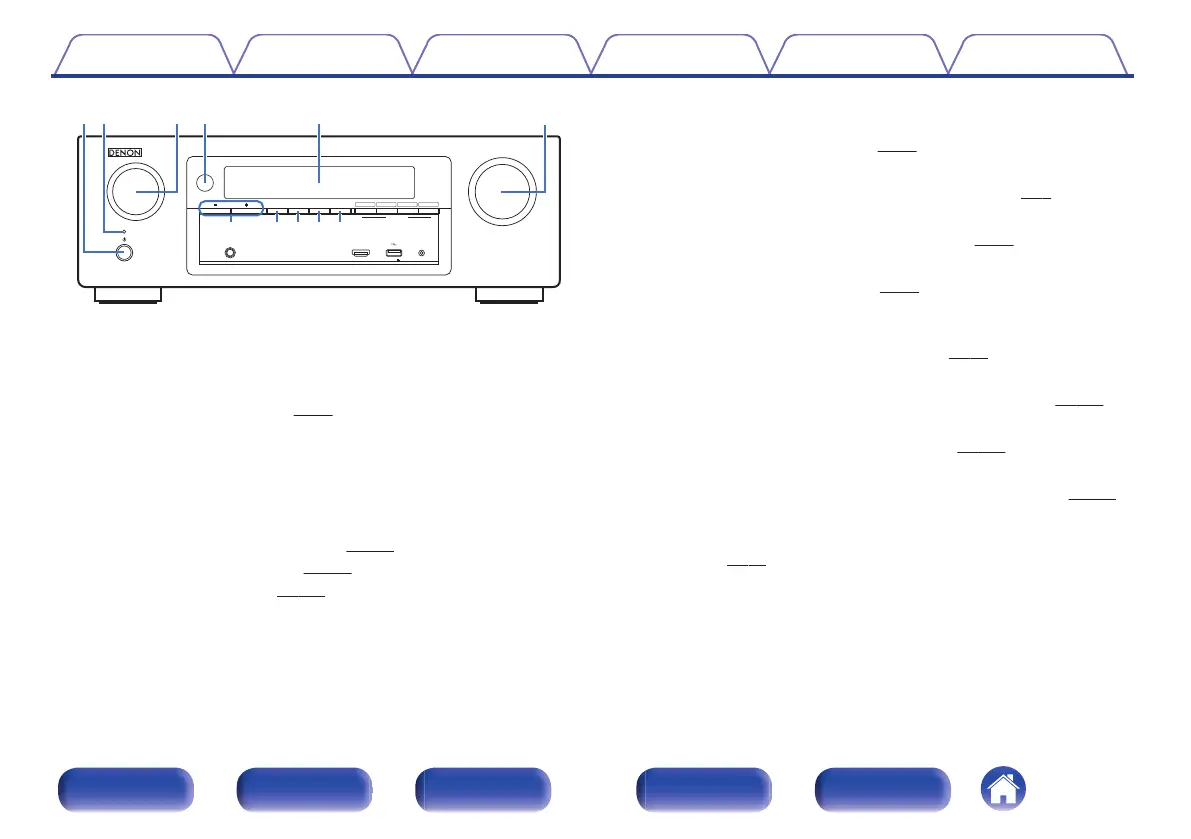

Denon AVR-X1100W User Manual

.
QUICK SELECT
MASTER VOLUME
SOURCE SELECT
ZONE2
ON/OFF
ZONE2
SOURCE
DIMMER STATUS
TUNER
PRESET CH
DVD/Blu-ray ONLINE
MEDIA
PLAYER
CBL/SAT
3214
PHONES
SETUP MICAUX - HDMI
5V/1A
q
uioQ0Q1
wer t y
A
Power operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v
p. 54)
B
Power indicator
This is lit as follows according to the power status:
0
Green : Power on
0
Off: Normal standby
0
Red:
0
When “HDMI PassThrough” (v
p. 145) is set to “On”
0
When “HDMI Control” (v p. 146) is set to “On”
0
When “IP Control” (v p. 175) is set to “Always On”
C
SOURCE SELECT knob
This selects the input source. (v p. 54)
D
Remote control sensor
This receives signals from the remote control unit.
(
v
p. 8)
E
Display
This displays various pieces of information.
(v p. 16)
F
MASTER VOLUME knob
This adjusts the volume level.
(v
p. 55)
G
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations.
(
v
p. 76)
H
ZONE2 ON/OFF button
This turns the power of ZONE2 (separate room) on/off. (v
p. 126)
I
ZONE2 SOURCE button
This selects the input source for ZONE2. (v
p. 126)
J
DIMMER button
Each press of this switches the brightness of the display. (v p. 181)
K
STATUS button
Each press of this switches the status information that is shown on the
display. (
v
p. 58)
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
