Denon AVR-X1100W User Manual

.
QUICK SELECT
MASTER VOLUME
SOURCE SELECT
ZONE2
ON/OFF
ZONE2
SOURCE
DIMMER STATUS
TUNER
PRESET CH
DVD/Blu-ray ONLINE
MEDIA
PLAYER
CBL/SAT
3214
PHONES
SETUP MICAUX - HDMI
5V/1A
Q
3
Q
4
Q
5
Q
6
Q2
L

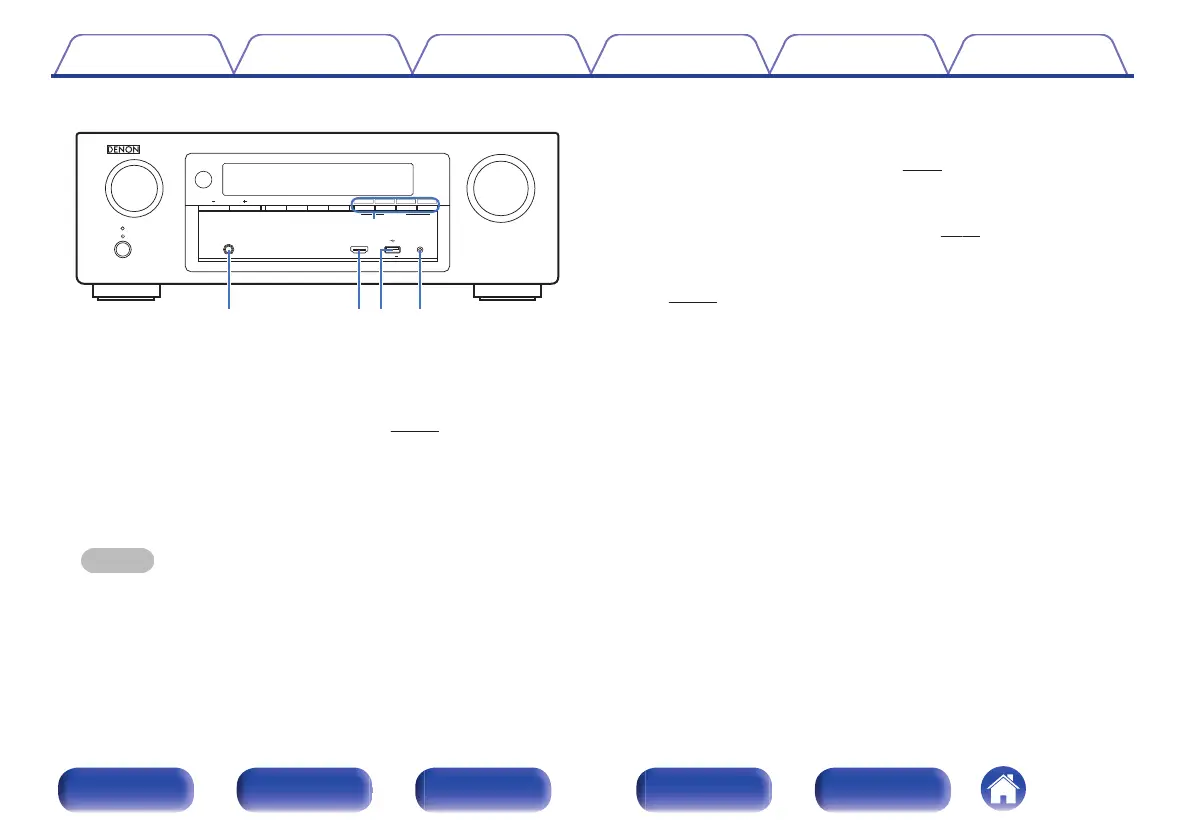

QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (
v
p. 120)
M
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
N
AUX-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles.
(
v
p. 45)
O
USB port
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod. (
v
p. 46)
P
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 156)
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
