AC IN
FRONT FRONT
CENTER SURROUND
SURROUND BACK SURROUND BACK
SURROUND
trewyui
qq
A

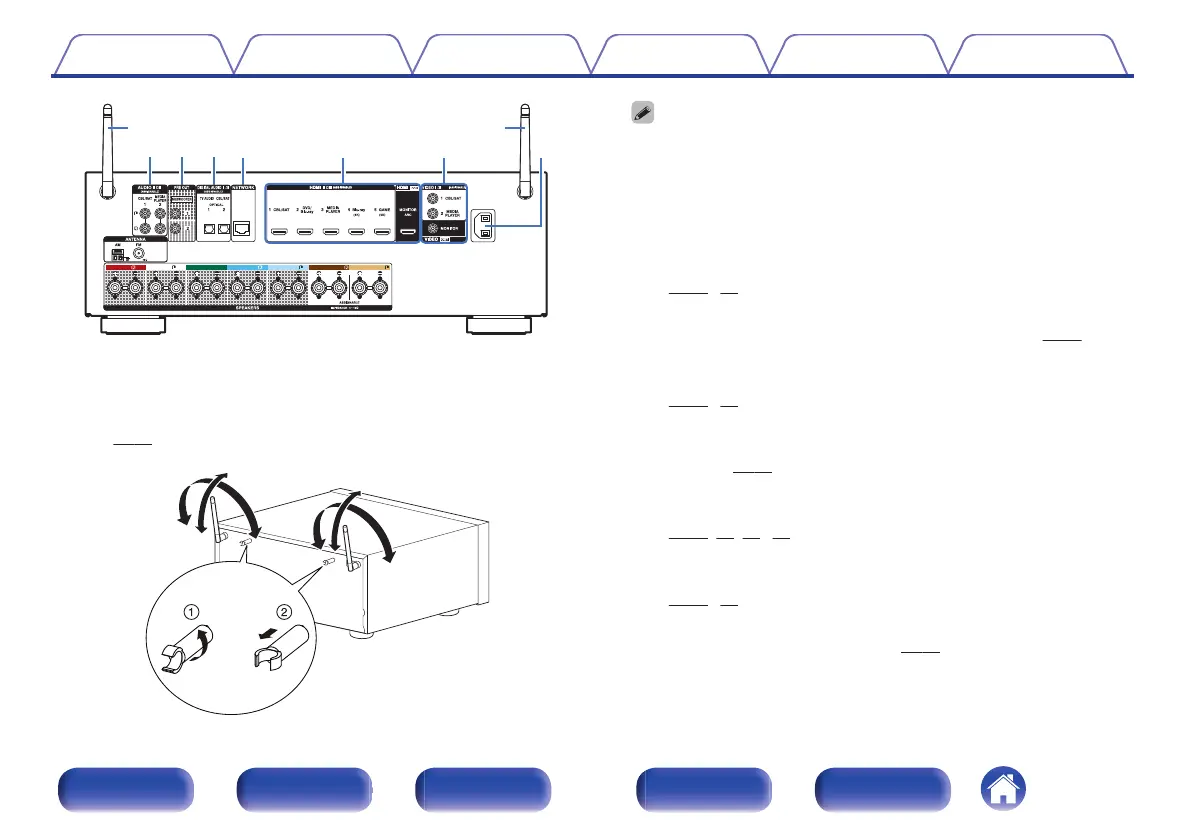

Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless
LAN, or when connecting to a handheld device via Bluetooth.
(v p. 51)
.
The antenna clip can be removed from the rear panel.
A
Rotate the antenna clip 90 degrees to the left.
B
Pull the antenna clip out towards yourself.
0
The antenna clip is needed when transporting this unit. Keep it in a safe place.
0
Attach the antenna clip by following the steps for removing it in reverse.
B
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v
p. 43, 44)
C
PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier.
(
v
p. 29)
D
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
(v p. 40, 44)
E
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (
v
p. 50)
F
HDMI connectors
Used to connect devices equipped with HDMI connectors.
(v
p. 39, 40, 43, 44)
G
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
(v p. 43, 44)
H
AC inlet (AC IN)
Used to connect the power cord.
(v p. 52)
Contents Connections Playback Settings Tips Appendix
19
