Denon AVR-X3200W Service Manual

+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
AVR-X3200

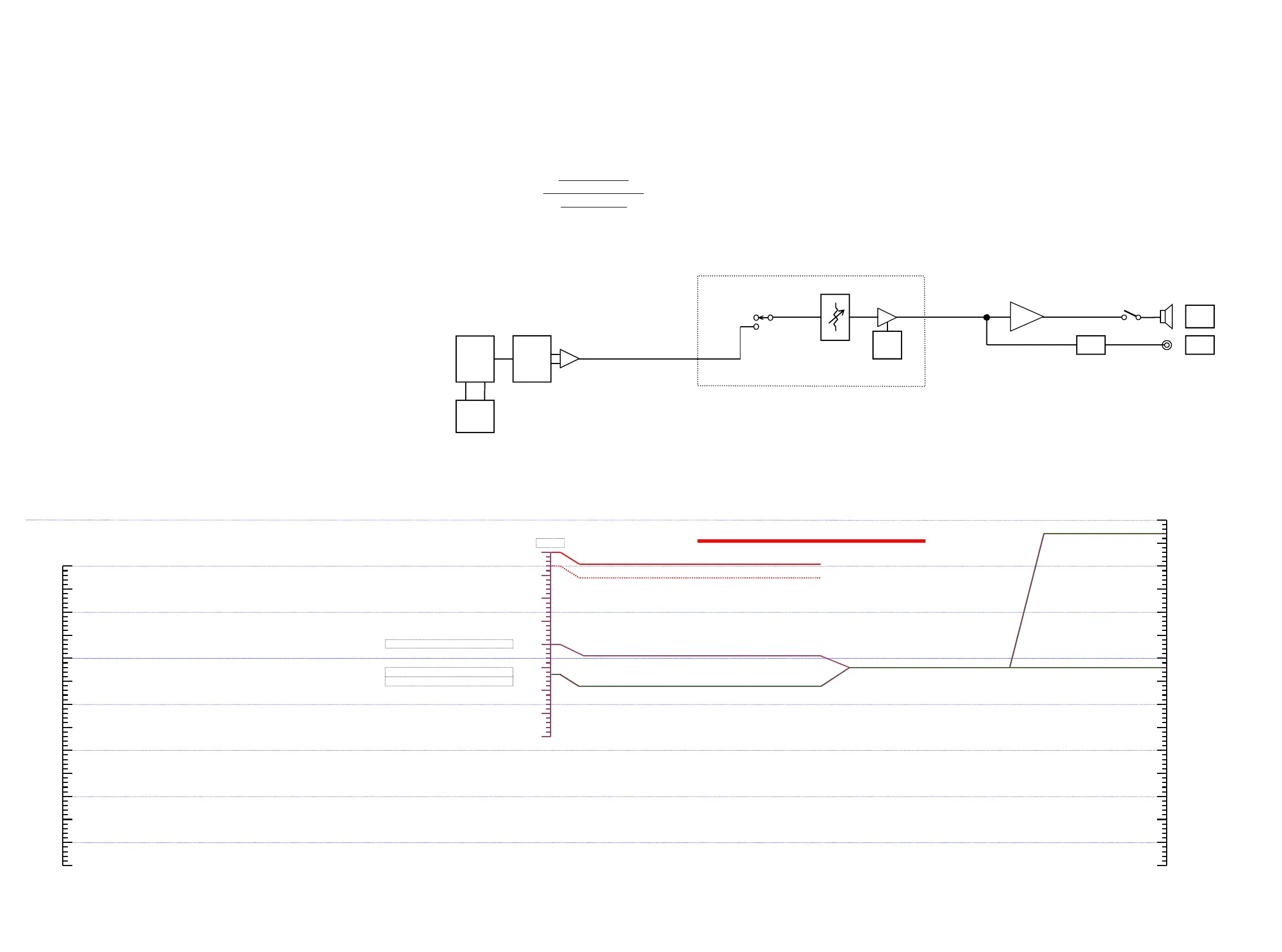

LEVEL DIAGRAM
CENTER ch
-2-0.5dB
200mVrms
+30dB
SP OUT
4.48Vrms/8Ω
+29dB
-2+6=+4dB
MAX. SIGNAL LEVEL
DOLBY LIMIT LEVEL (ALLch-3dBFS)
-2.6dB
-20dBFS(DIG.IN:PCM or DD Config1)
＋
＋
SPEAKER
OUT
DSP
GAIN
ADJ.
PCM1690
D/A
－
－
＋
PLD
-2.6dB
2.83Vrms=0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
PCM1690Differential Out
-2.6dB
R2A15220FP MAX. OUTPUT 3.8Vrms
MUTE
PRE OUT
PRE OUT
159mVrms
-2+6dB=4dB
(E2 Only)
-26.5dBFS(A/D IN)
-26.5dBFS(DIG.IN DD Config2)
R2A15220F
108

Denon AVR-X3200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	5
Composite video in	3
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	vTuner
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Surround, Dolby TrueHD
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	650 W

Weight and Dimensions

Depth	388 mm
Width	434 mm
Height	167 mm
Weight	11300 g
