Denon AVR-X3200W

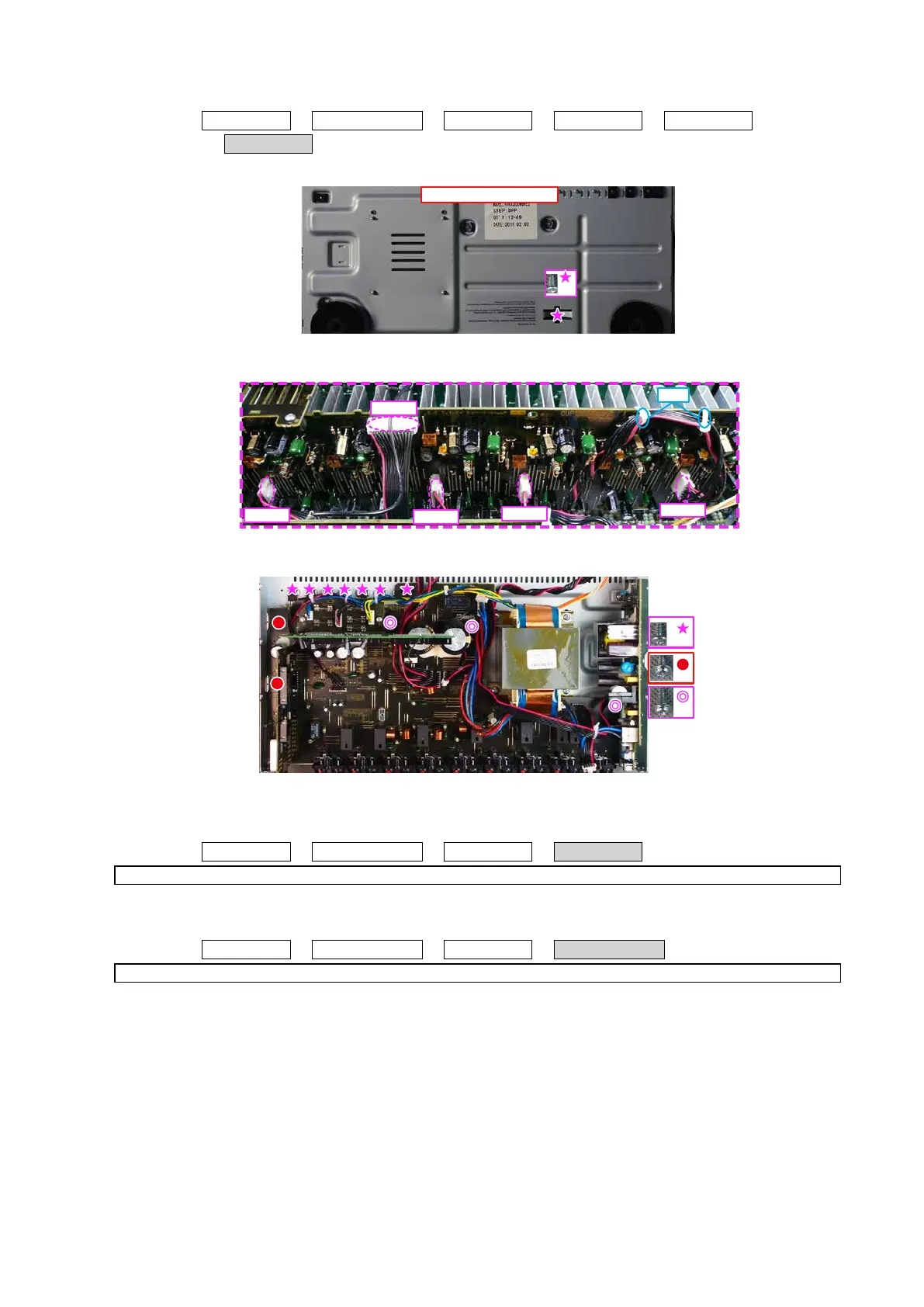

6. SPK PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
VIDEO PCB
→
INPUT PCB
→
SPK PCB
(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wire.
(3) Remove the screws.
7. SMPS PCB
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
8. TRANS POWER
Proceeding : TOP COVER
→
BACK CHASSIS
→
DIGITAL PCB
→
TRANS POWER
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
View from the bottom
x1
CN703
CN461
CN704
CN702
CN701
CUT
x7
x2
x3
17
