Denon AVR-X3200W Service Manual

SUB
MAIN
MAIN
SUB
HDMI IN1
HDMI IN2
HDMI IN3
HDMI IN4
HDMI IN5
HDMI IN6
(CBL/SAT)
(DVD)
(BLU-RAY)
(GAME)
(AUX2)
HDMI IN7
(CD)
HDMI IN8
(AUX1)
AD8195
Buffer
HDMI OUT1
ARC
HDMI ZONE2
HDMI SW2(MN864788)
HDMI TX(MN864787)
DEC_Y_IN
DEC_PB_IN
DEC_PR_IN
DEC_CVBS_IN
VIDEO BLOCK
VIDEO PLD
AD55/058Z-0(ADV8003-8B)
DDR2 SDRAM
512M
DDR2 SDRAM
512M
A3R12E40CBF-8E A3R12E40CBF-8E
P3 RX
P2 RX
P1 RX
P0 RX
P0 TX
P1 TX
P3 RX
P2 RX
P1 RX
P0 RX
P0 TX
P1 TX
P1 RX
P0 RX
P3 RX
P2 RX
ADV7850
VIDEO SIGNAL OUT
VIDEO INPU
T
DIGITAL AUDIO BLOCK
ANALOG
HDMI Rx
P1 TX
Matrix SW
600MHz
HDMI Tx
Matrix SW
600MHz
600MHz
DDR2 INTERFACE
CONTROL
Video Processor(1080P, OSD, IP Conv,)
4K/2K
4K/2K
WITH TMDS
EPM570F256C4N
Z2HDMISPDIF
RXI2S0~3(DSD1~4), RXSPDIF(DSD0)
HDMI SW1(MN864788)
870PCK
870VD0~7
870PCK
870VD0~7
TXI2S0
TXBCK, TXLRCK
TXI2S0
TXBCK, TXLRCK
RXMCK(DSDMCK), RXBCK(DSDSCK), RXLRCK(DSD5), RXINT0
B0~B7/G0~G7/R0~R7
PCK/HSYNC/VSYNC/DE
B0~B7/G0~G7/R0~R7
PCK/HSYNC/VSYNC/DE
B0~B7/G0~G7/R0~R7
PCK/HSYNC/VSYNC/DE
B0~B7/G0~G7/R0~R7
PCK/HSYNC/VSYNC/DE
Rxlink0 Txlink0
Txlink1
4K/2K
Up Scaler
(MEDIA Player)
RXI2S0~3(DSD1~4), RXSPDIF(DSD0)
RXMCK(DSDMCK), RXBCK(DSDSCK), RXLRCK(DSD5), RXINT0
Z2_HAINT
105 119
27.000MHz
27.000MHz
27.000MHz
27.000MHz
27.000MHz
fig.12c

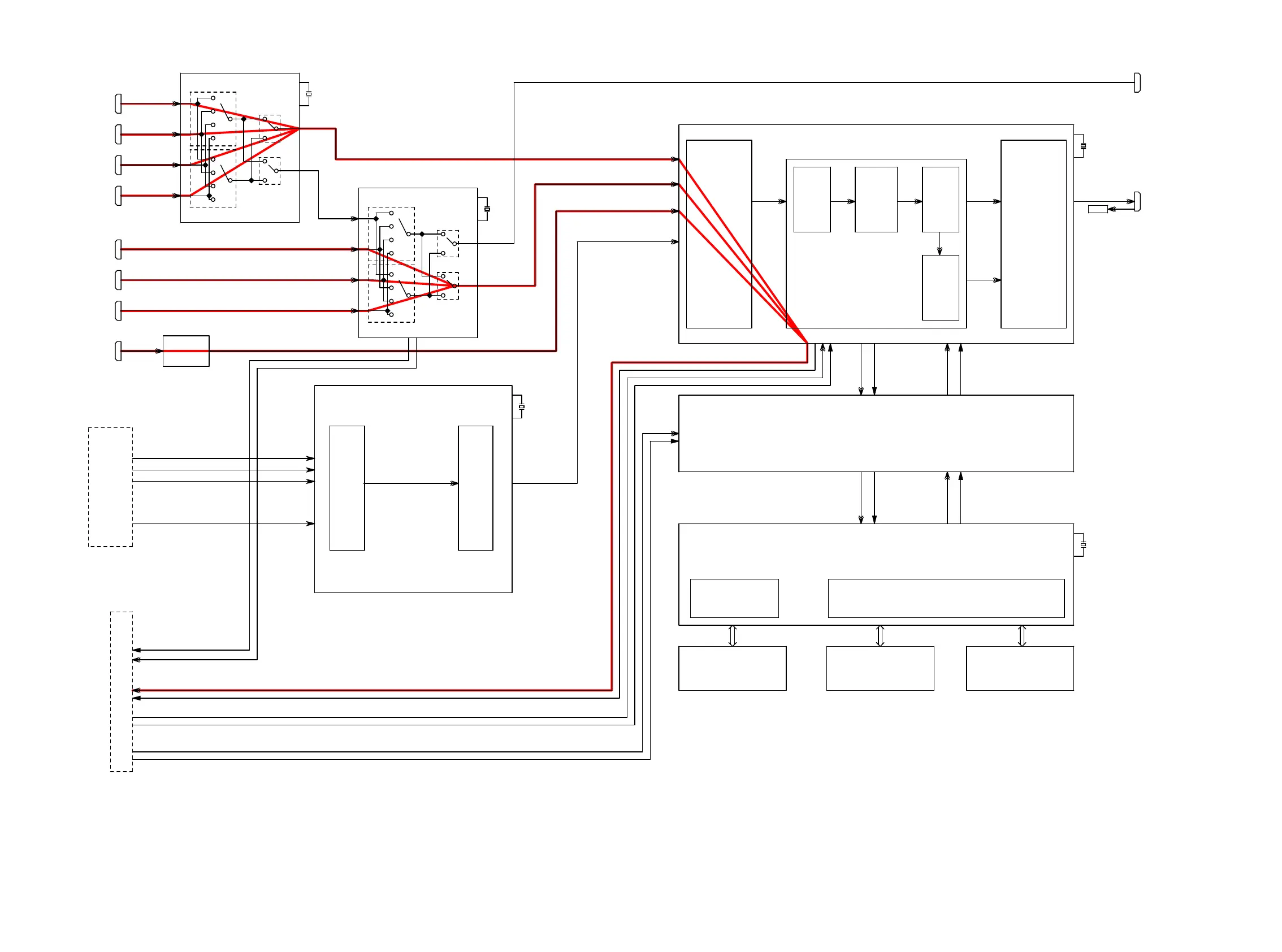

AVR-X3200W HDMI VIDEO BLOCK
