Denon AVR-X8500H Service Manual

YES
YES
YES

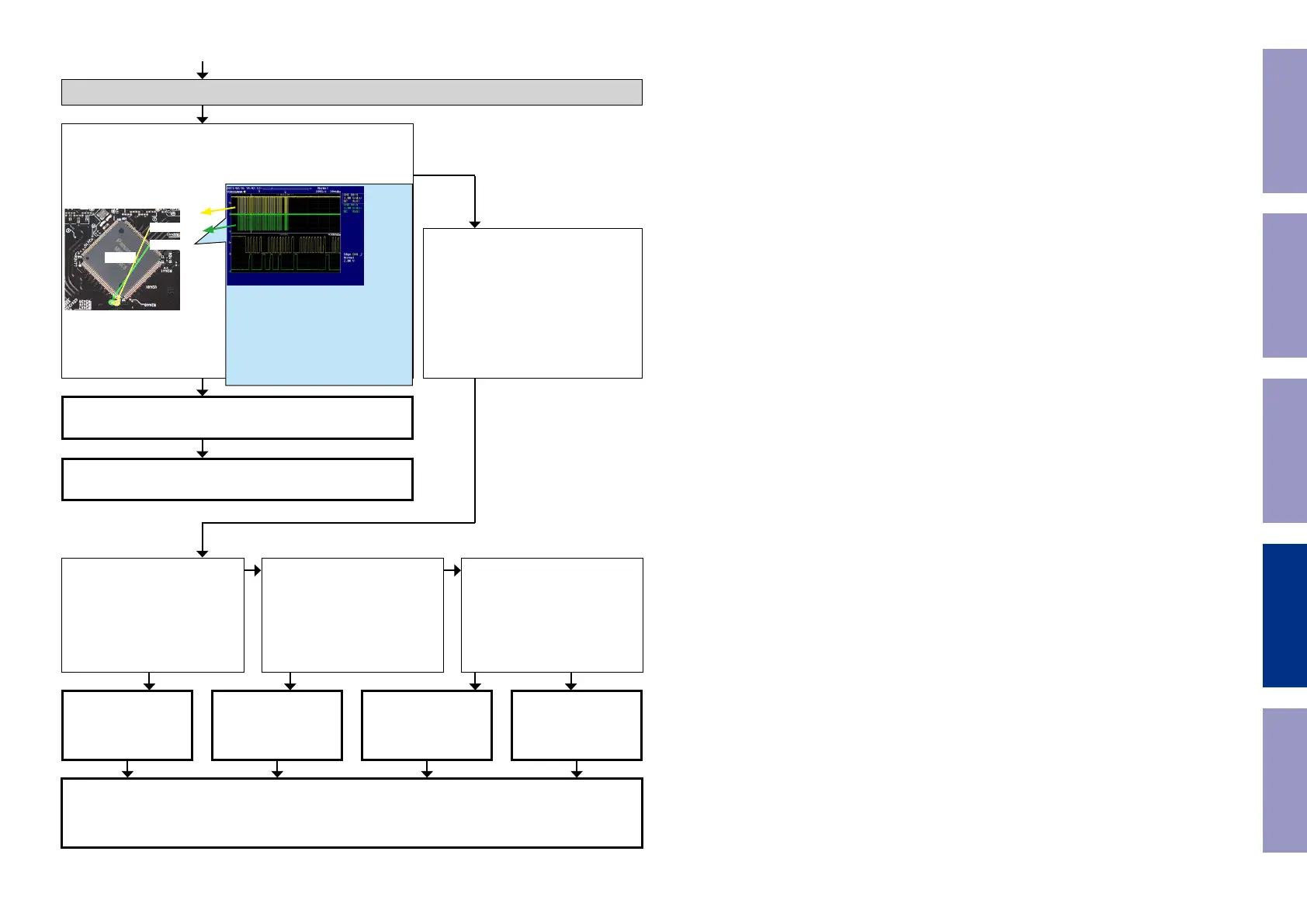

Check the I2C communication line. (HDMI Tx)
Check item(9). Check the I2C communication line :
Check the CPU.
Is the TP waveform of the TP near the HDMI SW1 [U2401] cor-
rect (like the one shown in the diagram) when the power is
turned on?
U2401
I2C(HSCL)
I2C(HSDA)
HDMI Tx [U3401] is
faulty.
Replace with a new
device.
HDMI SW1 [U2401] is
faulty.
Replace with a new
device.
HDMI SW2 [U2601] is
faulty.
Replace with a new
device.
CPU [U6201] is faulty.
Replace with a new
device.
HDMI Tx [U3401] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
Check item(10). Check the I2C com-
munication line :
Check HDMI SW [U2601 or U2401],
HDMI Tx [U3401] and CPU [U6201]
patterns as well as soldering.
If there is no problem, go to the next
step.
Check the HDMI SW1.
Remove the damping resistor
[R2460/R2461] of [U2401].
Is the "I2C" waveform correct?
Recheck from check item (1).
If it does not work, replace the PCB.
Check the HDMI SW2.
Remove the damping resistor
[R2630/R2631] of [U2601].
Is the "I2C" waveform correct?
Check the HDMI Tx.
Remove the damping resistor
[R3425/R3427] of [U3401].
Is the "I2C" waveform correct?
NO
NO NO
YES YES YES NO
*The diagram shows an example.
(Signal patterns vary depending on the tim-
ing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
- SCL frequency (400kHz normally)
Voltage scale : 1.0V/div
Time scale : 10us/div
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
100

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
