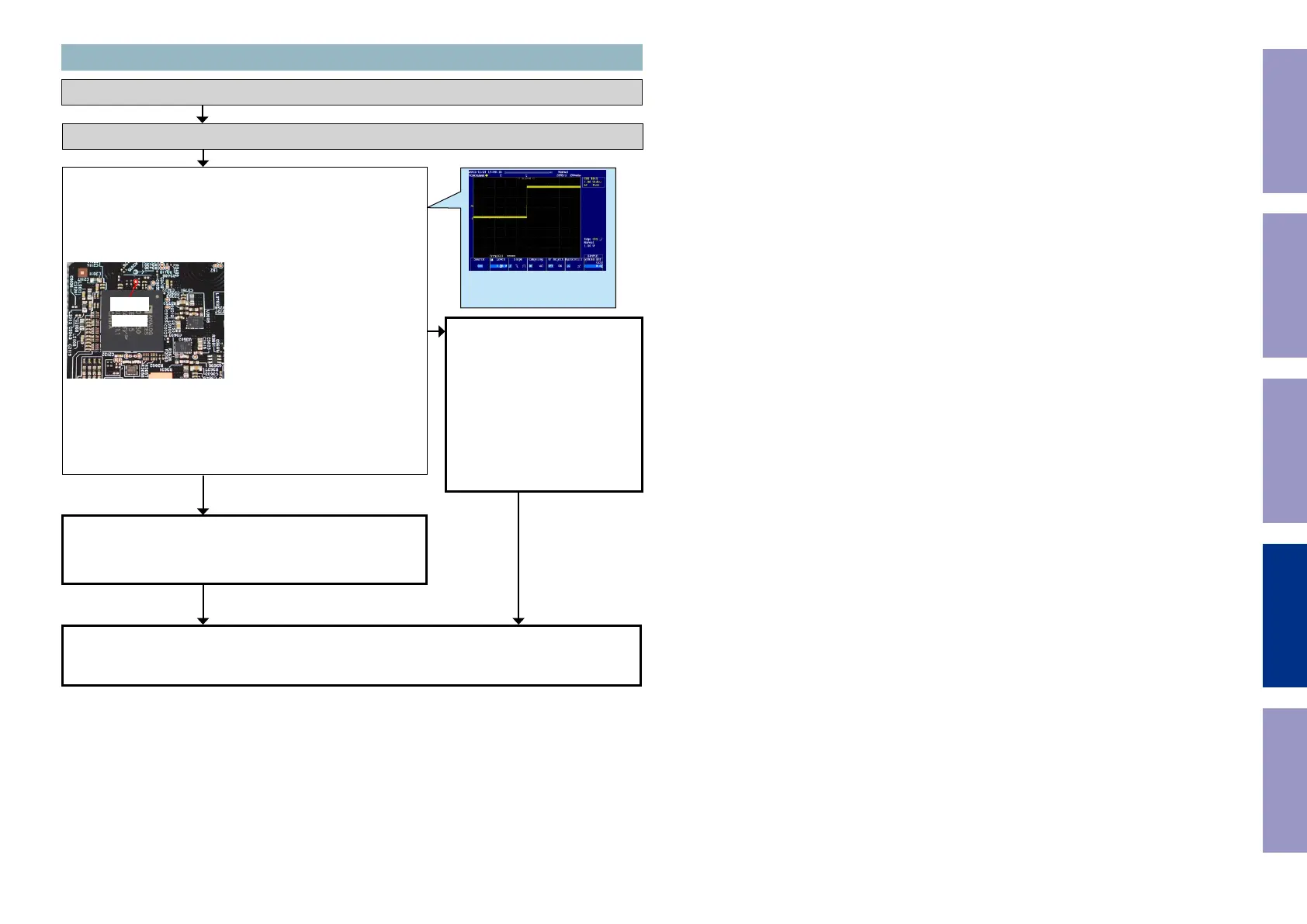

3-7. Error Code H1-05 failure detection procedure
Checking device. [U2000 : ADV7850]
Checking the reset waveform. (VIDEO DECODER)
Check item(25). Checking the reset waveform :
Check the waveform.
Is the TP waveform of the TP near the VIDEO DECODER (U2000)
correct (like the one shown in the diagram) when the power is
turned on?
VIDEO DECODER
U2000
RESET
Check the reset circuit between
CPU [U6201] and VIDEO DECODER
[U2000].
If there is no problem, the VIDEO
DECODER [U2000] is faulty.
Replace with a new device.
Recheck from check item (25).
If it does not work, replace the
PCB.
NO
Examples of conrmation waveform
Voltage scale : 1.0V/div
Time scale : 20ms/div
check item (1) again after replacing [R2031] with a new resistor.
If there is still a problem, the VIDEO DECODER [U2000] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
YES
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
106
