Denon AVR-X8500H Service Manual

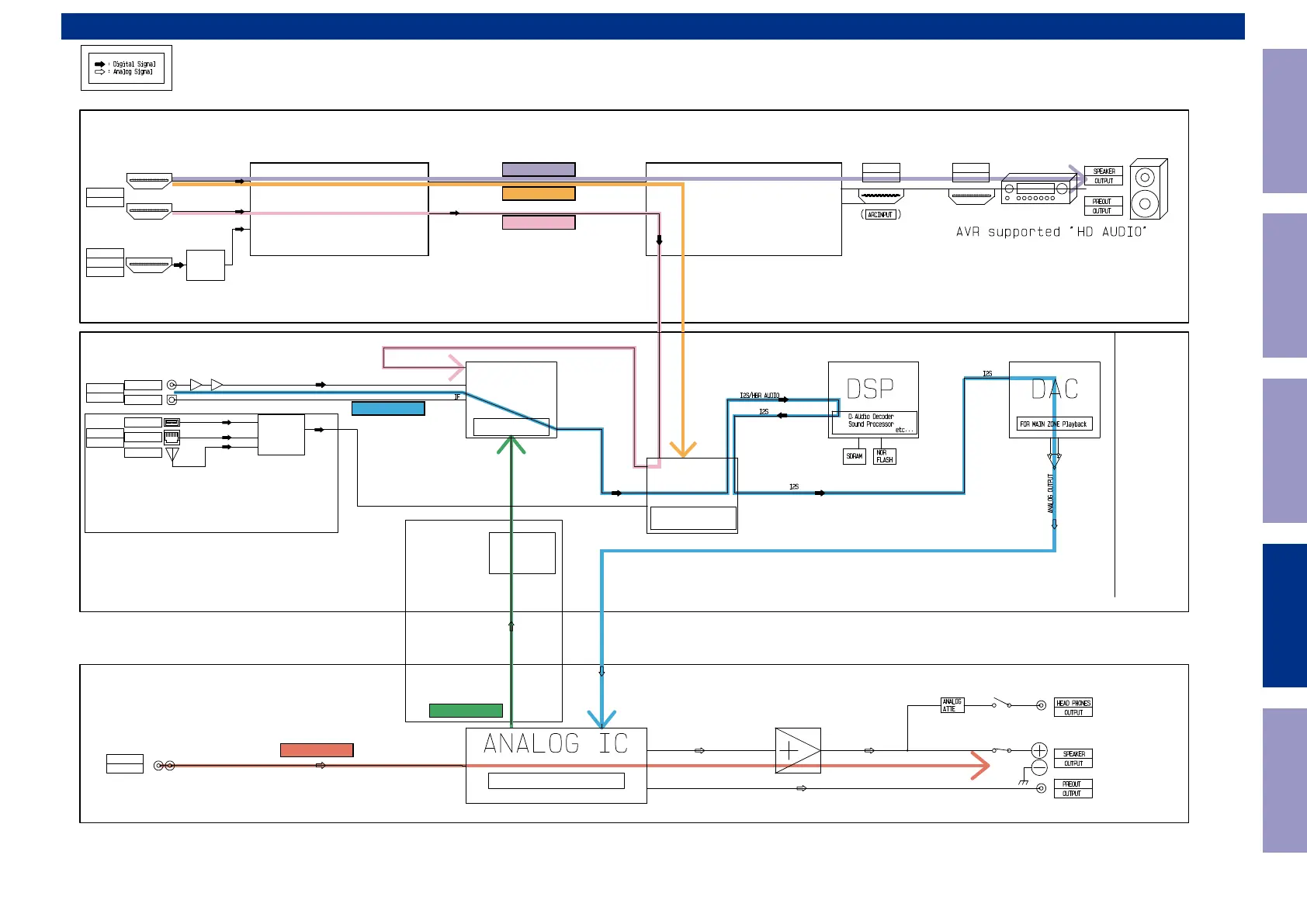

AUDIO CHECK PATH
HDMI Transceiver
MN864787
HDMI Transceiver
MN864788
Analog audio BLOCK
NETWORK BLOCK
Digital audio BLOCK
HDMI BLOCK
CHECK6
CHECK5
CHECK4
CHECK3
CHECK2
CHECK1
TMDS
BUFFER
DIGITAL AUDIO
INTERFACE RECEIVER
NJU72750V & NJU72751V & NJU72343V
VOLUME & INPUT SELECTOR
I2S
SELECTOR
I2S
AK4490EQ x 8
PLD
PCM9211PTR
DIR
INPUT
ANALOG 2CH
INPUT
NETWORK
INPUT
DIGITAL
INPUT
HDMI
INPUT
HDMI
FRONT
ETHERNET
Wifi
USB
OPTICAL
COAXIAL
A/D_INPUT
D/A_OUTPUT
ADC
BLOCK
NETWORK
MODULE
SPDIF
I2S/DSD
SPDIF(Legacy Audio)
I2S/HBR Audio(LPCM MULTI)
/Dolby TrueHD/DTS-HD MA/DSD
OUTPUT
HDMI
INPUT
HDMI
ADSP-21573KBCZ x 2
5M570ZF256C5N
ADC
AK5358BET
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
151

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
