Denon AVR-X8500H Service Manual

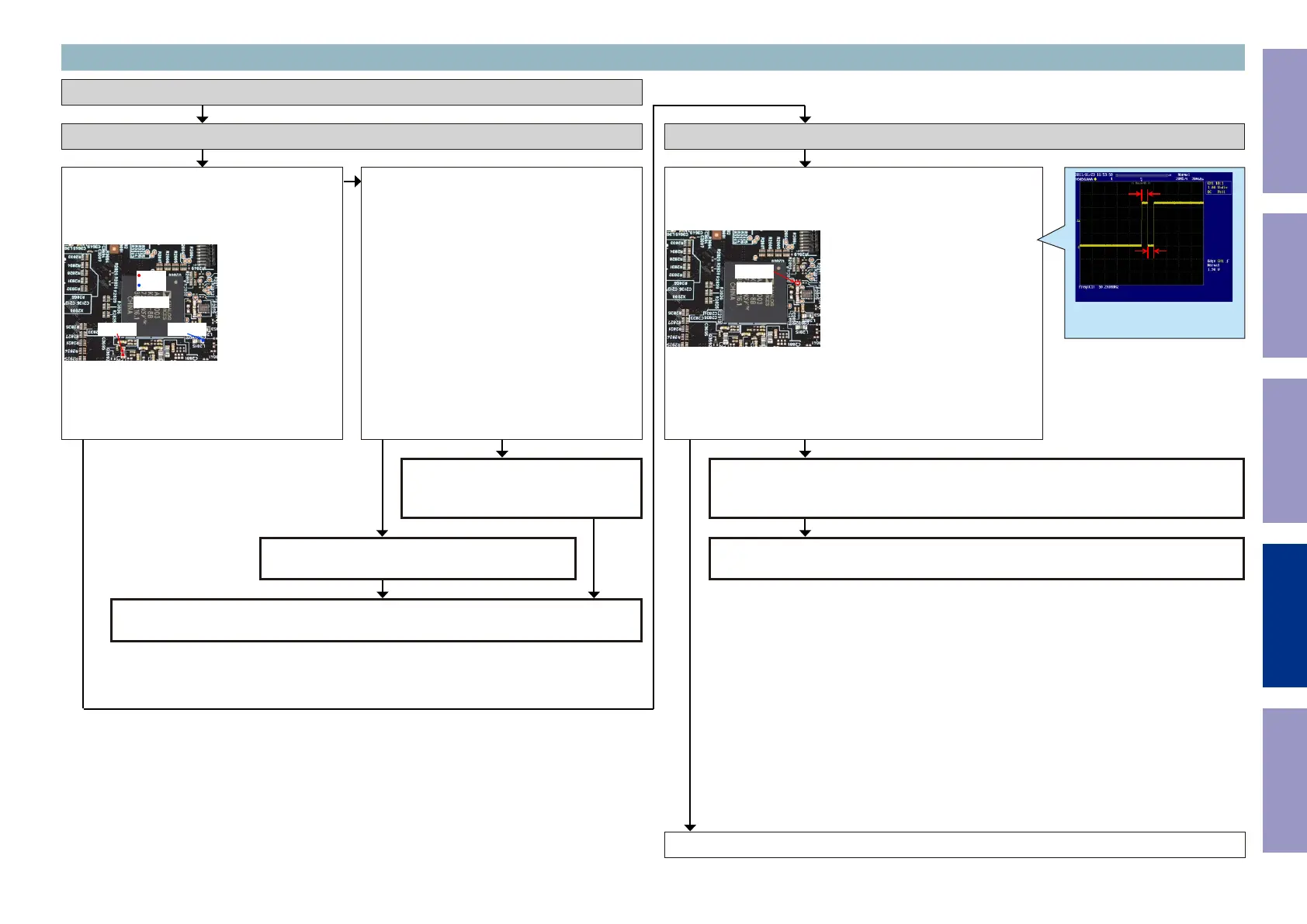

Check item(17). Check the power supply voltage.
:
Does the power supply voltage of the GUI [U2800]
indicate the appropriate voltage (1.8V, 3.3V)?
The test points are as follows.
U2800
L2802 L2815
1.8V
3.3V
Check item(18). Check the power supply voltage.
:
Check the power supply components [U3603,
Q3696] on the substrate and peripheral pattern.
If there is no problem, remove the GUI [U2800]
from the substrate and measure the voltage at
the test point of check item (17).
Is the voltage correct (1.8V or 3.3V)?
Check the power supply voltage.
Checking device. [U2800 : ADV8003]
Go to next page.
3-4. Error Code H1-06 failure detection procedure
NO
GUI [U2800] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
The power supply circuit is faulty.
Replace the PCB.
NOYES
YES
Check item(19). Checking the reset :
Check the CPU.
Is the waveform of the TP near the GUI [U2800] correct (like the one
shown in the diagram) when the power is turned on?
U2000
U2800
RESET
Checking the reset waveform.
10ms
10ms 10ms
Example of the waveform to be checked
Voltage scale : 1.0V/div
Time scale : 20ms/div
Recheck from check item (1).
If it does not work, replace the PCB.
Check the reset circuit between CPU [U6201] and GUI [U2800].
If there is no problem, the GUI [U2800] is faulty.
Replace with a new device.
NOYES
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
103

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
