Denon AVR-X8500H Service Manual

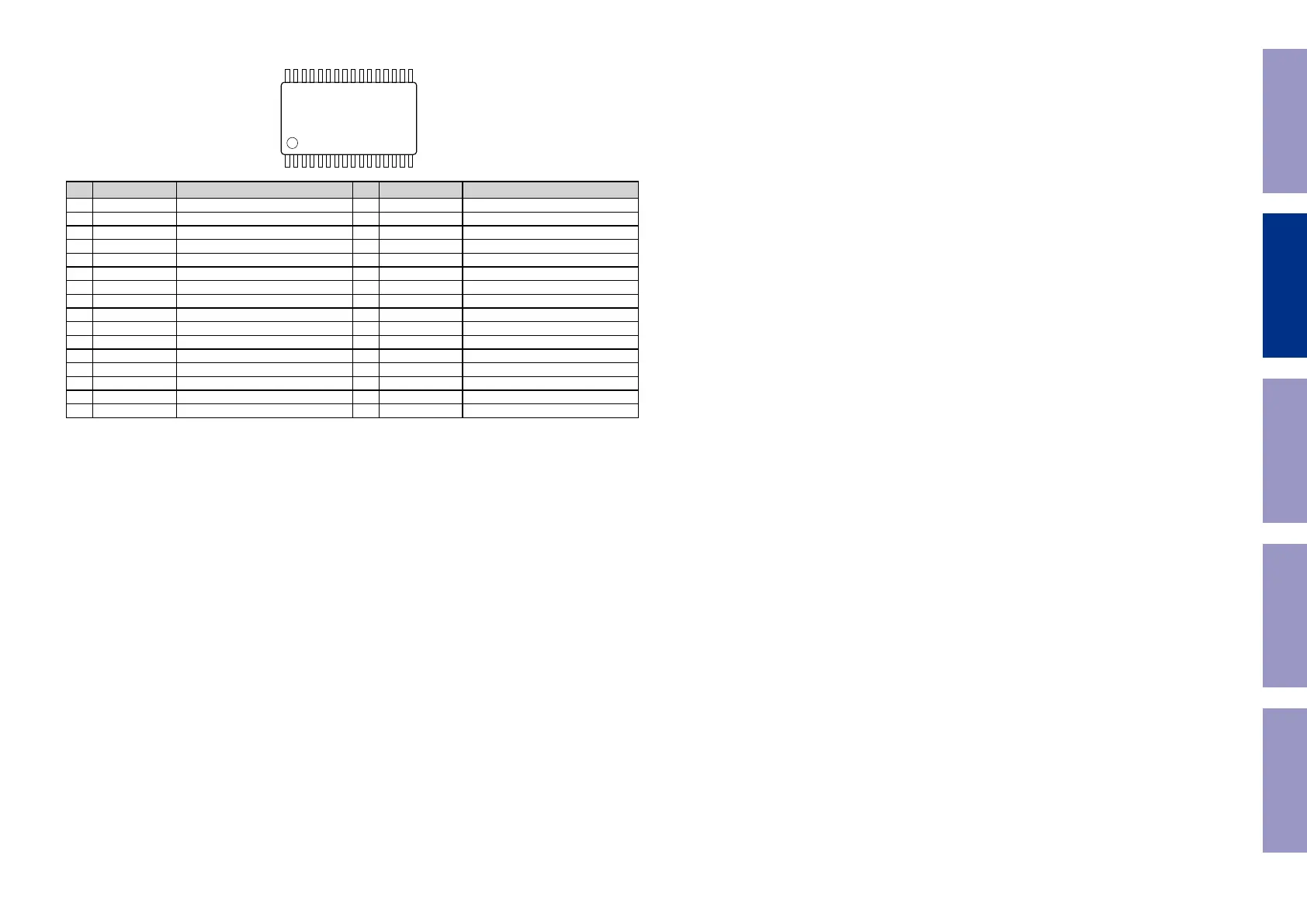

NJU72751 (AUDIO/VIDEO : U3219, U3220)
No. Symbol Function No. Symbol Function
1 V+ Power supply(+) 17 CLOCK IC control clock input
2 ADR0 Address selection pin 0 18 NC -
3 InA1 Ach input1 19 OutB4 Bch output4
4 InB1 Bch input1 20 OutA4 Ach output4
5 NC - 21 NC -
6 InA2 Ach input2 22 OutB3 Bch output3
7 InB2 Bch input2 23 OutA3 Ach output3
8 NC - 24 REF_B Bch reference potential
9 NC - 25 REF_A Ach reference potential
10 InA3 Ach input3 26 OutB2 Bch output2
11 InB3 Bch input3 27 OutA2 Ach output2
12 NC - 28 NC -
13 InA4 Ach input4 29 OutB1 Bch output1
14 InB4 Bch input4 30 OutA1 Ach output1
15 REF BIAS reference potential 31 ADR1 Address selection pin 1
16 DATA IC control data input 32 V- Power supply(-)
61 1
17
32
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
66

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
