Denon AVR-X8500H Service Manual

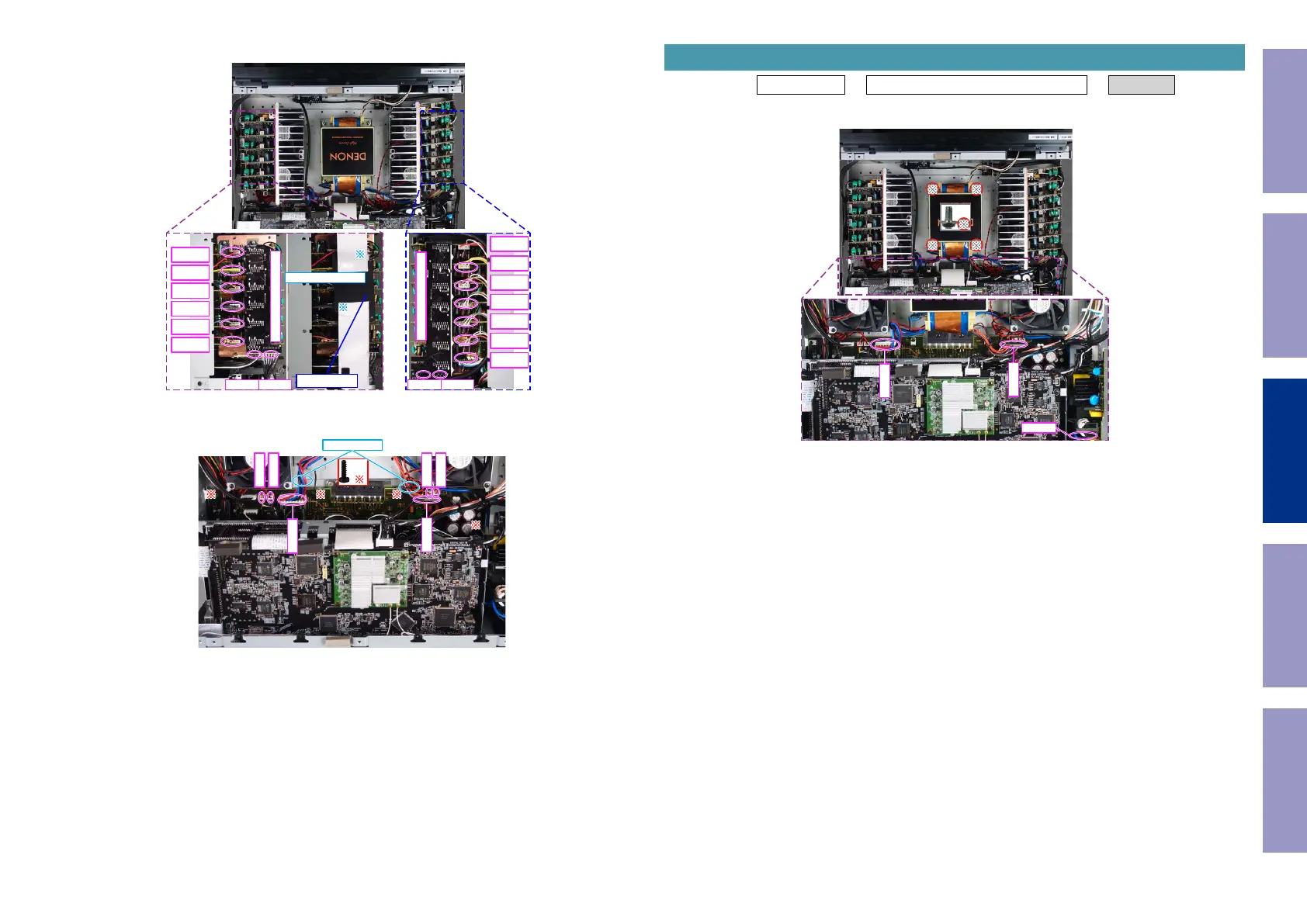

(3) Remove the connector. Remove the PUSH RIVET. Remove the connector.
(4) Remove the screws. Remove the connector.
PUSH RIVET x2
L-AMP CONNECT
H2L
PURPLE
H1L
YELLOW
SBL
GRAY
H3L
ORANGE
SL
BROWN
FL
RED
C
BLUE
R-AMP CONNECT
FR
RED
SR
BROWN
H3R
ORENGE
H1R
YELLOW
H2R
PURPLE
SBR
GRAY
N5833 N5834N5842 N5841
PC SHEET
x4
N6012
N6201
N9017 N9018 N9023 N9022
STYLE PIN
Proceeding : TOP COVER → RADIATOR ASSY or BACK PANEL ASSY → TRANS
(1) Remove the screws. Remove the connector.
4. TRANS
x4
N6012
N6201
N6501
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
78

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
