Denon AVR-X8500H Service Manual

Click the [click to connect] button to start communication.
After a connection is established successfully, the display of the button name will change as
shown in Figure 4.
TV settings : Switch to the HDMI input in the AVR connection.
Player settings : Turn the unit power on and congure it to play disks.
AVR settings : While the power is On, hold down buttons "CURSOR
f
" and "STATUS" for
at least 3 seconds.
(Continue to press and hold the buttons until all segments of the FLD volume illuminate.)
※ When the power is turned on after initialization, "Setup Assistant" will be displayed.
After exiting "Setup Assistant" execute the above.
Display changes.

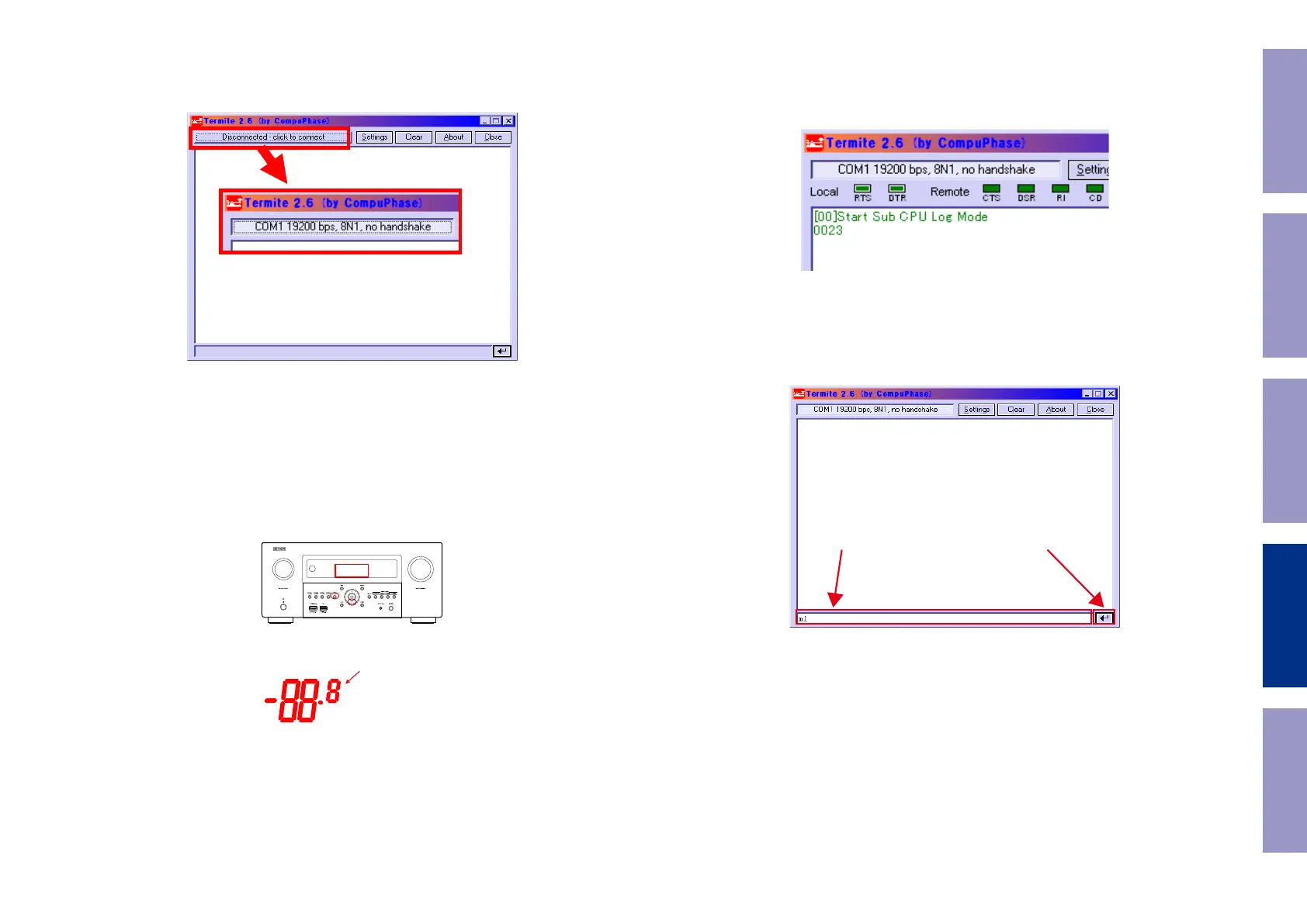

Figure 4. Change of the Display of the Communication Start Button Name
Press
Figure 6. AVR settings
All the indicator Lights
Figure 6. FLD Display When Set
When the settings are correct, the following message will be displayed in the window of
Termite.
[00]Start Sub CPU Log Mode
****
(**** is a version of Sub CPU.)
The setup is now complete.
Method for sending commands
Enter the command in the transmission command entry section, click the [Send] button and
send the command.
Figure 7. Display of Termite When AVR is Set
1. Input a command in the
transmission command input.
2.Click on the transmission button.
Figure 8. Method for Sending Termite Commands
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
96

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
