Denon AVR-X8500H Service Manual

When the HDMI input terminal (AUX1) is con-
nected to the player, the video from the player
will be played back on the TV?
Use any of Dolby TrueHD/DTSHD MA/PCM 8ch
for the playback audio format.
There are no problems with the HDMI device.
Is the "DIG" indicator illuminated on the FLD?
When the "DIG" indicator is illuminated, the DIGI-
TAL AUDIO block is faulty.
If the "DIG" indicator is not illuminated, go to
check item (80).
(HDMI DDC Buffer [ISL33003] failure detection
procedure)

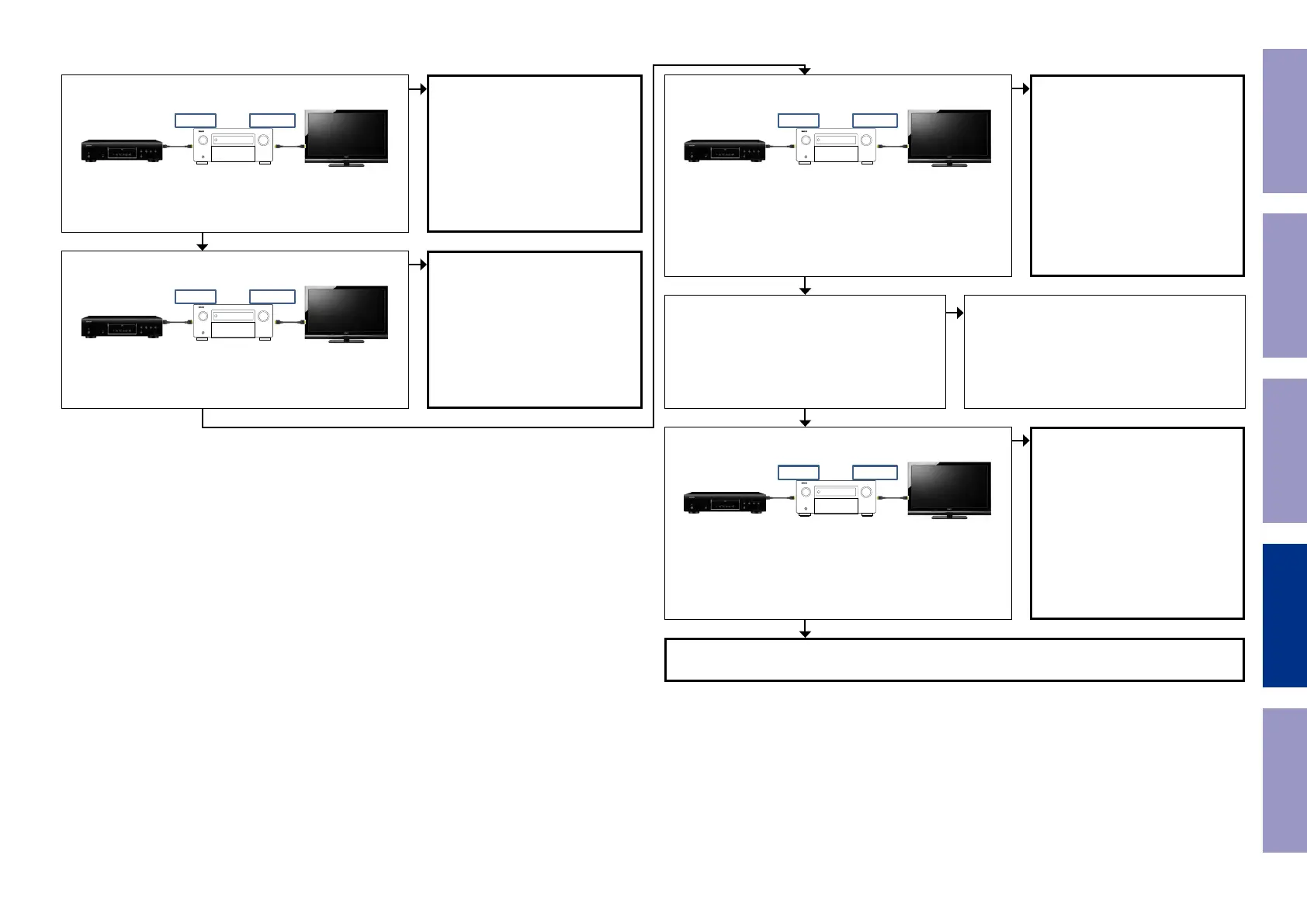

Check item(2). : Does a video signal come from HDMI ZONE2
OUT to TV correctly?
When the HDMI input terminal (HDMI 5, 6, 7) are connected
in order to the player, are the audio and video from the player
played back on the TV correctly in each case?
ZONE2 OUT
HDMI IN 5-7
Check item(3). : Does a video signal come from HDMI ZONE2
OUT to TV correctly?
When the HDMI input terminal (HDMI 1, 2, 3, 4) are connected
in order to the player, are the audio and video from the player
played back on the TV correctly in each case?
ZONE2 OUT
HDMI IN 1-4
Check item(4). : Does a video signal come from HDMI OUT1 to
TV correctly?
Turn Video Conversion "OFF" on the setup menu.
(SETUP MENU-> Video-> Output Settings-> Video Conversion
= Off)
When the player is connected in order to the HDMI input
terminals (HDMI 1, 5), in each case is the player video played
back on the TV connected to the HDMI output terminal (HDMI
OUT 1,2)?
HDMI OUT1/2
HDMI IN 1/5
Check item(5). : Does a video signal come from HDMI OUT1 to
TV correctly?
Turn Video Conversion "ON" on the setup menu.
(SETUP MENU-> Video-> Output Settings-> Video Conversion
= On)
When the HDMI input terminal (HDMI 1) is connected to the
player, the video from the player will be played back on the
TV?
HDMI OUT1
HDMI IN 1
NO
YES
YES
YES
YES
YES
Go to check item (42)
(Switcher1 failure detection proce-
dure)
Go to check item (55)
(Switcher2 failure detection proce-
dure)
Go to check item (63)
(Tx failure detection procedure)
Go to check item (87)
(GUI and PLD failure detection proce-
dure)
NO
NO
NO
NO
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
98

Denon AVR-X8500H Specifications

General

Channels	13.2
Power Output	150W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Frequency Response	10Hz-100kHz (+1, -3dB)
HDMI Inputs	8 (1 front)
HDMI Outputs	3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
HEOS Multi-room	Yes
Wi-Fi	Yes
Bluetooth	Yes
Voice Control	Amazon Alexa, Google Assistant, Apple Siri
Impedance	4-16 ohms
HDR Compatibility	HDR10, Dolby Vision, HLG
Audio Return Channel (ARC)	Yes
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Phono Input	Yes
Speaker Connectors	Binding Posts
Supported Audio Formats	MP3, WMA, AAC, FLAC, ALAC, WAV, DSD
Surround Sound Support	Dolby Atmos, DTS:X, Auro-3D
Tuner	AM/FM
Input Sensitivity/Impedance	200 mV / 47 kohms
HDCP Support	2.2
Other Connections	USB, Ethernet, RS-232C
Wireless Connectivity	Wi-Fi, Bluetooth
Signal-to-Noise Ratio	102 dB
DAC	AKM AK4490EQ (32-bit/192kHz)
Total Harmonic Distortion	0.05% (20Hz - 20kHz, 150W)
