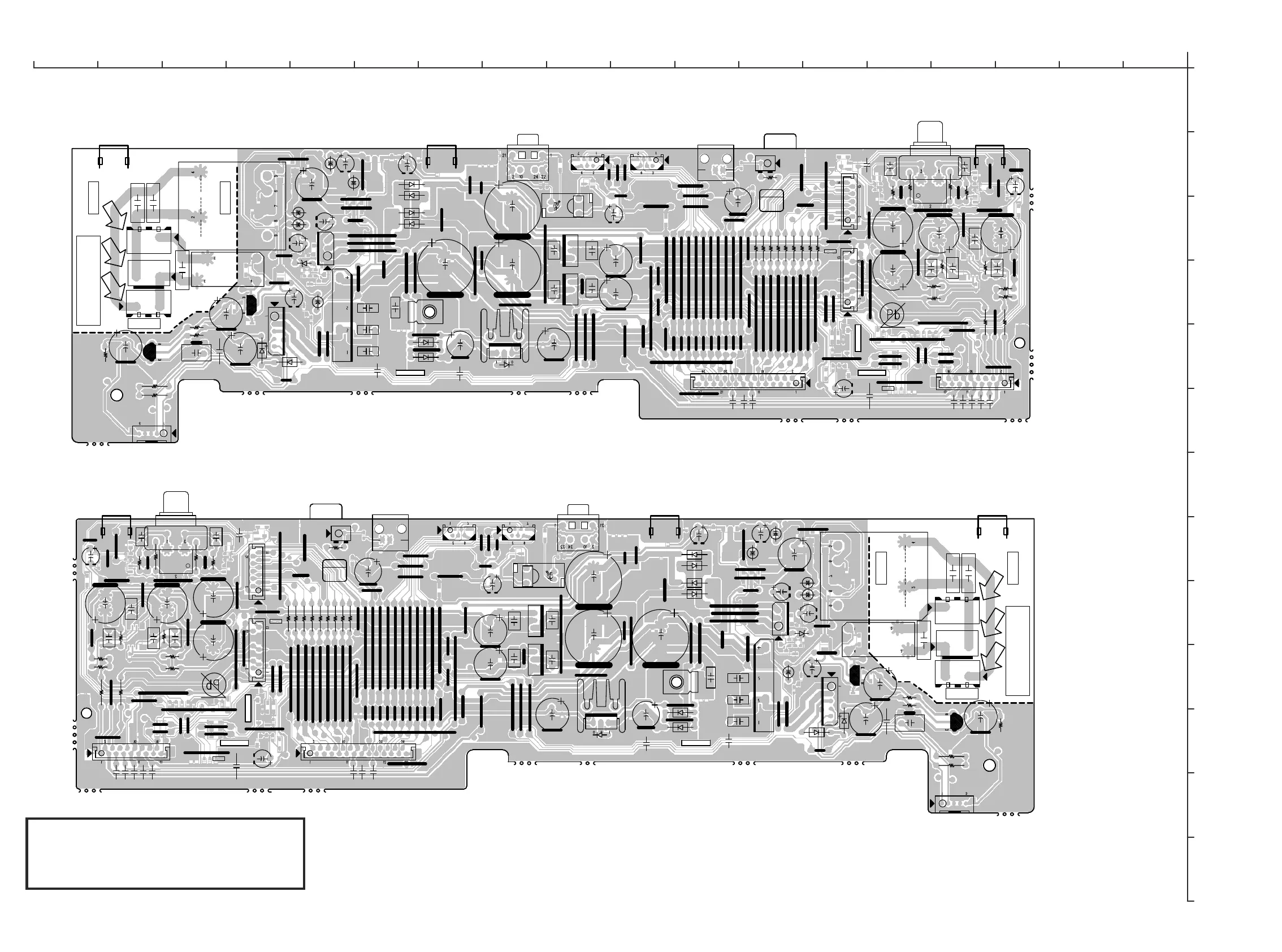

Denon DCD-720AE - POWER PCB LAYOUT

54
123456789101112131415161718
M
L
K
J
I
H
G
F
E
D
C
B
A
鉛フリー半田
半田付けには、鉛フリー半田 (Sn-Ag-Cu)を使用してください。
Lead-free Solder

BK81
13.+6V_A
12.+7V_DRV
9/10/11.GND
8.R_CH
7.R_CH
5/6.GND
4.L_CH
3.L CH
2.3.3V_A
1.3.3V_D
PMAE
PMAF
11.MOSI
10.MC/DEMP
9.MS/FLT
8.MISO/FMT
7.GND
6.SCK
5.GND
4.BCK
3.DATA
2.LRCK
1.XSMT
17.V_PROT
16.P_DN
15.PWR_ON
14.GND
13.MCU+3.9V
12.GND
11.GND
10.+13V_D
9.+13V_D
8.MUTE
7.-9V_A
6.N.C
5.+9V_A
4.HP_R
3.GND_HP
2.GND_HP
1.HP_L
PMPC
27.BOL_RST
26.MCU_RST
25.RX
24.TX
23.BOOT
22.REMOTE
21.USB_BOOT
20.GND
19.SPDIF
18.3.3V
17.A_MUTE
16.GND_DRV
15.GND_DRV
14.+7V_DRV
13.+7V_DRV
12.MOSI
11.MC/DEMP
10.MS/FLT
9.MISO/FMT
8.DSP_SCK
7.GND
6.DAC_BCK
5.GND
4.DAC_DATA
3.GND
2.DAC_LRCK
PMAD
1.DAC_XSMT
5.+42V 4.GND 3.GND 2.FL1 1.FL2
2.SPDIF
1.GND
CN21
SPDIF
Bar code Label
SECONDARY
PRIMARY
BK13
BK12
SWITCH
AC CORD
TRANS
CUP12470Z-2
POWER PCB : P
C931
C932
IC92
IC93
C939
C940
C933
C934
C941
C942
D932
D931
D933
D934
D951
C951
IC94
C958
C955
CWP4
CWP3
R975
CWP1
CWP2
C952
C953
C954
Q971
D971
D972
C971
R971
R972
C972
C973
R973
C974
R974
C902
C903
C964
JW92
CBPA
D922
C904
C912
C908
C909
T901
RL91
D908
C905
Q901
C913
C916
C981
D919
PMPC
CWPB
C835
R843
C836
R844
C841C842
C828
C833
JK81
C864
D871
RC81
C871
C827
C834
R831
R832
C830
C832
R825
R826
R823
R824
PMAD
PMAF
CN83
CN82
D921
ET93
J908
J907
R882 R881
R802 R803 R809 R808 R807
R801
R806
J910
D909
D917
D916
D913
D907
R862
C881
J903
R805
R804
J901
CN21
PMAE
R841
R842
C551
C552
C553C554
C555
C557
C558
C559
C556
C560
C561
C562
C567
J906
J905
JK82
JK83
J993
J966
J978
J920
J924
J928
J944
J856
J925
J994
J991
J965
J998
J997
J931
J852
J853
J996
J943
J956
J995
J855
J854
J945
J857
J861
J938
J930
J929
J989
J962
J862
J865
J918
J963
J957
J923
J919
J916
J858
J990
J802
J859
J860
J932
J863
J922
J933
J864
J976
J977
J975 J974
J973
J970
J968
J969
J967
J988
J955
J985
J952
J961
J936
J983
J950
J872
J960
J951
J984 J982
J949
J947
J980
J948
J981
J946
J979
J954
J987
J939
J942
J941
J935
J940
J937
J912
J915
J934
J917
J913
J881
J999
J964
J926
J921
J927
J801
J851
J914
J871
J971
J972
J959
J953
J986
SECONDARY PRIMARY
R931
R932
C957
C959
C956
C961
D975
C947
C948
C962
C963
D901
D905
C906
C907
D903
D914
C911
R902
D911
R903
R907
R909
D912
Q904
R904
R905
C910
D906
D915
D904
D910
C915
D918
C914
R906
Q902
Q903
Q905
D902
IC91
C997
C996
C999 C998
D986
R991
R992
Q983
D987
R993
R981
R983
D982
Q981
D981
D983
D984
R987
R984
R985 R989
R990
D985
Q982
IC82
Q841
Q842
Q843
Q844
R845
R846
R847
R848
C863
R871
D872
Q871
C872
Q845
Q846
C862
C861
R811
R812
D812
Q811
D811
R872
C831
C829
C899 C898
R836
R835
R863
R986
D801
R962
R961
D935
D936
D973 D974
L801
L802
C937
C938
C936
C935
D851
D852
R852
R851
R988
R901
R868
R869
R698
R699
C563
C564
C949
C566
POWER
(COMPONENT SIDE)
POWER
(FOIL SIDE)
