10
DHT-390XP
AVR-390
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in PANEL FRONT ASSY.

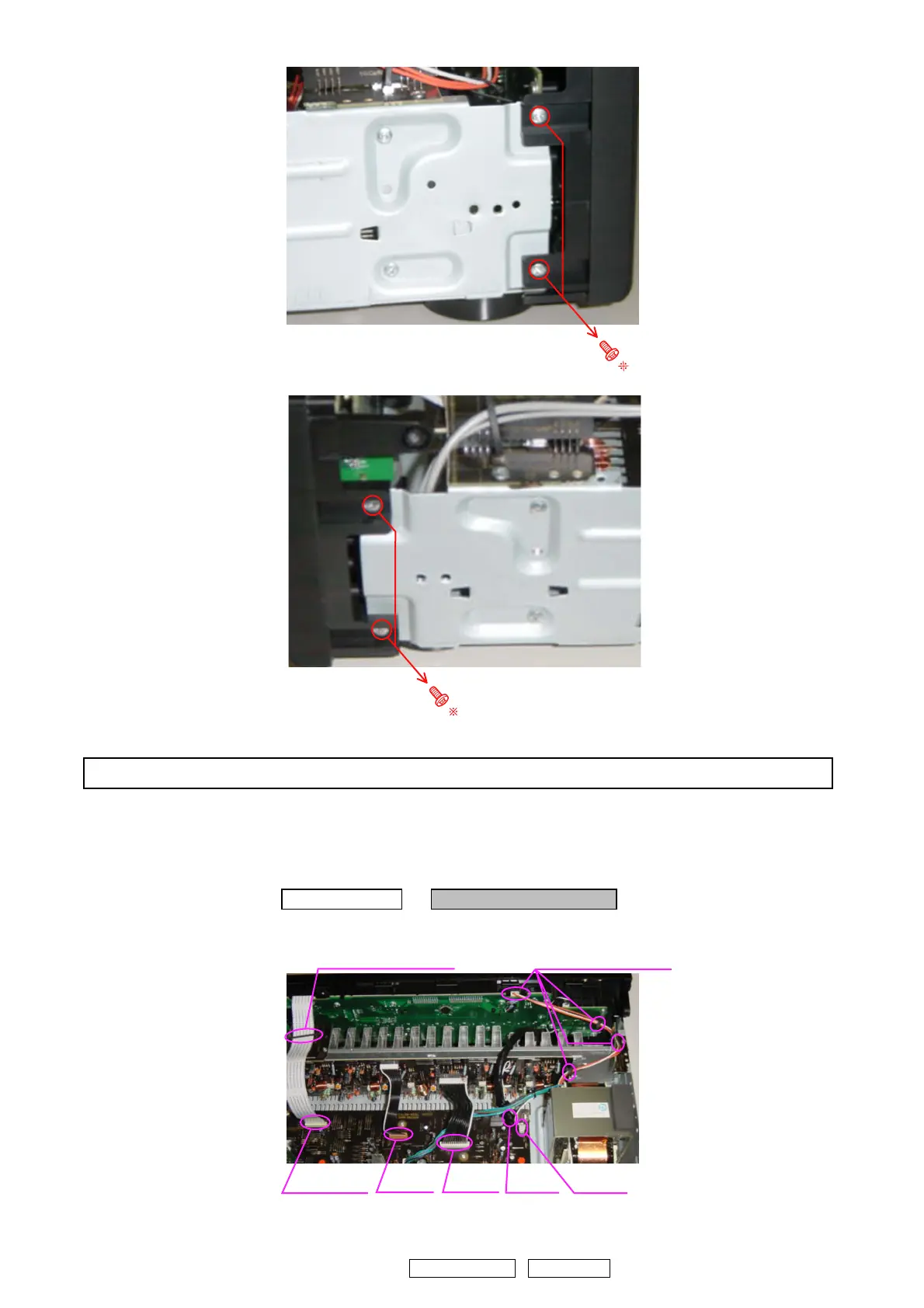

2. HEATSINK MAIN ASSY
(1) Disconnect the connector wires and FFC Cable.
Picture C
Picture D
Proceeding : CABINET TOP → HEATSINK MAIN ASSY
Top view
CP110 CP111
CP701
CP107
Cord holder : Loose
Cord holder : Loose
FFC Cable
