12
DHT-390XP
AVR-390

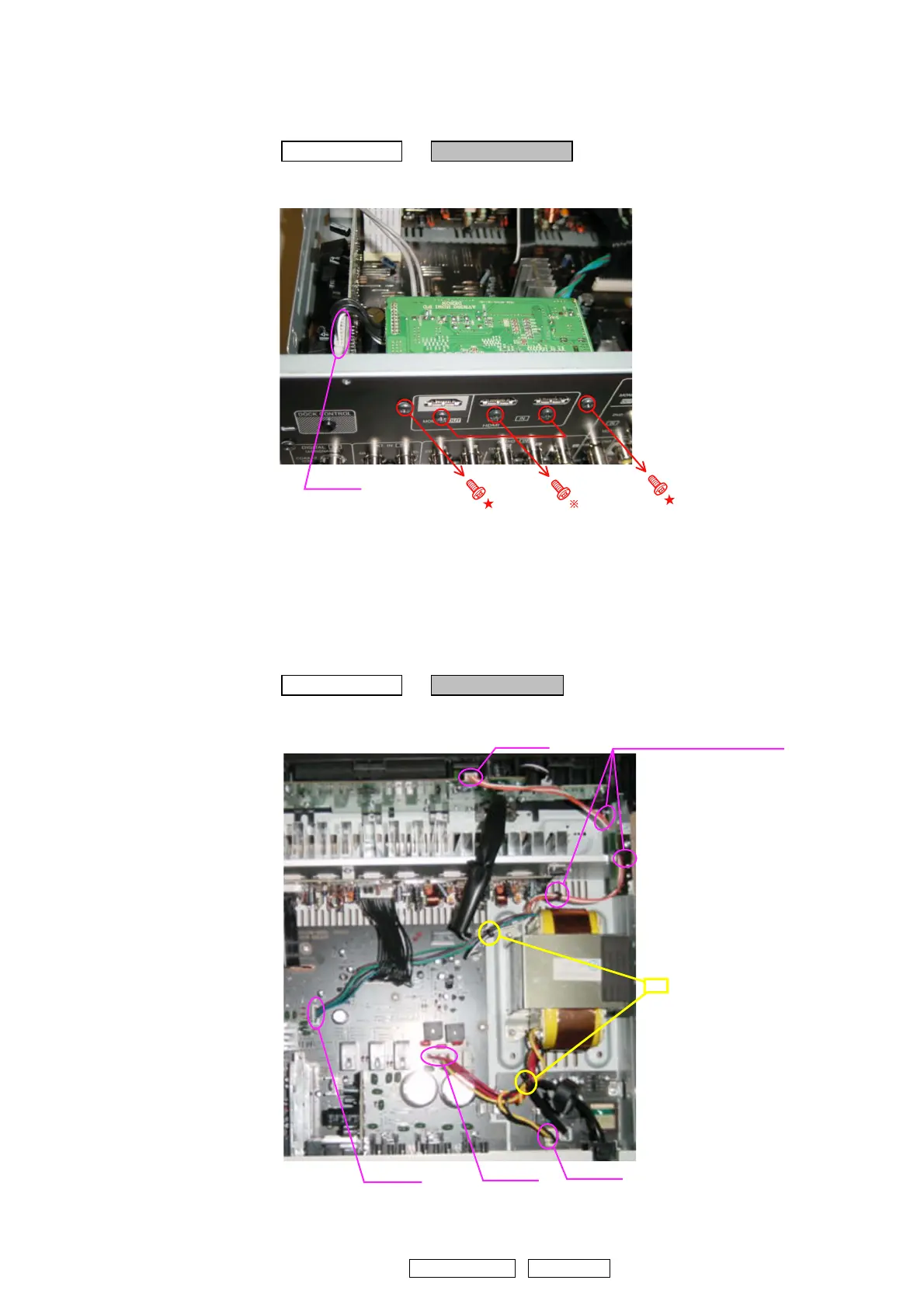

3. PCB ASSY HDMI
(1) Disconnect the connector wire and remove the screws.
4. POWER TRANS
(1) Disconnect the connector wires.
Proceeding : CABINET TOP → PCB ASSY HDMI
Picture F
CP01
Proceeding : CABINET TOP → POWER TRANS
Top view
CP102
CP701
CP101
CP305
CORD HOLDER : Loose
cut
