13
DHT-390XP
AVR-390

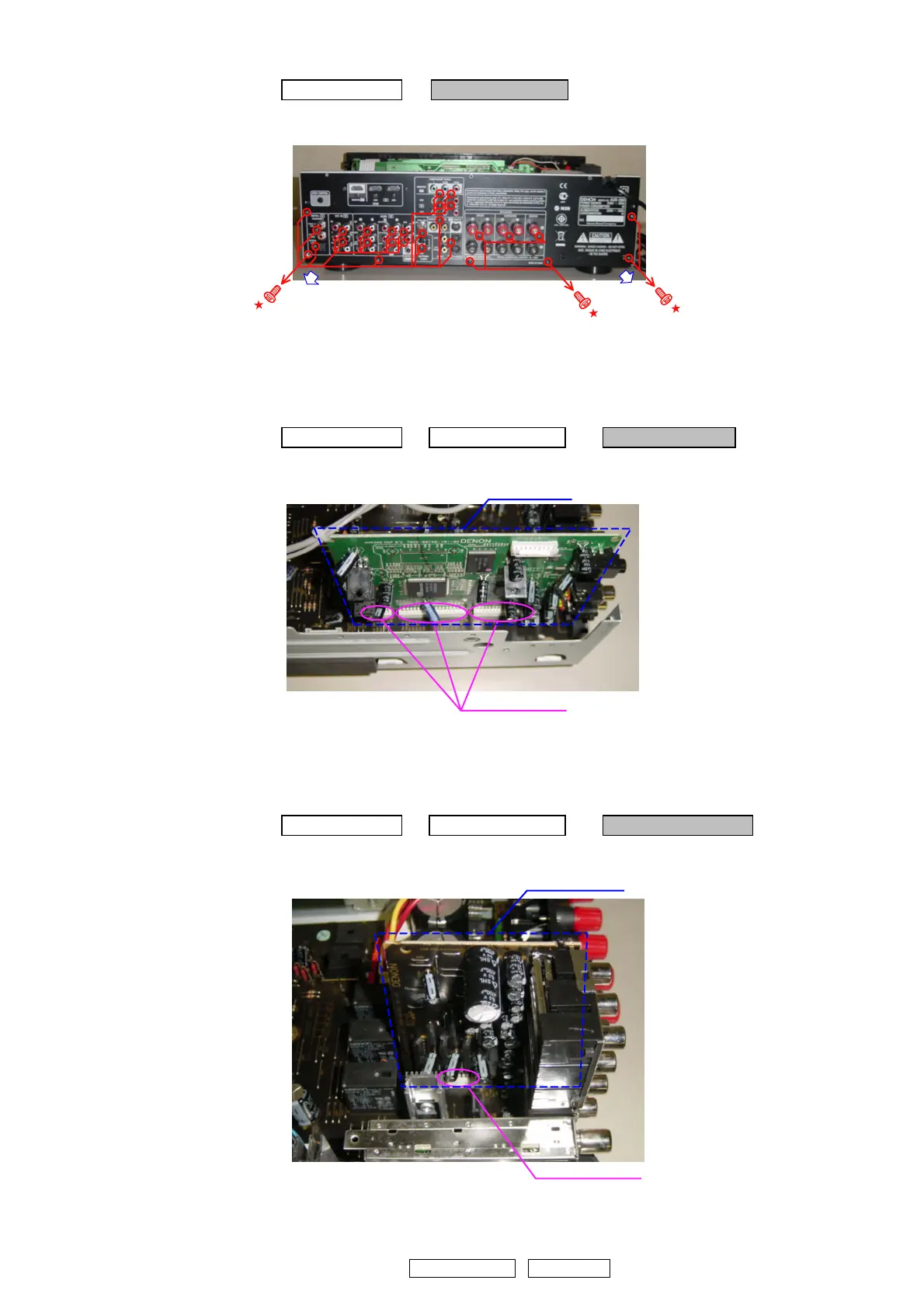

5. CHASSIS BACK
(1) Remove the screws.
6. PCB ASSY DSP
(1) Disconnect the Board to board.
7. PCB ASSY VIDEO
(1) Disconnect the Board to board.
Proceeding : CABINET TOP → CHASSIS BACK
Picture A
Proceeding : CABINET TOP → CHASSIS BACK → PCB ASSY DSP
Top view
Board to board
DSP Board
Proceeding : CABINET TOP → CHASSIS BACK → PCB ASSY VIDEO
Top view
Board to board
VIDEO Board
