Audio cable
Connecting a DVD player
• To enjoy surround sound, we recommend connecting the DVD player using digital audio connections.
• Connect the DVD player’s video output to the TV’s video input.
Connecting the TV
To enjoy surround-compatible digital broadcast programs, we recommend connecting the digital TV using
digital audio connections.
• When playing the
TV’s sound over the DHT-FS3, set the TV’s volume to the minimum.
Connections
• The DHT-FS3 is equipped for three digital audio inputs, as well as analog audio and iPod audio inputs.
• A DENON Control Dock for iPod (ASD-1R, sold separately) is necessary to connect an iPod.
• Here we describe how to connect a DVD player, TV and iPod.
Cable indications

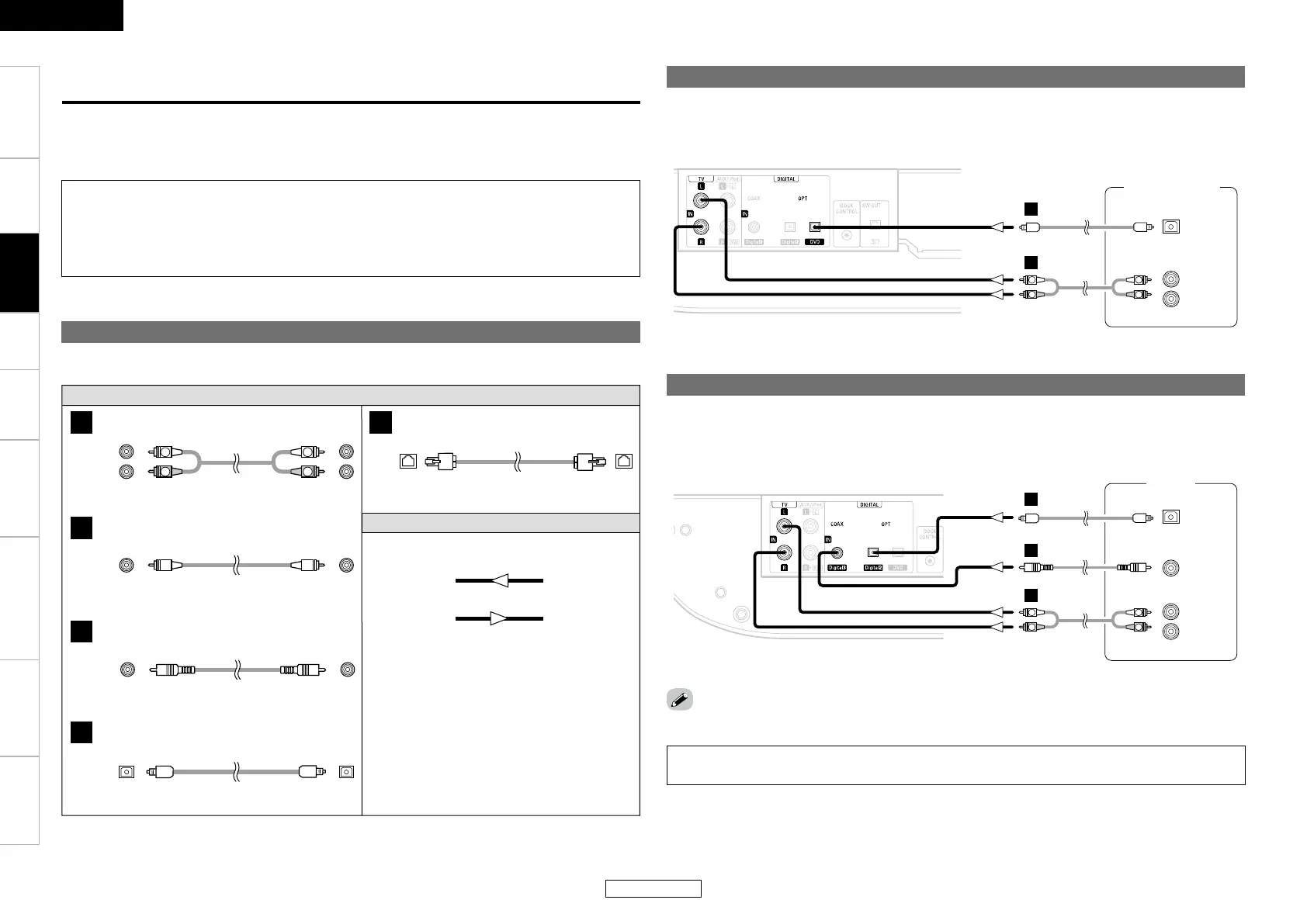

Connect using the connection cables shown below.
3
-
"6%*0065
015*$"-
065
$0"9*"-
065
PS
57
D
C
R
L
R
L
A
<View from the bottom>
DVDプレーヤー
3
-
"6%*0065
015*$"-
065
D
R
L
R
L
A
<View from the bottom>
A
Analog connections (Stereo)
RCA pin-plug cable
C
Digital connections (Coaxial)
Coaxial cable (75 Ω/ohms pin-plug cable)
Audio signal:
IN OUT
D
Digital connections (Optical)
Optical fiber cable
Signal direction
B
Analog connections (Monaural, for subwoofer)
Pin-plug cable
E
Speaker connections
Speaker cable
(White)
(Red)
OUT IN
NOTE:
• Remove the cap on the tip of the included optical transmission cable before connecting it.
NOTE:
• Do not plug in the power supply cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power supply cords together with connection cables. Doing so can result in humming
or noise.
ENGLISH
Connections
DVD player
or
To Next Page
