Part names and functions

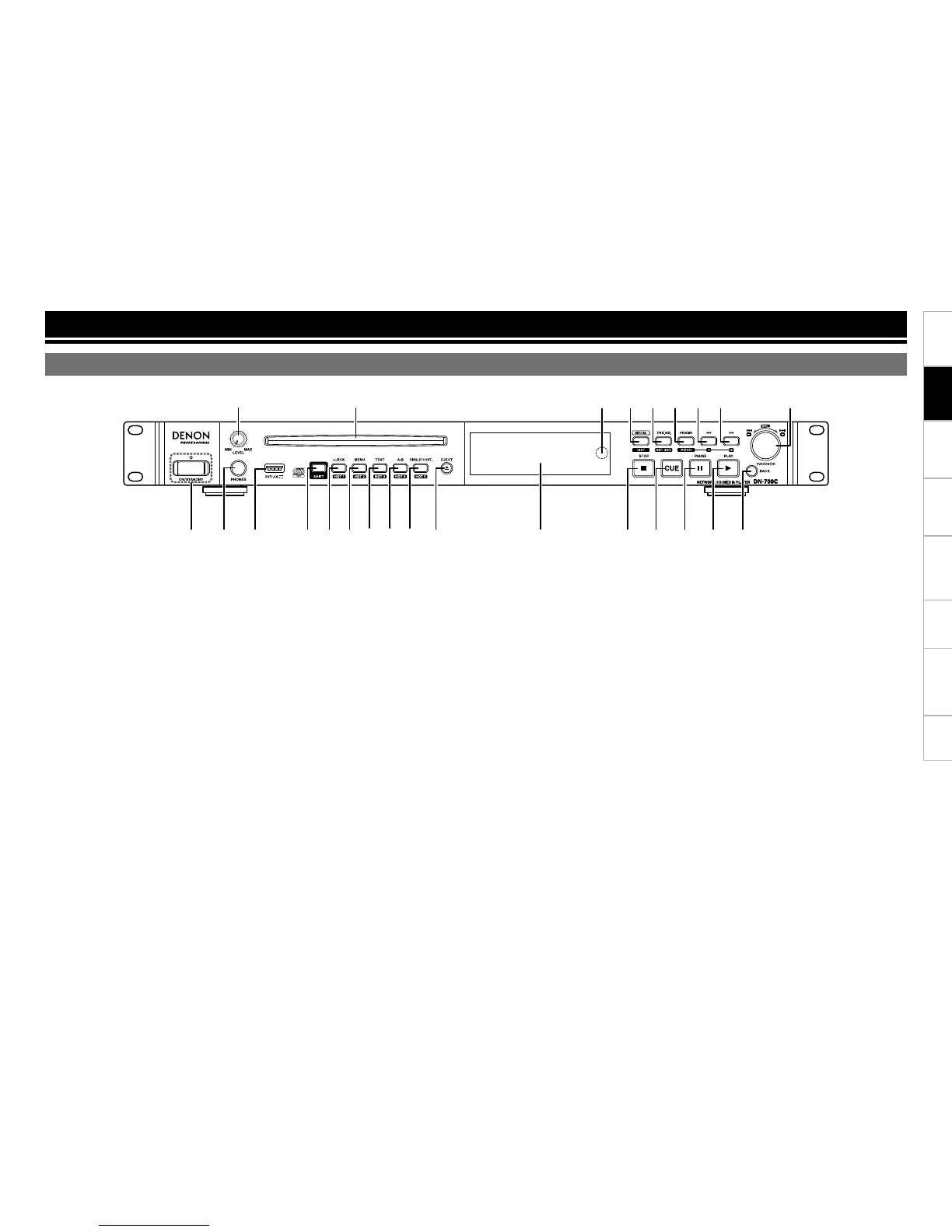

Front Panel
For buttons not explained here, see the page indicated in parentheses ( ).
W2 W1 W0 Q9 Q8 Q7W3W4W5
q
Q6
Q0 Q1 Q2 Q5Q3 Q4w tre y oiu
q ON/STANDBY, Power indicator
························································· (16, 24, 28)
Turns the power on and off.
GPower indicator statusH
Power on: Off
Normal standby: Red
Network standby: Orange
w Headphones jack (PHONES) ······················ (13)
e USB port ······················································ (14)
Connects to a USB device or iPod.
r SHIFT button (SHIFT) ································· (16)
When the LED is lit, the function assigned to
SHIFT is enabled.
t LOCK/HOT 1 button ··································· (47)
Press and hold for more than 1 second to switch
between all keys locked, specific button lock,
and all keys unlocked.
•Press while holding down as the r SHIFT to
play back from the location set as Hot Start #1.
(Same applies for y to o HOT 2 to 5 buttons.)
•When in Hot Set mode, the currently selected
track is registered as Hot Start #1. (Same
applies for y to o HOT 2 to 5 buttons.)
y MENU/HOT 2 button ··························· (27, 30)
Displays the main menu.
u TEXT/HOT 3 button ··································· (27)
Scrolls the file name and text information on
display.
i A-B/HOT 4 button ································ (25, 27)
Sets A-B repeat playback.
o SINGLE/CONT./HOT 5 button ············· (26, 27)
Switches the playback mode (SINGLE and
CONTINUOUS).
Q0 EJECT button ·············································· (14)
Q1 Display ··························································· (8)
Q2 Stop/Cancel Button (2)
············································· (16, 21, 24, 25, 28)
Q3 CUE button ················································· (24)
Q4 Pause button (3) ·································· (24, 28)
Q5 Play button (1) ····································· (24, 28)
Q6 BACK button ····························· (16, 21, 23, 28)
Returns to the previous operation.
•Press and hold the button for more than 1
second in the file list display to return to normal
screen.
Q7 Jog Dial/
PUSH ENTER button ················ (16, 21, 24, 25)
Moves between tracks.
•Rotate the jog dial while holding down the
r SHIFT to adjust the output level.
•This is used to select items displayed in the
menu.
Q8 Fast Forward/Pitch + Button (7) ··········· (26)
Q9 Fast Rewind/Pitch - Button (6) ············· (26)
W0 FRAME/PITCH button ······························ (25)
Switches to frame search mode.
•Press while holding down the r SHIFT button
to switch the pitch on/off.
W1 TRK NO./HOT SET button ························· (26)
Selects tracks directly.
•Press while holding down the r SHIFT to
switch to HOT SET Mode and register the
current track to Hot Start.
W2 MEDIA/LIST button ······························ (23, 24)
Switches between media.
•Press while holding down the r SHIFT to
display the file list.
W3 Remote control signal receiver
······································································· (7)
W4 Disc Slot ······················································ (14)
W5 Headphone Volume Adjustment Knob
(LEVEL) ························································ (13)
Adjusts the volume of the headphones.
Press the knob to make it spring out.
After adjusting the volume, press the knob back
in again.
