Getting started
Part names
and functions
Connections Control functionSetting Defaults
File and folder
settings
Playback Information

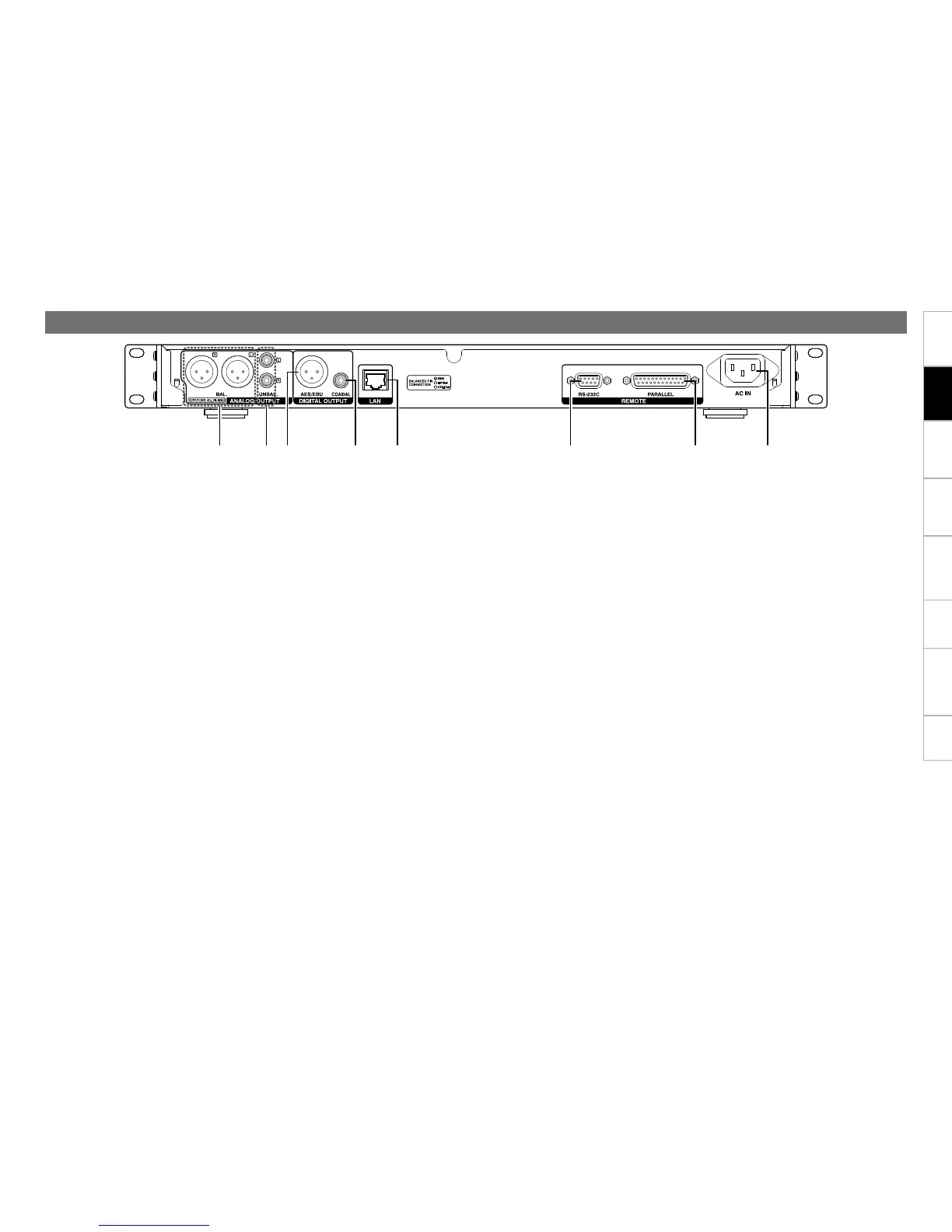

Rear Panel
e y u itrq w
q Analog output (balanced) terminal ······································· (12)
•Pin Arrangement: 1. GND/2. Hot/3. Cold
•XLR Type
w Analog output (unbalanced) terminal ··································· (12)
•RCA Type
e Digital output (XLR) terminal ················································· (12)
•Pin Arrangement: 1. Common/2. Hot/3. Cold
•Signal Format: IEC-60958 Type I (AES/EBU)
r Digital output (RCA) terminal ··············································· (12)
•IEC60958 Type g
•Signal Format: IEC-60958 Type g (COAXIAL)
t LAN Terminal ··········································································· (30)
•IEEE 802.3u/10/100Base-T(X) / RJ-45
y RS-232C Terminal ···································································· (12)
u Parallel port (PARALLEL) ························································ (12)
•25pin DSUB Connector (Female)
i AC Inlet (AC IN) ········································································ (12)
