5
DN-A100
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s

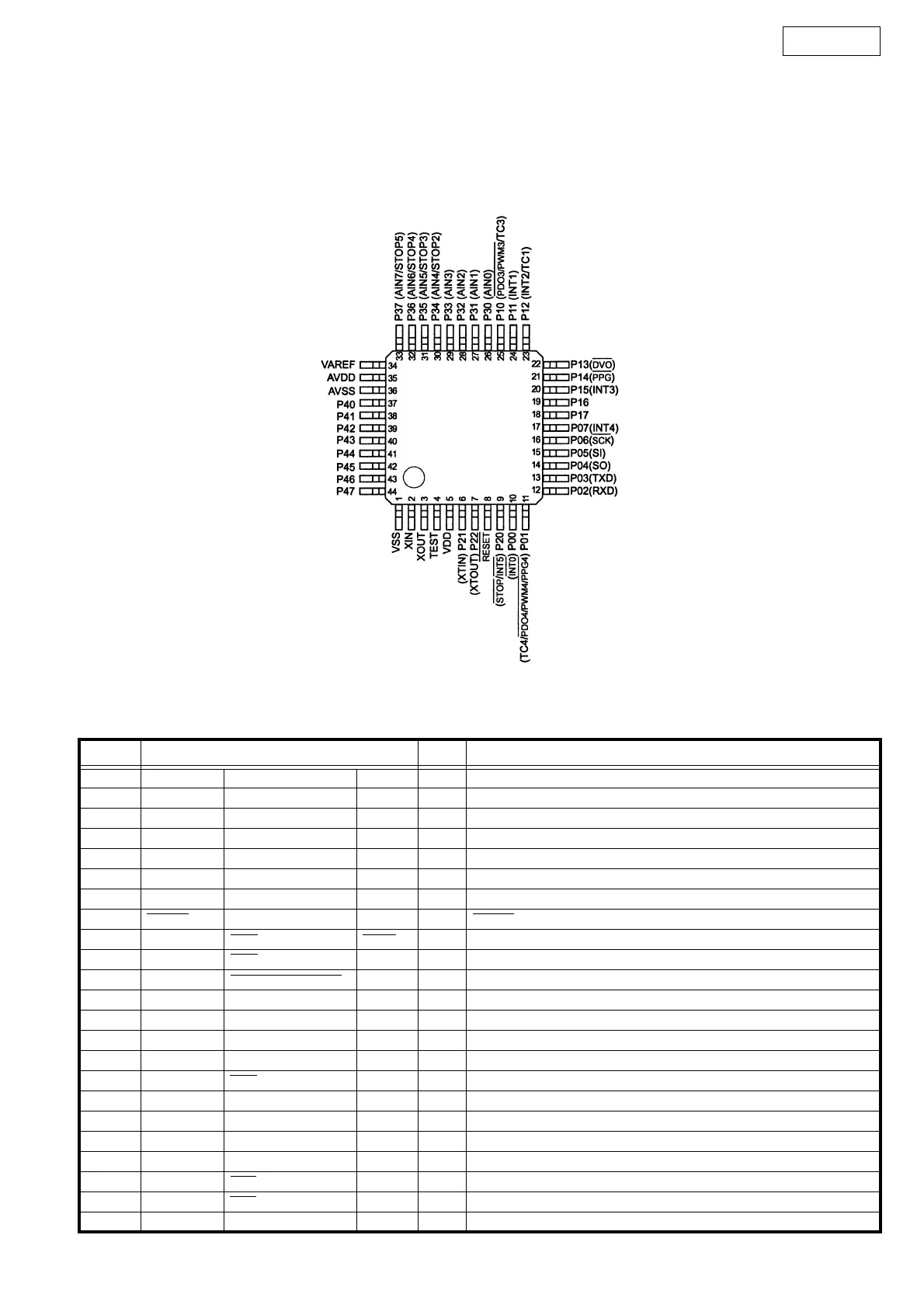

TMP86FH47AUG (IC51)
TMP86FH47AUG Terminal Function
Pin No. Port Name I/O Function
1 VSS VSS
2 XIN X IN
3 XOUT X OUT
4 TEST TEST
5VDD VDD
6 P21 XTIN O MUTE/STANDBY LED
7P22 XTOUT O
8 RESET I RESET
9 P20 INT5 STOP I STOP ACT.
10 P00 INT0 I PROTECTOR
11 P01 PDO4/PWM4/PPG4 TC4 O P. DIRECT RELAY
12 P02 RXD I RXD
13 P03 TXD O TXD
14 P04 SO O DATA
15 P05 SI O STROBE
16 P06 SCK O CLK
17 P07 INT4 O S. DIRECT RELAY
18 P17 I P. DIRECT SW
19 P16 I S. DIRECT SW
20 P15 INT3 AC RELAY 1
21 P14 PPG O VOLUME UP
22 P13 DVO O VOLUME DOWN
23 P12 INT2 TC1 I REMOTE IN
To Next Page
