Denon DN-F650R Service Manual

38
AUDIO SIGNAL LINE (ANALOG OUTPUT)
TO MAIN UNIT
TO MAIN UNIT
TO POWER UNIT
9PDSUB
RS-232C
REMOTE1
REMOTE2
TO MAIN UNIT
LED_A(WHT)
LED_K(ORG)
8U-210087-2
I/O B UNIT
8U-210087-6
STB LED UNIT
8U-210087-4
HP JACK UNIT
8U-210087-5
JOG UNIT
CW031
( )
REMOTE LED1_RED
REMOTE LED2_GRN
C661 100P
D_GND..
C656
0.01
C665 100P
D_GND..
D_GND..
C660 0.01
C657
1000P
D_GND..
C633 0.01
F_GND1
D_GND..
C805 22P
C662 100P
C813
2200P
D_GND..
-15VA..
D_GND...
+3.3VD
A_GND..
C659 100P
D_GND..
C815
470P
A_GND..
C666 100P
C634 1000P
A_GND..
D_GND..
CX401
40P-FFC-BASE
1
+5VD
2
+5VD
3
+5VD
4
F.FWD_COM
5
F.RWD_COM
6
PITCH_COM
7
MARK_SEARCH+_COM
8
MARK_SEARCH-_COM
9
MARK_COM
10
REC_PAUSE_COM
11
REC_COM
12
PITCH+_COM
13
PITCH-_COM
14
TRACK_JUMP-_COM
15
TRACK_JUMP+_COM
16
SKIP_BACK_COM
17
STOP_COM
18
PLAY_PAUSE_COM
19
PLAY_COM
20
STOP_TALLY
21
PLAY_PAUSE_TALLY
22
PLAY_TALLY
23
REC_PAUSE_TALLY
24
REC_TALLY
25
+3.3VD
26
+3.3VD
27
TxD
28
NC(RTS)
29
RxD
30
NC(CTS)
31
REMOTE2
32
REMOTE_LED1
33
REMOTE_LED2
34
REMOTE1
35
D_GND
36
D_GND
37
D_GND
38
D_GND
39
D_GND
40
D_GND
C653 0.1
C655 0.1
DAN202K
D601
DAN202K D602 DAN202K D603 DAN202K D604 DAN202K D605 DAN202K D606 DAN202K D607 DAN202K D608
DAP202K
D609
DAP202K
D610
DAP202K
D611
DAP202K
D612
DAP202K
D613
DAP202K
D614
DAP202K
D615
DAP202K
D616
DAN202K
D620
+3.3VD
DAP202K
D618
DAN202K
D619
+3.3VD
DAP202K
D617
FG
9P-DSUB
CX402
1
2
3
4
5
6
7
8
9
OPEN C818
DAN202K
D802
DAP202K
D801
+15VA..
-15VA..
25P-DSUB
CX251
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
+5VD..
FG
1
3
2
4
5
EC11B15242AE
S901
6
7
JK602
G
1
Lch
2
Rch
3
L619 BLM18BD601SN1D
L611 BLM18BD601SN1D
L600 BLM18BD601SN1D
L613 BLM18BD601SN1D
L606 BLM18BD601SN1D
L603 BLM18BD601SN1D
L605 BLM18BD601SN1D
L612 BLM18BD601SN1D
L614 BLM18BD601SN1D
L602 BLM18BD601SN1D
L604 BLM18BD601SN1D
L629 BLM18BD601SN1D
L607 BLM18BD601SN1D
L617 BLM18BD601SN1D
L618 BLM18BD601SN1D
L608 BLM18BD601SN1D
L601 BLM18BD601SN1D
L615 BLM18BD601SN1D
L609 BLM18BD601SN1D
L616 BLM18BD601SN1D
L610 BLM18BD601SN1D
L620 BLM18BD601SN1D
L623
BLM18BD601SN1D
L624 BLM18BD601SN1D
L622
BLM18BD601SN1D
L621
BLM18BD601SN1D
L625 BLM18BD601SN1D
L627 BLM18BD601SN1D
CW031
CZ031
L807 BLM21PG221
L806 BLM21PG221
L811 BLM18BD102SN1D
L808 BLM18BD102SN1D
L810 BLM18BD102SN1D
W801
GND-TERMINAL
CX071
7P-PHs
1
ENCORDER_B
2
ENCORDER_A
3
JOG_SW
4
D_GND
5
D_GND
6
REC_VOL
7
+3.3VD
CX061
6P-PHs
1
-15VA
2
+15VA
3
Lch_AUDIO
4
A_GND
5
Rch_AUDIO
6
MUTE
TH601
OPEN
+15VA..
L804
BLM18BD102SN1D
L803
BLM18BD102SN1D
C654 100/25 C650 100/25
C804
47/25
C803
47/25
C801
47/25
C802
47/25
C810
220/25
C809
220/25
R669
10K
R673
10K
R677
10K
R682
10K
R675
10K
R671
10K
R672
10K
R695
10K
R674
10K
R676
10K
R668
10K
R680
10K
R681
10K
R679
10K
R678
10K
R670
10K
R652 22
R654 22
R665 22
R655 22
R657 22
R664 22
R666 22
R656 22
R662 22
R653 22
R659 22
R694 22
R663 22
R658 22
R661 22
R660 22
R651
0
R691
0
R689
10
R683
10
R684
100
R686
0
R685
1K
R688
0
R687
0
R902
0
R901
0
R903
0
R601
330
R824
330
L802
0
R816
82
L805
0
R815
82
R812
82
R822
330
L801
0
R811
82
R826
10K
R817
0
R819 OPEN
R823
330
R814
47K
R818
0
R825
330
+3.3VD+5VD..
R667
0
+15VA..
C807
0.1
R820 OPEN OPEN
C811
C812
2200P
C814
470P
R813
47K
R827
10K
C806 22P
C808
0.1
-15VA..
(MUTE OFF)
R809
OPEN
-15VA..
(MUTE_ON)
R810
OPEN
+15VA..
RK097111T065
VR901
1
3
2
4
6
5
RK097122T017
VR801
1
3
2
IC801
NJM4556AV
(2/2)
7
4
6
5
IC801
NJM4556AV
(1/2)
1
8
2
3
JK801
G
1
Lch
2
Rch
3
LD901
SML310BAT-T86
KTC2875B
TR802
KTC2875B
TR803
KTC2875B
TR801
KTC2875B
TR804
OPENC668 OPENC667
R693 0
R696 0
R699 10K
R700 10K
W802
GND-TERMINAL
D_GND..
R690
2.2K
R806
10K
R805
10K
8.2KR828
8.2KR829
R807 56K
R808 56K
PHONE-JACK(JY-3541A)
JK601
1
1a
3
4e
2
3c
4
2b
5
A_GND..
ST801
STYLE-PIN
50mm
87654321
A
B
C
D
E
F

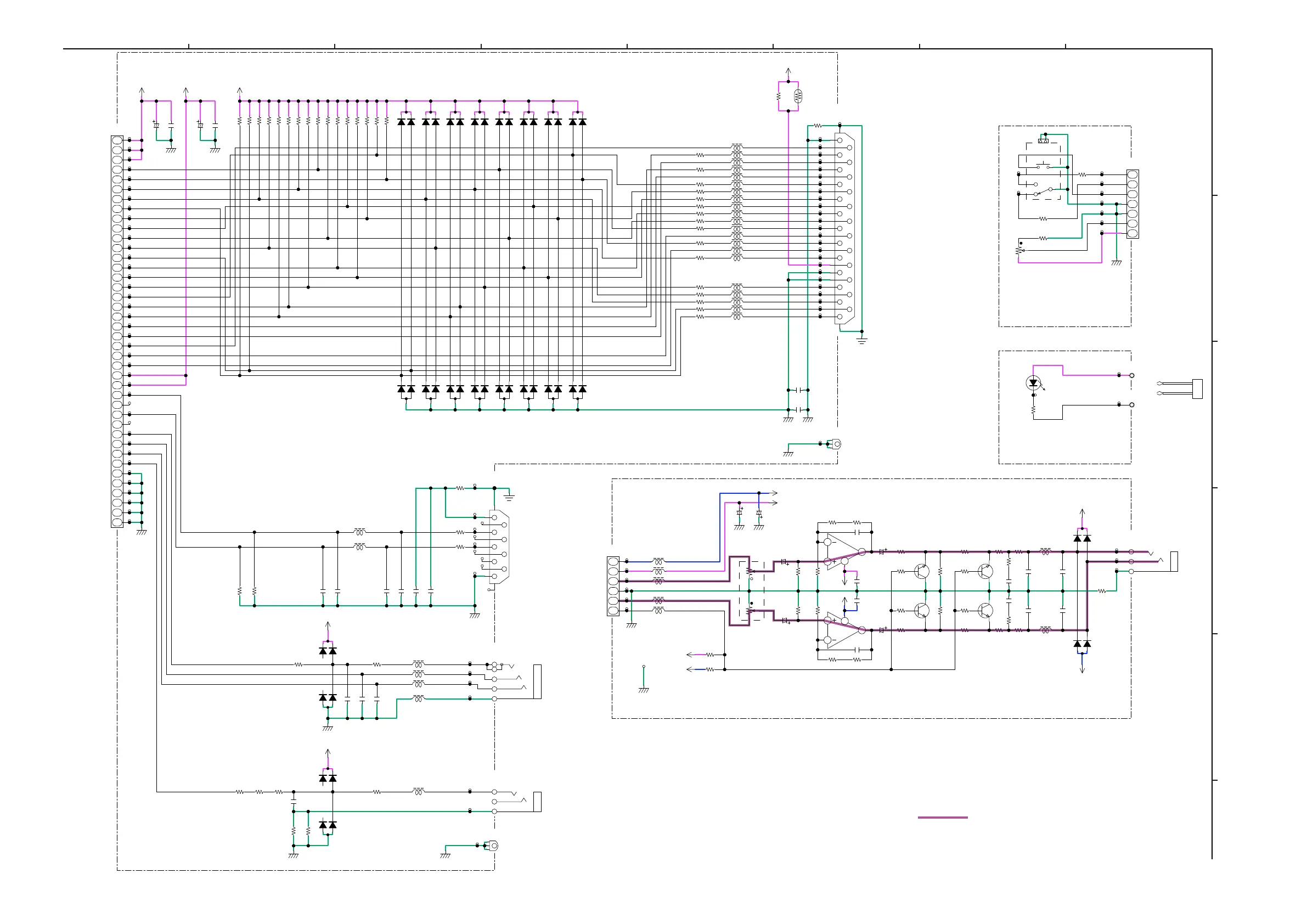

SCHEMATIC DIAGRAMS (9/10)
