8

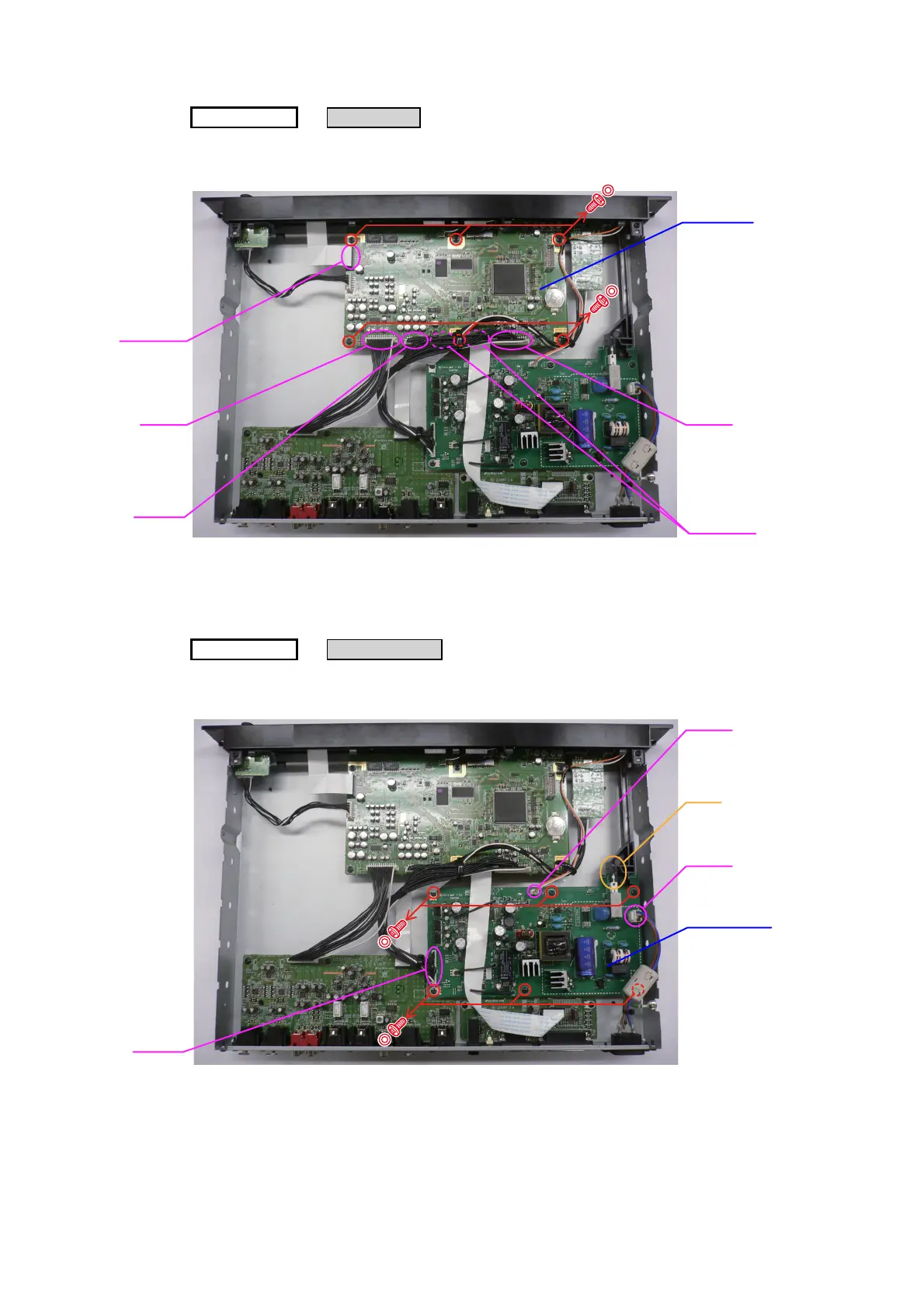

2. MAIN
UNIT
(1)
Disconnect the connector wires and FFC cable, then remove the screws.
3. POWER
UNIT
(1)
Disconnect the connector wires, then remove the screws. Disconnect the LINK.
TOP COVER
MAIN UNIT
→
Proceeding :
FFC cable
FFC cable
CY061
CY141
CY161
MAIN UNIT
TOP COVER
POWER UNIT
→
Proceeding :
CX061
CX031
CX021
LINK
POWER UNIT
7
9
Table of Contents
Safety Precautions
2
Note for Schematic Diagram
3
Note for Parts List
3
Technical Specifications
4
Front Panel Assy
7
Top Cover
7
Main Unit
8
Power Unit
8
Service Mode
10
About Replace the Microprocessor with a New One
12
Version Upgrade Procedure of Firmware
12
Troubleshooting
13
Power Pwb
15
Audio Unit
16
Block Diagram
21
Level Diagram
22
Printed Wiring Boards
24
Schematic Diagrams
30
Exploded View
41
Parts List of Exploded View
42
Packing View
43
Parts List of Packing & Accessories
43
Packing Case
43
Pin Assignments
64
Functional Block Diagram
64
Absolute Maximum Ratings
64
Parts List of P.w.b. Unit
76
