7

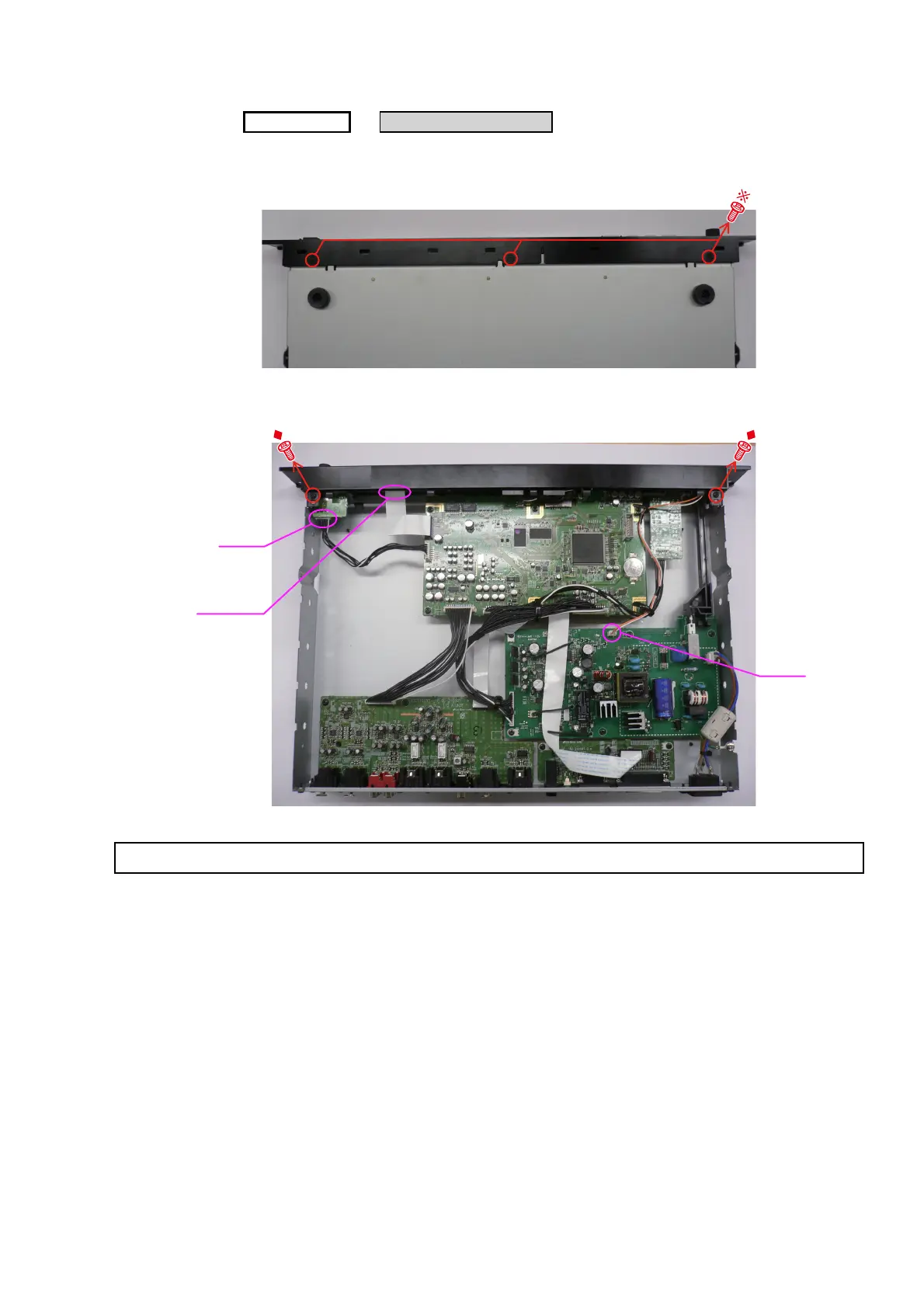

1. FRONT
P
ANEL
ASSY
(1)
Remove the screws.
(2)
Disconnect the connector wires and FFC cable, then remove the screws.
TOP COVER
FRONT PANEL ASSY
→
Proceeding :
View from bottom
CX071
CX031
FFC cable
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT P
ANEL
ASSY
.
6
8
Table of Contents
Safety Precautions
2
Note for Schematic Diagram
3
Note for Parts List
3
Technical Specifications
4
Front Panel Assy
7
Top Cover
7
Main Unit
8
Power Unit
8
Service Mode
10
About Replace the Microprocessor with a New One
12
Version Upgrade Procedure of Firmware
12
Troubleshooting
13
Power Pwb
15
Audio Unit
16
Block Diagram
21
Level Diagram
22
Printed Wiring Boards
24
Schematic Diagrams
30
Exploded View
41
Parts List of Exploded View
42
Packing View
43
Parts List of Packing & Accessories
43
Packing Case
43
Pin Assignments
64
Functional Block Diagram
64
Absolute Maximum Ratings
64
Parts List of P.w.b. Unit
76
