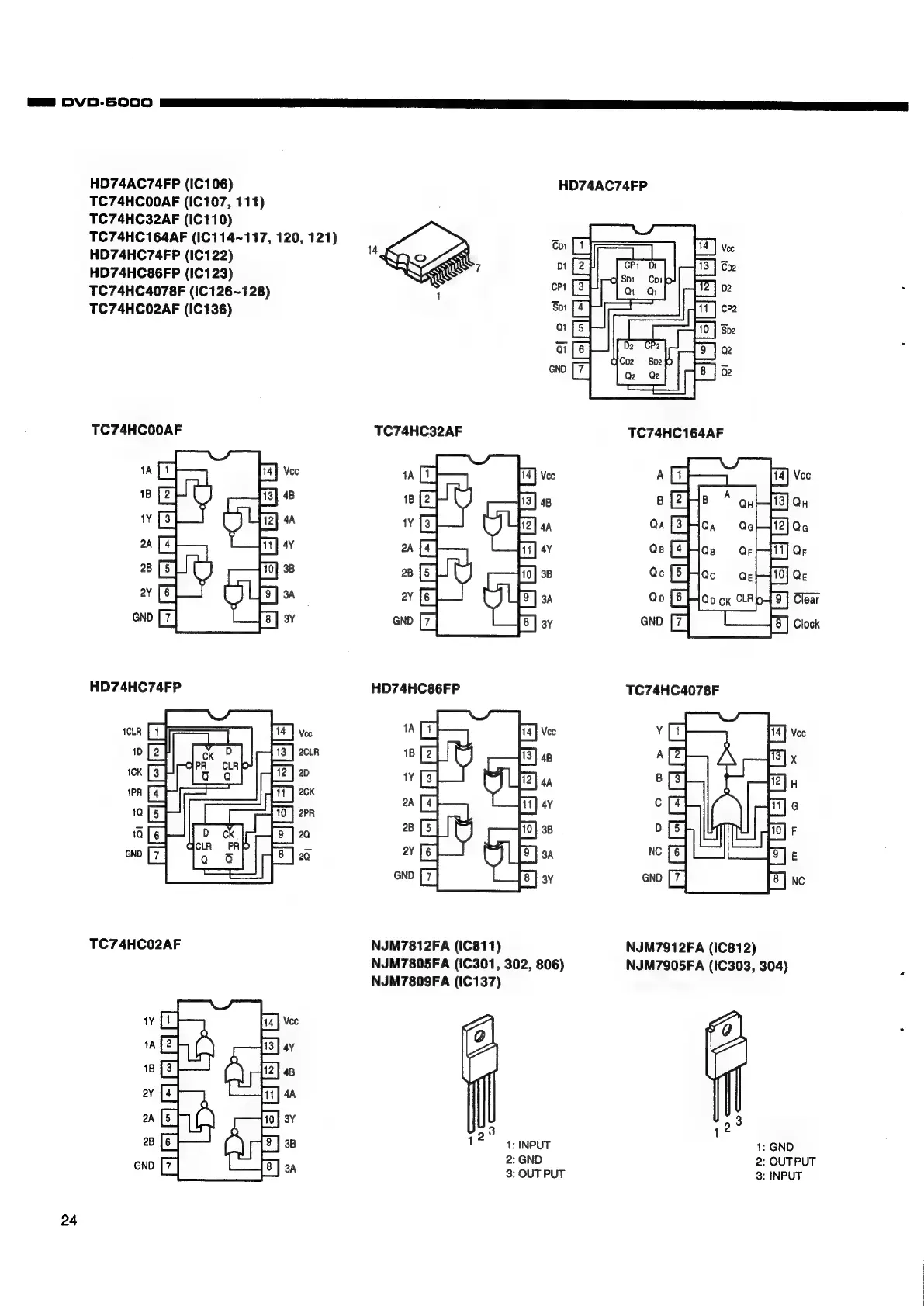

mm OVD-S5000
HD74AC74FP (IC106)
TC74HCOOAF (IC107, 111)
TC74HC32AF (1C110)
TC74HC164AF (1C114~117, 120, 121)
HD74HC74FP (IC122)
HD74HCS86FP (IC123)
TC74HC4078F (iC126~128)
TC74HCO2AF (IC 136)
TC74HCOOAF
TC74HCO2AF
24
HD74AC74FP
TC74HC32AF
NJM7812FA (C811) NJM7912FA (IC812)
NJM7805FA (1C301, 302, 806) NJM7905FA (IC303, 304)
NJM7809FA (IC137)
1 1: INPUT 1: GND
2: GND 2: OUTPUT
3: OUT PUT 3: INPUT
