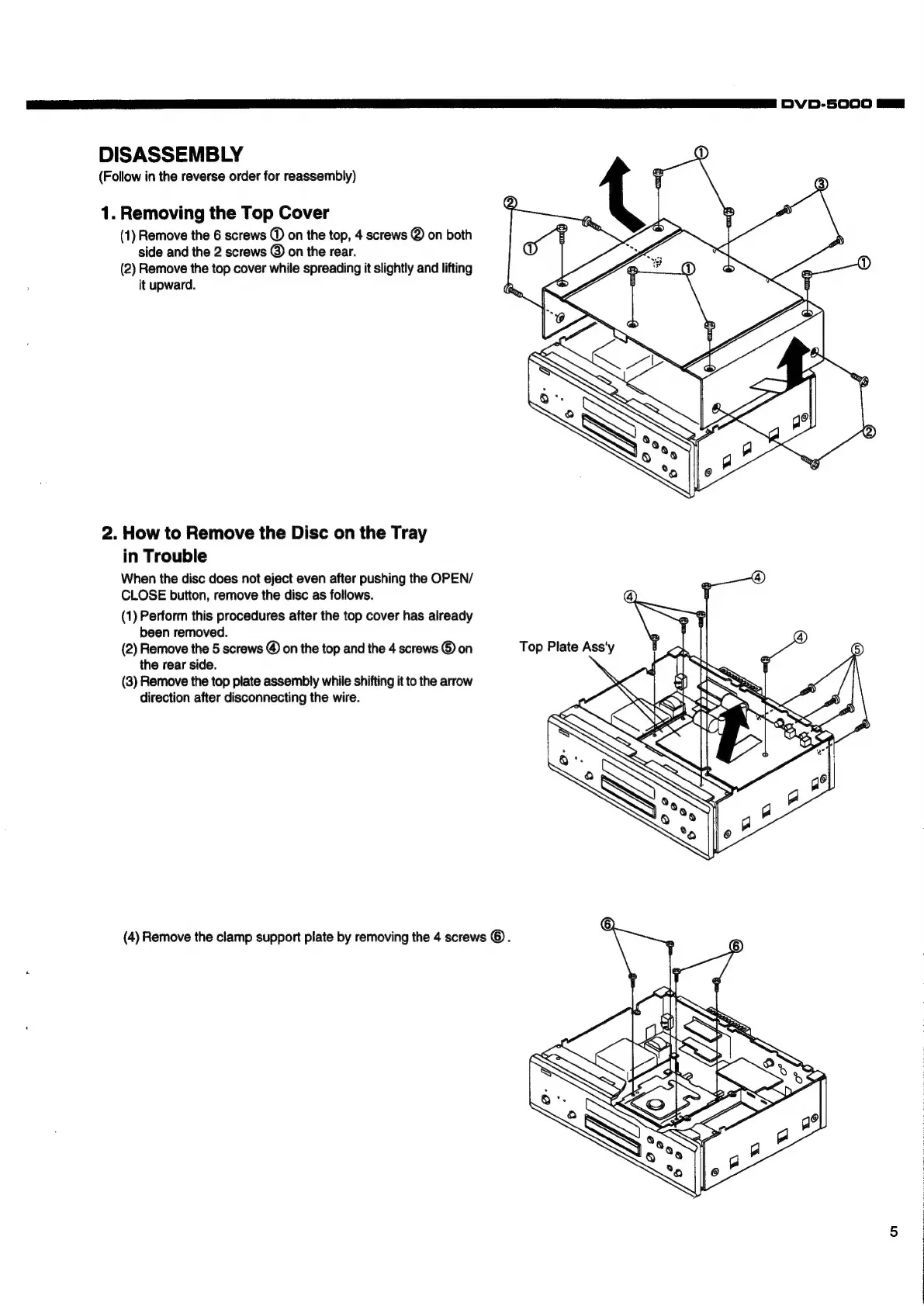

DISASSEMBLY
(Follow in the reverse order for reassembly)
1. Removing the Top Cover
(1) Remove the 6 screws © on the top, 4 screws @ on both
side and the 2 screws @ on the rear.
(2) Remove the top cover while spreading it slightly and lifting
it upward.
2. How to Remove the Disc on the Tray
in Trouble
When the disc does not eject even after pushing the OPEN/
CLOSE button, remove the disc as follows.
(1) Perform this procedures after the top cover has already
been removed.
(2) Remove the 5 screws @ on the top and the 4 screws © on
the rear side.
(3) Remove the top plate assembly while shifting it to the arrow
direction after disconnecting the wire.
(4) Remove the clamp support plate by removing the 4 screws ©.
