14

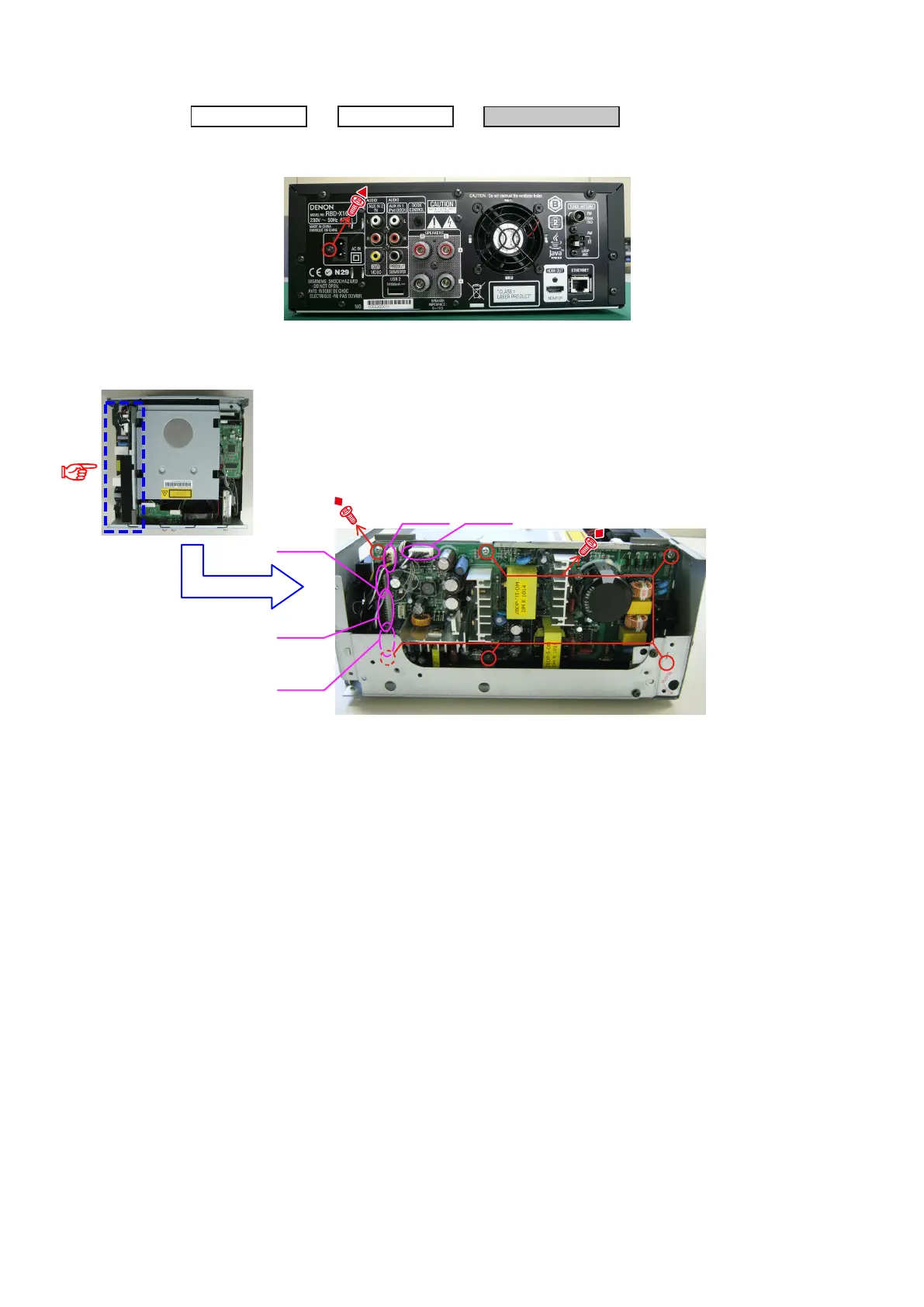

7. PCB SMPS UNIT
(1) Removethescrews
(2) Removethescrews,thendisconnecttheconnectorwires..
COVER TRAY
CABINET TOP
→
→
PCB SMPS UNIT
Proceeding :
Direction of
photograph: A
Direction of photograph: C
CN243
CN241
CN244
CN221CN242
