Operation Section
1
–
52

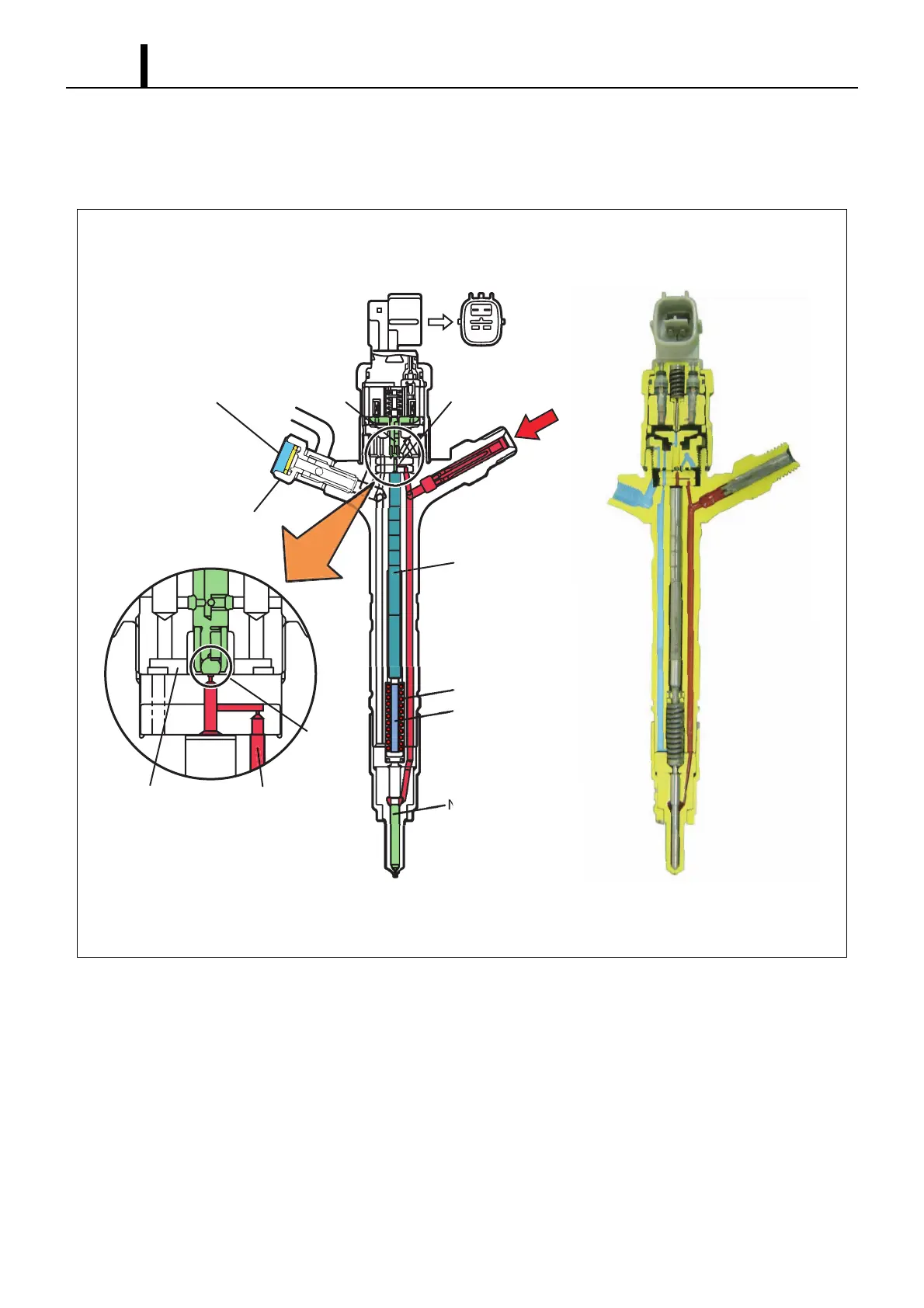

(2) X2 Type
• By reducing the injector actuation load, the injector has been made more compact and energy efficient, and its injec-
tion precision has been improved. The TWV directly opens and closes the outlet orifice.
Control
Chamber
Solenoid
Valve
Hollow Screw with Damper
O-ring
Command Piston
Nozzle Spring
Pressure Pin
Nozzle Needle
Seat
High-Pressure Fuel
Leak Passage
From Rail
Q000864E
