Denso CRS - DPF System (Diesel Particulate Filter)

Operation Section
1
–
80
7.5 DPF System (Diesel Particulate Filter)
(1) General Description
• This system reduces emissions of PM (particulate matter). In order to collect PM, a DPF cleaner with built-in catalytic
filter is mounted on the center pipe. The collected PM is handled with combustion processing during operation.

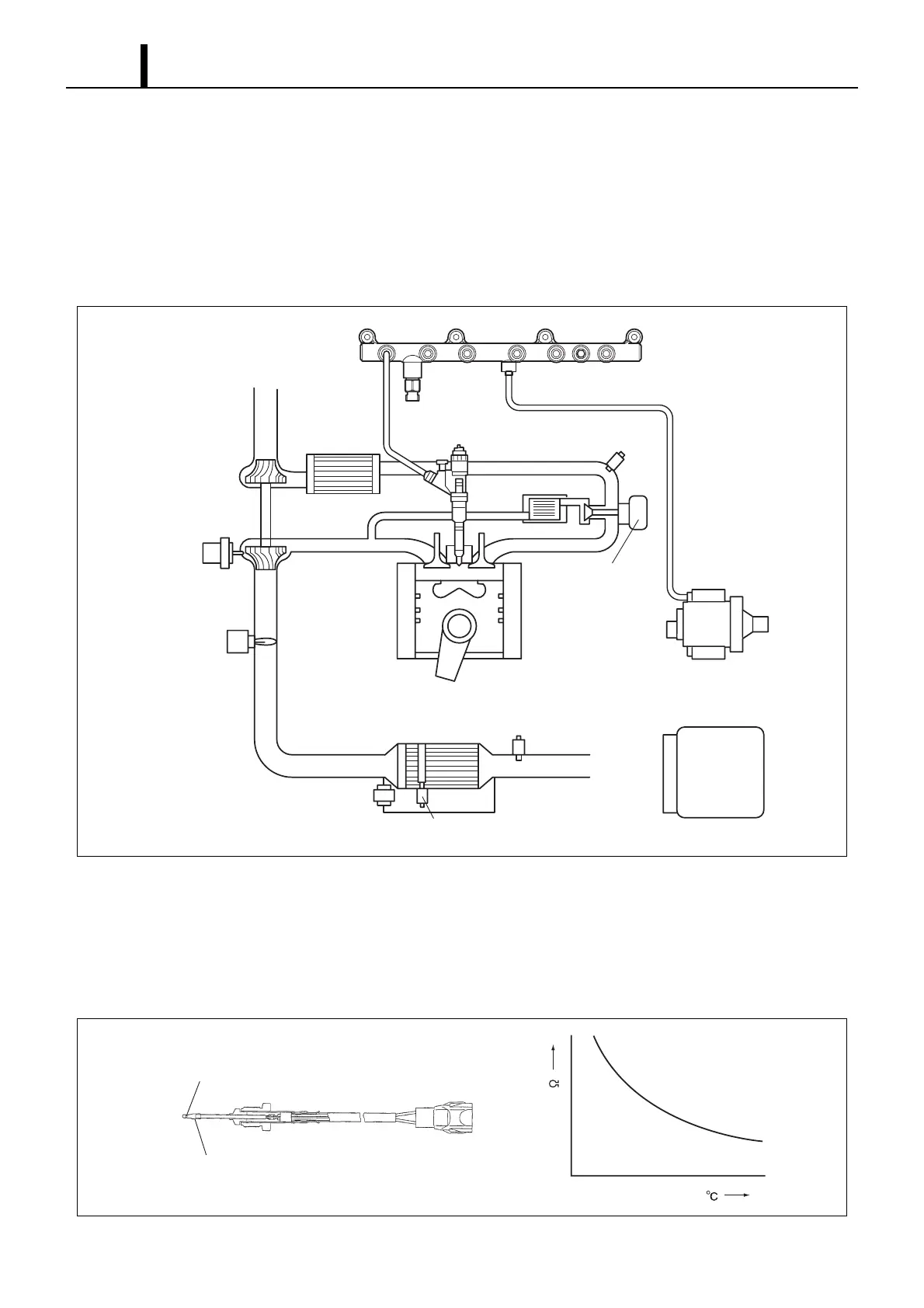

(2) System Configuration
(3) Various Sensors
Exhaust Gas Temperature Sensor
• The exhaust gas temperature sensor is installed to the front and rear of the DPF to detect the temperature in these
positions. The engine ECU controls the exhaust temperature for PM combustion based on the signals from this sen-
sor. The sensor element is a thermistor.
Q000908E
Rail
G2 Injector
Intercooler
VNT Actuator
Equilibrium
Actuator
EGR Cooler
Intake Air
Pressure Sensor
EGR Valve
Supply Pump
DPF (with
Oxidation Catalyst)
Exhaust Gas
Temperature Sensor
Exhaust Gas Temperature Sensor
Differential Pressure Sensor
ECU & EDU
Q000909E
Exhaust Gas Temperature ( )
Thermistor Element
Cover
Resistance Value ( )
