Operation Section
1
–
85

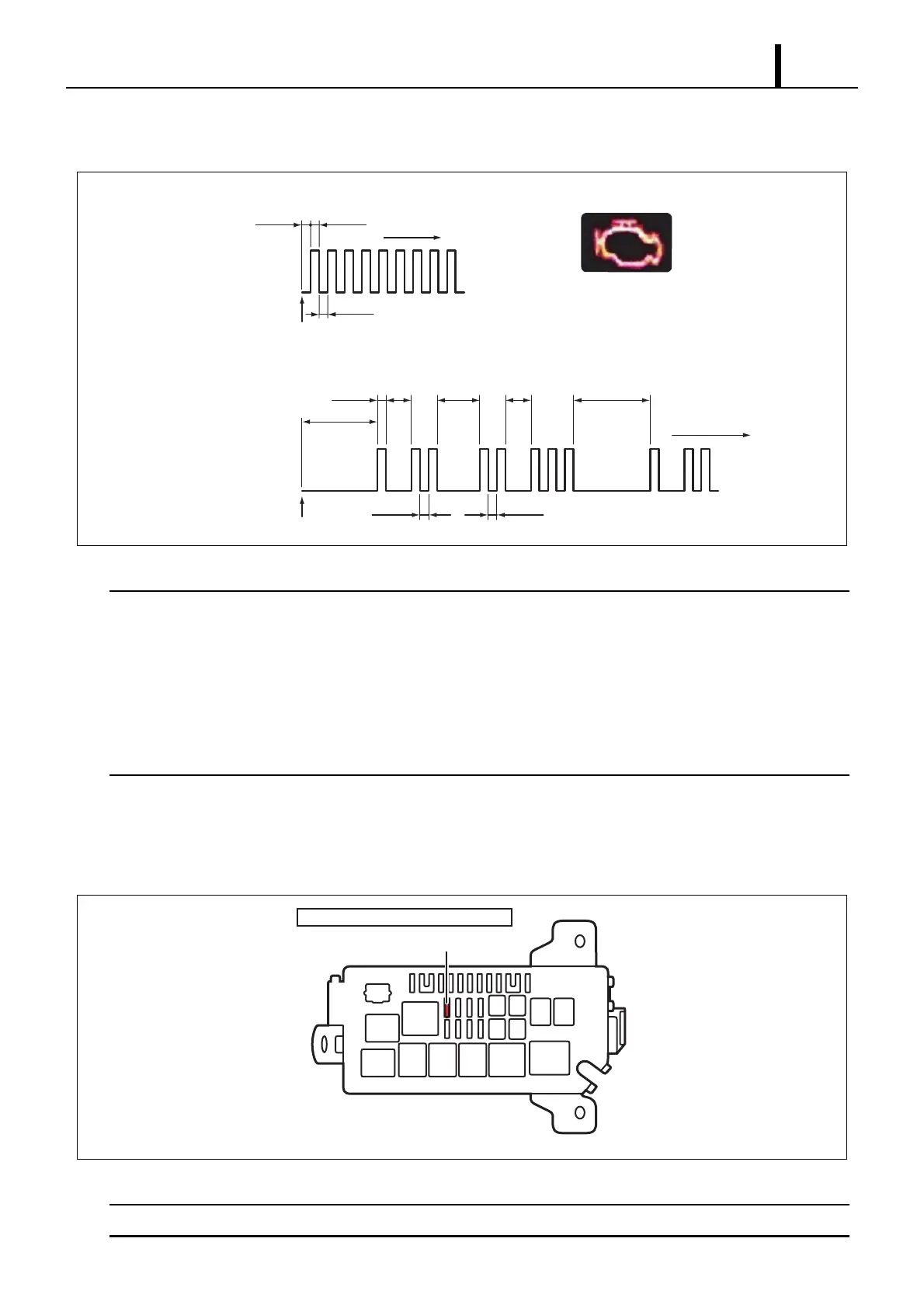

Reading DTCs 1
• Turn the ignition switch ON and count the number of times the MIL (Malfunction Indicator Light) blinks
< NOTE >
• If the MIL (Malfunction Indicator Light) does not output a code (the light does not blink), there may be an open circuit in
the TC terminal system or a failure in the engine ECU.
• If the malfunction indicator light is constantly ON, there may be a short (pinching) in the wiring harness or a failure in
the engine ECU.
• If meaningless DTCs are output, there may be a malfunction in the engine ECU.
• If the MIL (Malfunction Indicator Light) illuminates without outputting a DTC while the engine operates at a minimum
speed of 1000rpm, turn the ignition switch OFF once; then resume the inspection.
Reading DTCs 2
• If an abnormal DTC has been output, check it against the DTC list.
Erasing DTCs from memory
• Remove the ECD fuse (15A); after 15 seconds have elapsed, re-install the fuse.
< CAUTION >
After completing the inspection of the ECD system, erase the DTC memory, and make sure the normal code is output.
0.26sec 0.26sec
0.26sec
ON
OFF
ON
OFF
0.52sec 1.5sec 2.5sec 1.5sec 4.5sec
4.5sec
0.52sec 0.52sec
· Normal Operation
· Malfunction (Codes "12" and "23" are output.)
Jump Terminals TE1 and TC
Jump Terminals TE1 and TC
Repeat
Repeat Thereafter
Malfunction
Indicator Light
Q000918E
ECD Fuse (15A)
Engine Compartment Relay Block
Q000919E
To Next Page
