DENTSPLY Multimat 2 Touch+Press - Keypad; Muffel; Parts List

49
1 Parts List
1.1 Parts list
01. Compression hood
02. Cover
03. Cooling jacket
04. Support
05. Firing platform
06. Firing platform holder
07. Placement area
08. Control housing
09. Smart Media Card slot
10. USB slave interface
(PC interface)
11. RS 232 interface
((printer/PC interface)
12. RJ 45 interface
(PC network)/RJ12
(for ODS)
13. Touch Screen
14. Control
15. Fuses
16. Main power socket
17. VVacuum connection
18. Vacuum pump socket
19. Compressed air connection
20. Filter control (no picture)
21. Muffle
22. Compression socket
(no picture)
01
02
03
13
09
10
11
12
21
04
15
14
19
17
16
18
07
08
06
05
Numeric
keypad
Lift up
Power-LED
Recall
Clear
Lift down
Night Mode
Start/Stop
Quick cool
On/Off
Save
View of right-hand side View of left-hand side

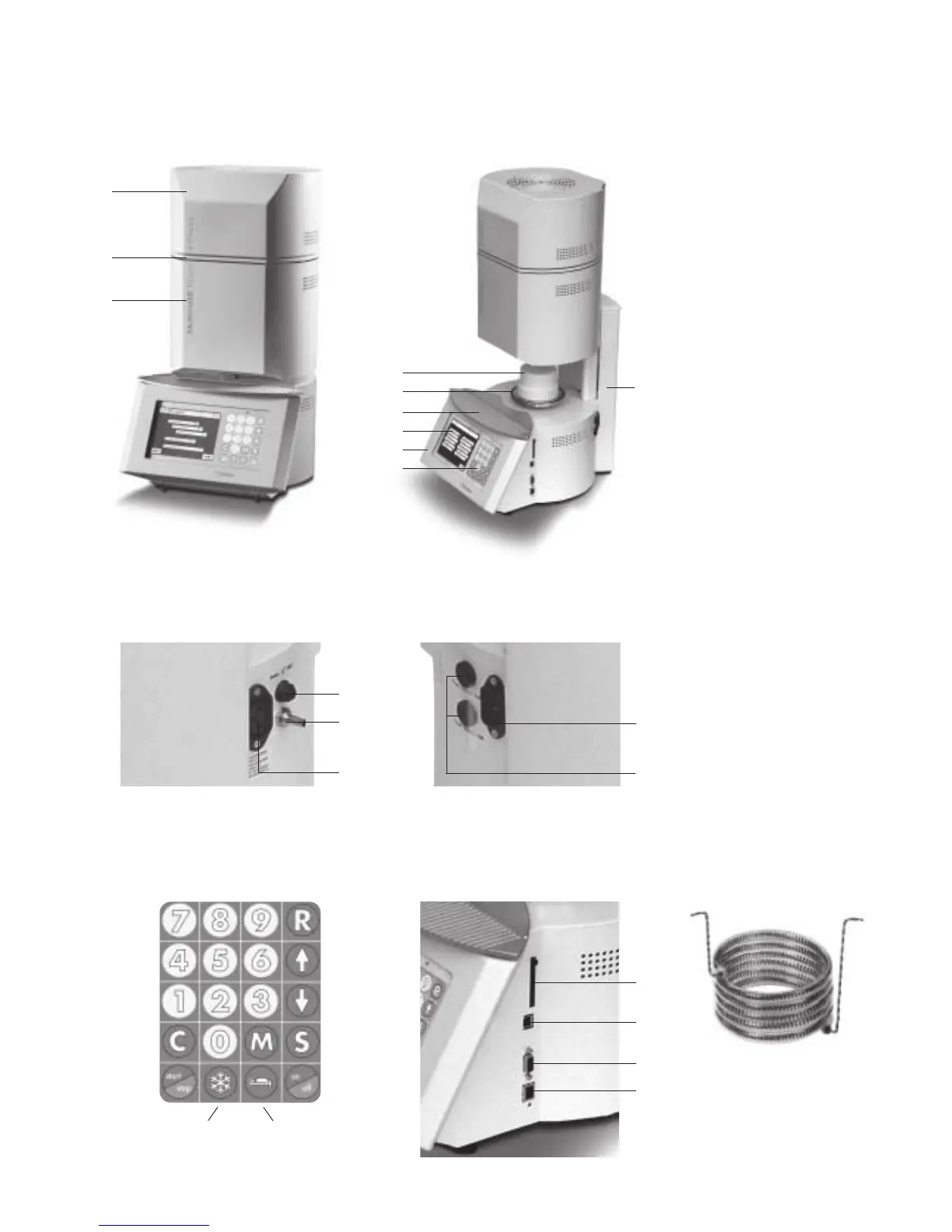

Photo 1: Parts list
Photo 3: Keypad
Photo 2: Muffle
