GASOLINE CHAIN SAW
EN
EN
STRUCTURE
1
2
3
4
7
17
9
5
6
14
17
15
11
10
12
13
16
18
8

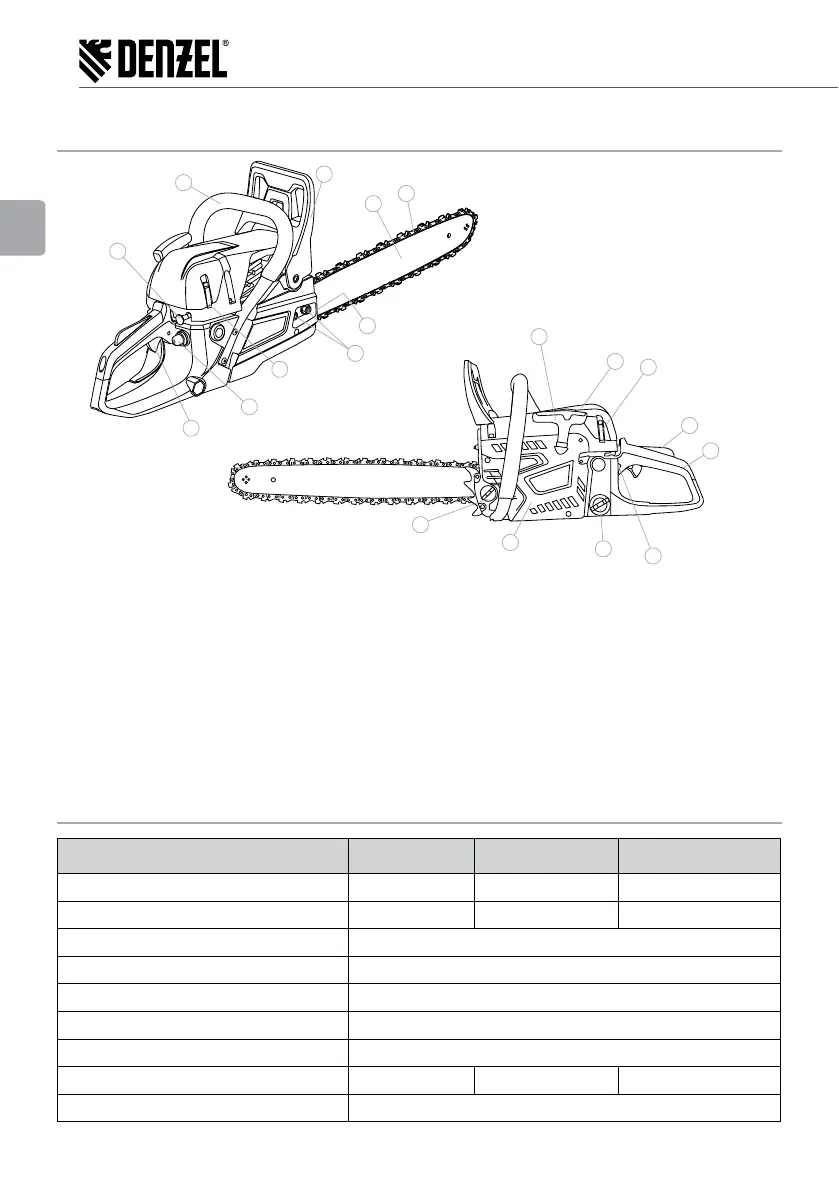

Fig. 3
1. Guide bar
2. Chain
3. Chain tensioner screw
4. Chain brake
5. Front handle
6. Starter handle
7. Air lter cover
8. Switch on/o
9. Oil tank cap
10. Starter cover
11. Fuel tank cap
12. Back handle
13. Throttle lock
14. Primer
15. Bar cover nut
16. Engine switch
17. Air lter cover lock
18. Air ap lever
TECHNICAL CHARACTERISTICS
Model/Article DS-4516/952367 DS-5218/952377 DS-5820/952387
Maximum power, kW 1,7 1,9 2,4
Engine displacement, cm
3
45 52 58
Engine type 2-stroke, air cooled
Tank volume for automatic chain lubrication, ml 250
Fuel tank volume, ml 600
Type of fuel gasoline mixture (regular gasoline) and oil for 2-stroke, air cooled
Primer Available
Bar length, cm 40 45 50
Chain pitch, inch 0,325
