116035-01J 21
AND COMpONENTS
P58-6 6" Section Double Wall Pipe,
Galvanized
P58-12 12" Section Double Wall Pipe,
Galvanized
P58-24 24" Section Double Wall Pipe,
Galvanized
P58-36 36" Section Double Wall Pipe,
Galvanized
P58-48 48" Section Double Wall Pipe,
Galvanized
PA58-712 Adjustable 7"-12" Section Double
Wall Pipe, Galvanized
E58-45 45° Elbow, Galvanized
E58-90 90° Elbow, Galvanized
VENTING INSTALLATION
Continued
VKG-58 Ground Floor Vent Kit, Galvanized
(Includes: 45° Elbow, 7"-12" Adjust-
able Pipe, Wall Firestop, Horizontal
Square Termination, 16 Screws)
VKGR-58 Ground Floor Vent Kit (Cottage
Rear Vent) (Includes: 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Square Termination,
12 Screws)
VKB-58
Basement Vent Kit, (Includes: 45°
Elbow, 7"-12" Adjustable Pipe, Wall
Firestop, Horizontal Square Termina-
tion, 4' Pipe, 90° Elbow, 20 Screws)
VKS-58 Snorkel Vent Kit, (Includes:
45° Elbow, 7"-12" Adjustable
Pipe, Wall Firestop, 36" Snorkel
Termination, 4' Pipe, 1' Pipe, 90°
Elbow, 26 Screws)
VKRT-58 Roof Vent Kit (Cottage Top Vent)
(Includes: 7"-12" Adjustable Pipe,
Flue Restrictor, Vertical High
Wind Termination, 2' Pipe, 4'
Pipe, Firestop, Storm Collar, Roof
Flashing [0/6 - 6/12], 26 Screws)
VKC-58 Corner Vent Kit, Galvanized
(Includes 45° Elbow, 7"-12"
Adjustable Pipe, Wall Firestop,
Horizontal Square Termination, 6"
Pipe, 90° Elbow, 18 Screws)
HHTK-58
High Wind Round Horizontal Termi-
nation Kit (Includes Round Termina-
tion, Wall Firestop, 45° Elbow)
HHT-58 High Wind Round Horizontal
Termination Kit, Galvanized
HTS-58 Horizontal Square Termination,
Galvanized
HTKS-58 Horizontal Square Termination Kit
(Includes: Square Termination,
Wall Firestop, 45° Elbow)
VT-58 Vertical Round Termination, Galv.
ST-58-14 14" Snorkel Termination, Galv.
ST-58-36 36" Snorkel Termination, Galv.
SC-58 Storm Collar, Galvanized
WF-58 Wall Firestop, Galvanized
RF-58-6 Roof Flashing - 0 to 6/12 Pitch,
Galvanized
RF-58-12 Roof Flashing - 6/12 to 12/12
Pitch, Galvanized
VR-58 Vertical Restrictor, Galvanized
S-58 Vinyl Siding Standoff, Galvanized
WS-58 Wall Strap
CS-58 Cathedral Ceiling Support
FP-58 Firestop Plate
SF-58 Stucco Flashing - For use with
HTS-58
RF-58 Flat Roof Flashing
OSR58-30
30° Offset Return

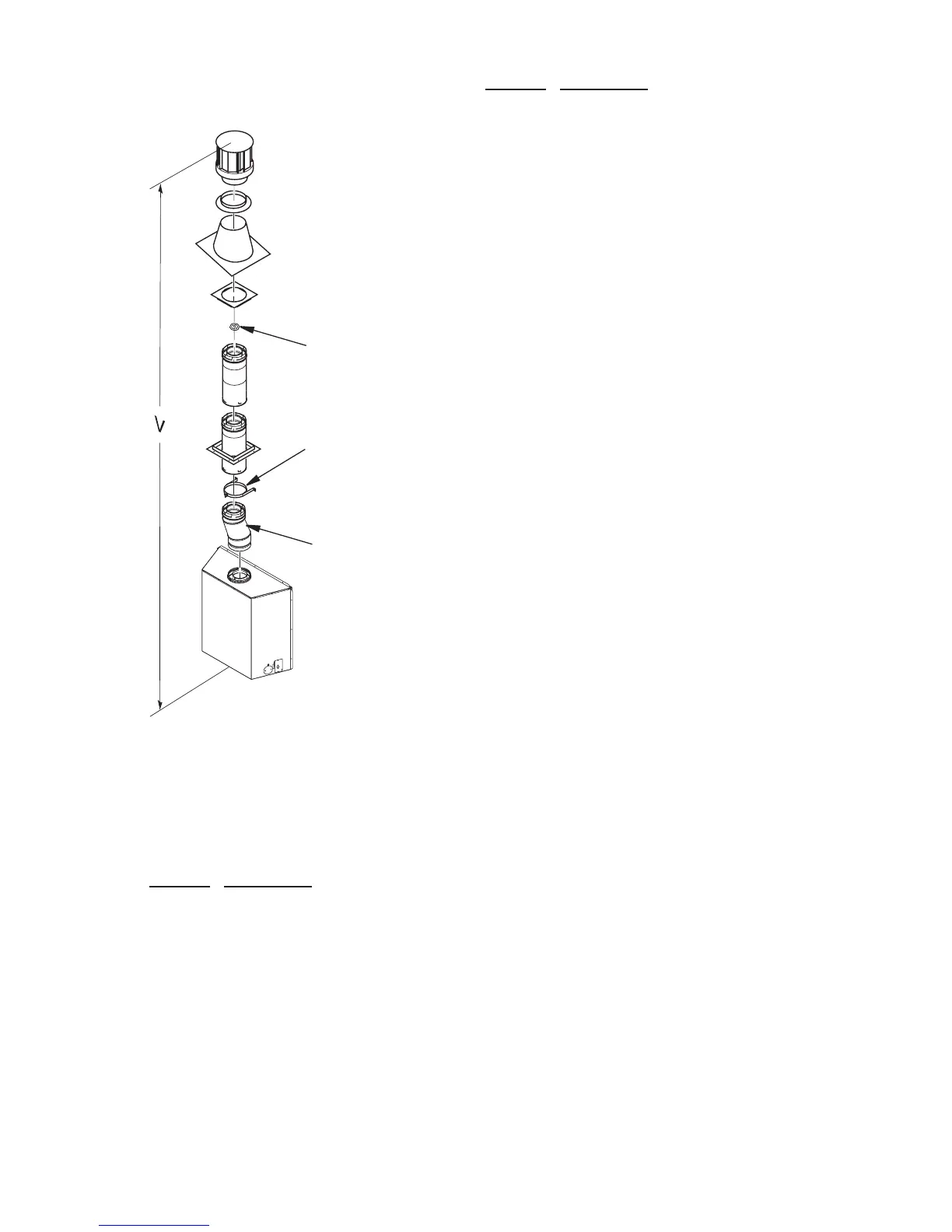

Figure 34 - Vertical Venting
Conguration with No Horizontal Run
(Model (V)CD36T with Vertical Round High
Wind Termi
nation)
V = 40' Max.
Note: Install a
VR-58 vertical
restrictor ring
into inner pipe
section prior to
attaching vent
termination cap.
Note: Install an
OSR58-30 30°
offset return
with WS-58 wall
strap supports
as necessary
to maintain 1"
Clearance to all
horizontal wood
frame members.
WS-5 8
