pan material (see Figure 23, page 15).
4. Place just enough to cover the entire sur-
face and leave about a 1/2" gap under the
lower grate members to allow air to ow
(see Figure 24).
INSTALLATION
Continued

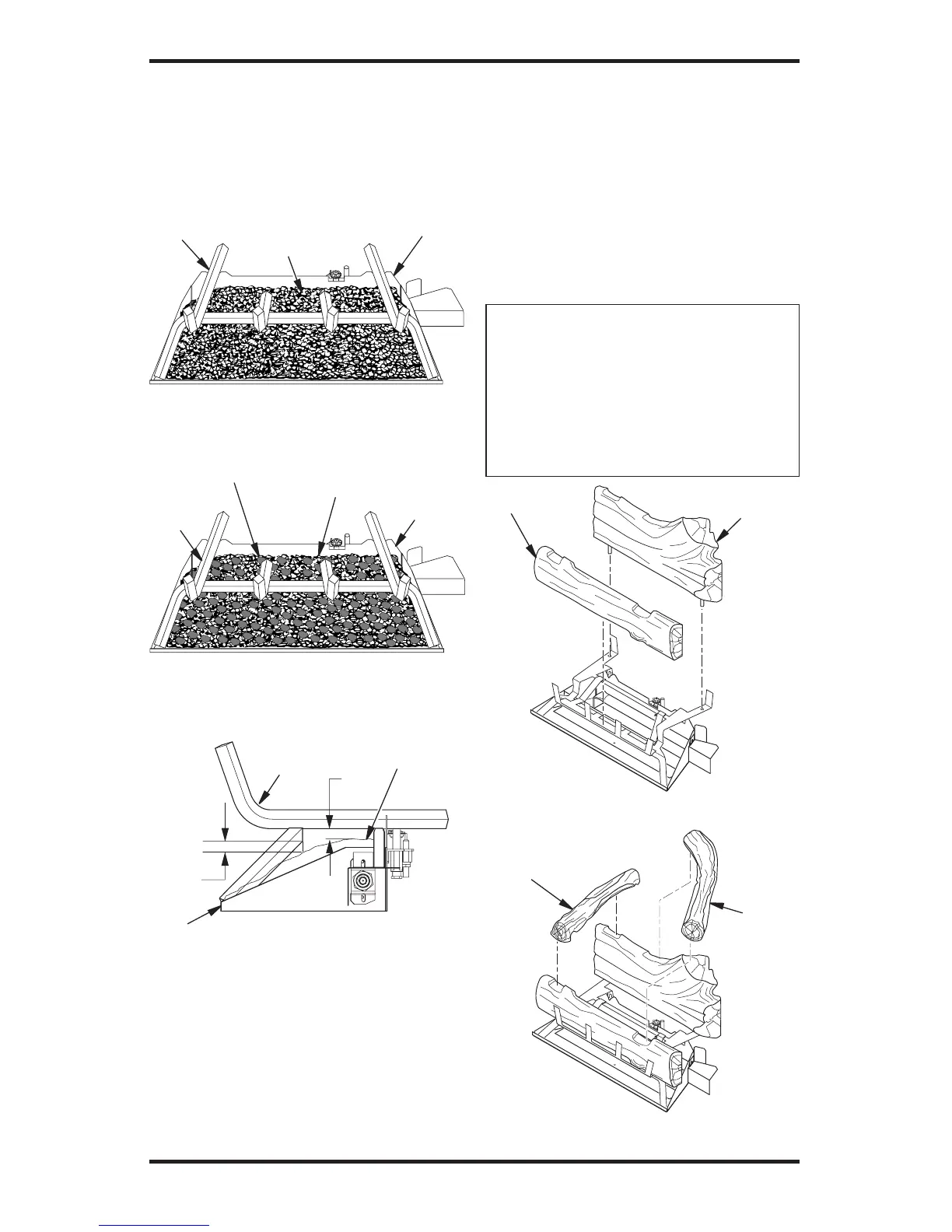

Figure 22 - Fill Entire Burner Pan with
Vermiculite (P325/VP325 Models Shown)
Vermiculite
(Pan Material)
Burner Pan
Grate
Figure 23 - Ember Material on Surface of
Pan Material (Vermiculite) (P325/VP325
Models Shown)
0.5"
0.5"
Figure 24 - Pan and Ember Material
Clearances (P325/VP325 Models Shown)
Ember Material
Burner
Pan
Vermiculite (Pan
Material)
Grate
Grate
Burner Pan
Pan and Ember
Material
LOG PLACEMENT FOR P324/VP324
MODELS
1. Place front log onto front of grate sliding
log all the way forward against grate n-
gers (see Figure 25).
2. Insert pegs on bottom of rear log into holes
in rear of grate (see Figure 25).
3. Place top right log into notches on left side
of front and rear (see Figure 26).
4. Place top left log into notches on right side
of front and rear (see Figure 26).
NOTICE: Do not put lava rock
insidetheburnerpanoraround
theairmixertting.Placinglava
rock inside the burner pan or
blockingtheopeningsofthepro-
pane/LPair-mixer could cause
performanceproblems.
Figure 25 - Installing Front and Rear Logs
Front Log
Rear Log
Figure 26 - Installing Top Left and
Right Logs
Top Left
Log
Top
Right
Log
